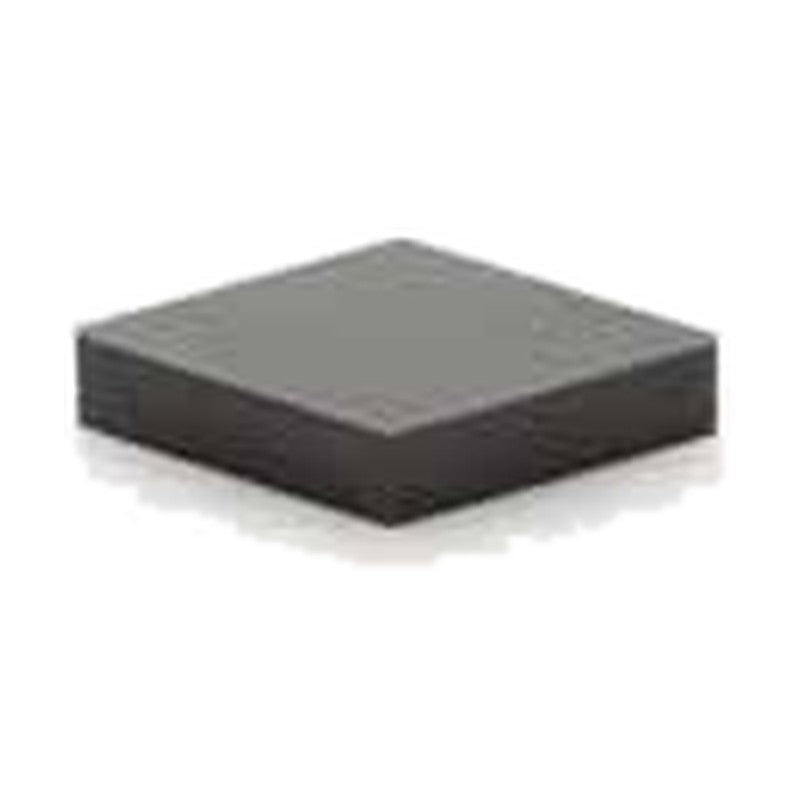

Korloy Ceramic Turning Insert DNGN

Korloy Ceramic Turning Insert DNGN

55° rhombic ceramic turning insert (ISO DNGN), negative (0° clearance), without hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT20, CAT30, CAT50, CAT90, CA20, CA30, CSN20, CSN30, CSN40, CSN80, CW40, CW80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys
  • SiC whisker-reinforced grades for nickel- and cobalt-based alloys

Specifications

Material class Ceramic
Units mm
DNGN150408 CAT10 ASA: DNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
DNGN150408 CSN40 ASA: DNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
DNGN150408 CW40 ASA: DNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
DNGN150408 CW80 ASA: DNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
DNGN150412 CAT10 ASA: DNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
DNGN150412 CAT20 ASA: DNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
DNGN150412 CSN20 ASA: DNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
DNGN150412 CSN40 ASA: DNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
DNGN150412 CW40 ASA: DNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
DNGN150412 CW80 ASA: DNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
DNGN150416 CW40 ASA: DNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
DNGN150416 CW80 ASA: DNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
DNGN150608 CAT10 ASA: DNGN 442 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
DNGN150608 CAT90 ASA: DNGN 442 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.8 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGN150608 CSN40 ASA: DNGN 442 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGN150608 CSN80 ASA: DNGN 442 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
DNGN150612 CAT10 ASA: DNGN 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
DNGN150612 CAT90 ASA: DNGN 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGN150612 CSN40 ASA: DNGN 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGN150612 CSN80 ASA: DNGN 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
DNGN150704 CAT10 ASA: DNGN 451 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
DNGN150704 CAT30 ASA: DNGN 451 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGN150708 CAT10 ASA: DNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
DNGN150708 CAT30 ASA: DNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGN150708 CAT50 ASA: DNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGN150708 CAT90 ASA: DNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGN150708 CA20 ASA: DNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGN150708 CA30 ASA: DNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGN150708 CSN20 ASA: DNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
DNGN150708 CSN30 ASA: DNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGN150708 CSN80 ASA: DNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
DNGN150712 CAT10 ASA: DNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
DNGN150712 CAT30 ASA: DNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGN150712 CAT50 ASA: DNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGN150712 CAT90 ASA: DNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGN150712 CA20 ASA: DNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGN150712 CA30 ASA: DNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGN150712 CSN20 ASA: DNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
DNGN150712 CSN30 ASA: DNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGN150712 CSN40 ASA: DNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGN150712 CSN80 ASA: DNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
DNGN150716 CAT10 ASA: DNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
DNGN150716 CAT30 ASA: DNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGN150716 CA20 ASA: DNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGN150716 CSN20 ASA: DNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
DNGN150716 CSN30 ASA: DNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGN150716 CSN40 ASA: DNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGN150716 CSN80 ASA: DNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
