Korloy Ceramic Turning Insert DNMA

Korloy Ceramic Turning Insert DNMA

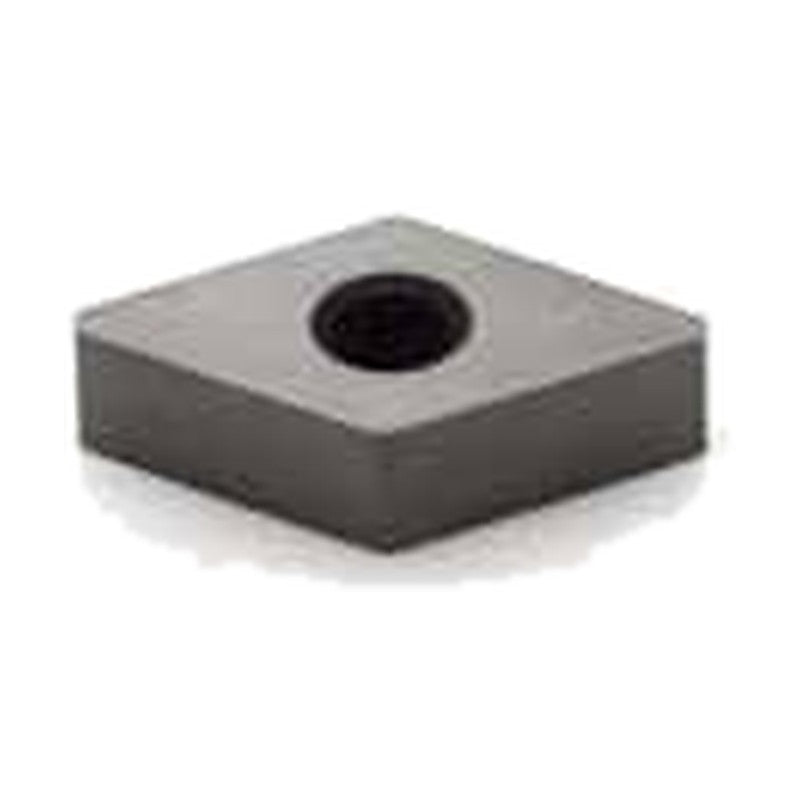

55° rhombic ceramic turning insert (ISO DNMA), negative (0° clearance), with hole, for cast iron.

Key features

  • Grades offered: CSN30, CSN40
  • Si3N4 grades for roughing and high-speed machining of cast iron

Specifications

Material class Ceramic
Units mm
DNMA150612 CSN30 ASA: DNMA 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNMA150612 CSN40 ASA: DNMA 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNMA150616 CSN40 ASA: DNMA 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert DNMA

Brand Korloy·Turning Inserts

Available part numbers (3)

DNMA150612 CSN30, DNMA150612 CSN40, DNMA150616 CSN40

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DNMA150612 CSN30ASA: DNMA 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNMA150612 CSN40ASA: DNMA 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNMA150616 CSN40ASA: DNMA 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
