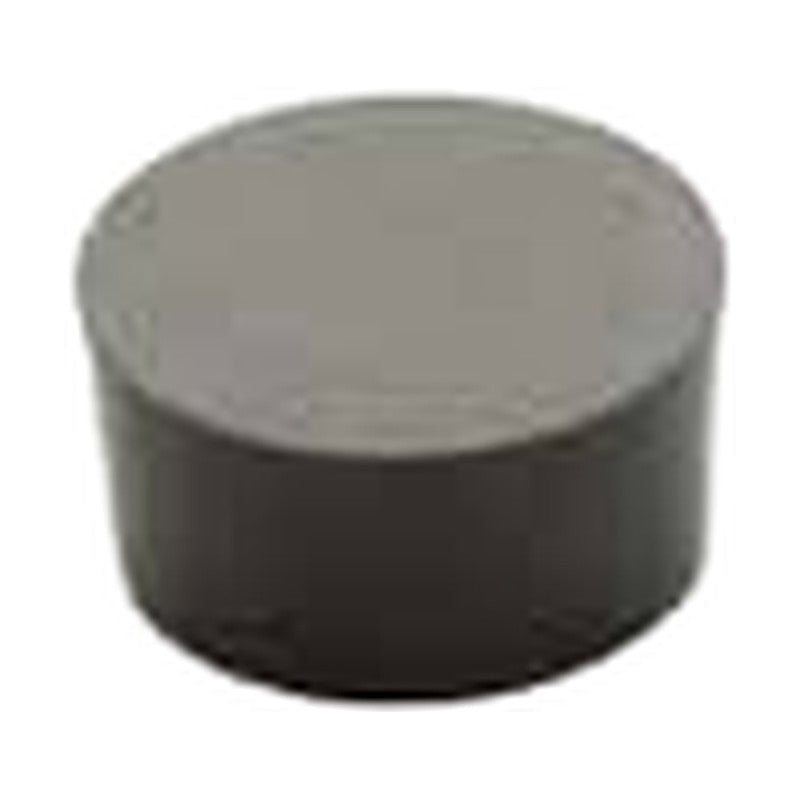

Korloy Ceramic Turning Insert RBGN

Korloy Ceramic Turning Insert RBGN

Round ceramic turning insert (ISO RBGN), positive 5° clearance, without hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT30, CAT50, CSN30, CSN40, CSN50, CSN80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
RBGN060300 CAT30 ASA: RBGN 220 | D (mm): 6.35 | S (mm): 3.18 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGN060400 CAT30 ASA: RBGN 230 | D (mm): 6.35 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGN090300 CAT10 ASA: RBGN 320 | D (mm): 9.52 | S (mm): 3.18 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RBGN090400 CAT10 ASA: RBGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RBGN120400 CAT10 ASA: RBGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RBGN120400 CAT30 ASA: RBGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGN120400 CAT50 ASA: RBGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGN120400 CSN40 ASA: RBGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
RBGN120600 CAT10 ASA: RBGN 440 | D (mm): 12.70 | S (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RBGN120700 CAT10 ASA: RBGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RBGN120700 CAT30 ASA: RBGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGN120700 CSN30 ASA: RBGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
RBGN120700 CSN40 ASA: RBGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
RBGN120700 CSN80 ASA: RBGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RBGN0604MO CAT30 D (mm): 6.00 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGN0804MO CAT30 D (mm): 8.00 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGN1007MO CAT10 D (mm): 10.00 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RBGN1007MO CSN50 D (mm): 10.00 | S (mm): 7.94 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert RBGN

Brand Korloy·Turning Inserts

Available part numbers (18)

RBGN060300 CAT30, RBGN060400 CAT30, RBGN090300 CAT10, RBGN090400 CAT10, RBGN120400 CAT10, RBGN120400 CAT30, RBGN120400 CAT50, RBGN120400 CSN40, RBGN120600 CAT10, RBGN120700 CAT10 + 8 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
