Korloy Ceramic Turning Insert RCGN

Korloy Ceramic Turning Insert RCGN

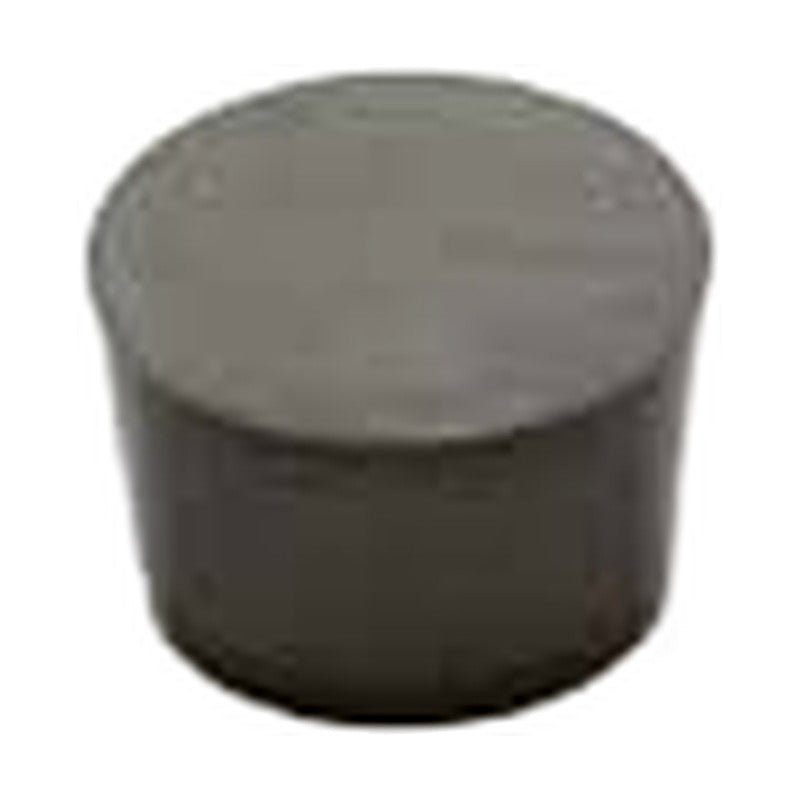

Round ceramic turning insert (ISO RCGN), positive 7° clearance, without hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT30, CAT50, CA20, CSN20, CSN80, CSN100
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
RCGN060400 CAT10 D (mm): 6.35 | S (mm): 4.76 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN060400 CAT30 D (mm): 6.35 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN060400 CSN80 D (mm): 6.35 | S (mm): 4.76 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN060600 CAT10 D (mm): 6.35 | S (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN060600 CAT30 D (mm): 6.35 | S (mm): 6.35 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN060600 CAT50 D (mm): 6.35 | S (mm): 6.35 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN060600 CSN20 D (mm): 6.35 | S (mm): 6.35 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RCGN060600 CSN80 D (mm): 6.35 | S (mm): 6.35 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN060700 CAT10 D (mm): 6.35 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN060700 CAT30 D (mm): 6.35 | S (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN060700 CAT50 D (mm): 6.35 | S (mm): 7.94 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN060700 CA20 D (mm): 6.35 | S (mm): 7.94 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RCGN060700 CSN80 D (mm): 6.35 | S (mm): 7.94 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN070400 CAT30 D (mm): 7.94 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN090700 CAT10 D (mm): 9.52 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN090700 CAT30 D (mm): 9.52 | S (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN090700 CAT50 D (mm): 9.52 | S (mm): 7.94 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN090700 CSN20 D (mm): 9.52 | S (mm): 7.94 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RCGN090700 CSN80 D (mm): 9.52 | S (mm): 7.94 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN090700 CSN100 D (mm): 9.52 | S (mm): 7.94 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
RCGN120700 CAT10 D (mm): 12.70 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN120700 CAT30 D (mm): 12.70 | S (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN120700 CAT50 D (mm): 12.70 | S (mm): 7.94 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN120700 CA20 D (mm): 12.70 | S (mm): 7.94 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RCGN120700 CSN20 D (mm): 12.70 | S (mm): 7.94 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RCGN120700 CSN80 D (mm): 12.70 | S (mm): 7.94 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN120700 CSN100 D (mm): 12.70 | S (mm): 7.94 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
RCGN151000 CAT10 D (mm): 15.87 | S (mm): 10.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN151000 CAT30 D (mm): 15.87 | S (mm): 10.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN151000 CAT50 D (mm): 15.87 | S (mm): 10.00 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN151000 CA20 D (mm): 15.87 | S (mm): 10.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RCGN151000 CSN20 D (mm): 15.87 | S (mm): 10.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RCGN151000 CSN80 D (mm): 15.87 | S (mm): 10.00 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN191000 CAT10 D (mm): 19.05 | S (mm): 10.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN191000 CAT30 D (mm): 19.05 | S (mm): 10.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN191000 CAT50 D (mm): 19.05 | S (mm): 10.00 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN191000 CA20 D (mm): 19.05 | S (mm): 10.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RCGN191000 CSN20 D (mm): 19.05 | S (mm): 10.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RCGN191000 CSN80 D (mm): 19.05 | S (mm): 10.00 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN251200 CAT10 D (mm): 25.40 | S (mm): 12.70 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN251200 CAT30 D (mm): 25.40 | S (mm): 12.70 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN251200 CAT50 D (mm): 25.40 | S (mm): 12.70 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN251200 CA20 D (mm): 25.40 | S (mm): 12.70 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RCGN251200 CSN20 D (mm): 25.40 | S (mm): 12.70 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RCGN251200 CSN80 D (mm): 25.40 | S (mm): 12.70 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
Turning InsertsKorloy
45 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert RCGN

Brand Korloy·Turning Inserts

Available part numbers (45)

RCGN060400 CAT10, RCGN060400 CAT30, RCGN060400 CSN80, RCGN060600 CAT10, RCGN060600 CAT30, RCGN060600 CAT50, RCGN060600 CSN20, RCGN060600 CSN80, RCGN060700 CAT10, RCGN060700 CAT30 + 35 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RCGN060400 CAT10D (mm): 6.35 | S (mm): 4.76 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN060400 CAT30D (mm): 6.35 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN060400 CSN80D (mm): 6.35 | S (mm): 4.76 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN060600 CAT10D (mm): 6.35 | S (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN060600 CAT30D (mm): 6.35 | S (mm): 6.35 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN060600 CAT50D (mm): 6.35 | S (mm): 6.35 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN060600 CSN20D (mm): 6.35 | S (mm): 6.35 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RCGN060600 CSN80D (mm): 6.35 | S (mm): 6.35 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN060700 CAT10D (mm): 6.35 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN060700 CAT30D (mm): 6.35 | S (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN060700 CAT50D (mm): 6.35 | S (mm): 7.94 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN060700 CA20D (mm): 6.35 | S (mm): 7.94 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RCGN060700 CSN80D (mm): 6.35 | S (mm): 7.94 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN070400 CAT30D (mm): 7.94 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN090700 CAT10D (mm): 9.52 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN090700 CAT30D (mm): 9.52 | S (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN090700 CAT50D (mm): 9.52 | S (mm): 7.94 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN090700 CSN20D (mm): 9.52 | S (mm): 7.94 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RCGN090700 CSN80D (mm): 9.52 | S (mm): 7.94 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN090700 CSN100D (mm): 9.52 | S (mm): 7.94 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
RCGN120700 CAT10D (mm): 12.70 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN120700 CAT30D (mm): 12.70 | S (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN120700 CAT50D (mm): 12.70 | S (mm): 7.94 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN120700 CA20D (mm): 12.70 | S (mm): 7.94 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RCGN120700 CSN20D (mm): 12.70 | S (mm): 7.94 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RCGN120700 CSN80D (mm): 12.70 | S (mm): 7.94 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN120700 CSN100D (mm): 12.70 | S (mm): 7.94 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
RCGN151000 CAT10D (mm): 15.87 | S (mm): 10.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN151000 CAT30D (mm): 15.87 | S (mm): 10.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN151000 CAT50D (mm): 15.87 | S (mm): 10.00 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN151000 CA20D (mm): 15.87 | S (mm): 10.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RCGN151000 CSN20D (mm): 15.87 | S (mm): 10.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RCGN151000 CSN80D (mm): 15.87 | S (mm): 10.00 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN191000 CAT10D (mm): 19.05 | S (mm): 10.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN191000 CAT30D (mm): 19.05 | S (mm): 10.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN191000 CAT50D (mm): 19.05 | S (mm): 10.00 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN191000 CA20D (mm): 19.05 | S (mm): 10.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RCGN191000 CSN20D (mm): 19.05 | S (mm): 10.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RCGN191000 CSN80D (mm): 19.05 | S (mm): 10.00 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RCGN251200 CAT10D (mm): 25.40 | S (mm): 12.70 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RCGN251200 CAT30D (mm): 25.40 | S (mm): 12.70 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN251200 CAT50D (mm): 25.40 | S (mm): 12.70 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RCGN251200 CA20D (mm): 25.40 | S (mm): 12.70 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RCGN251200 CSN20D (mm): 25.40 | S (mm): 12.70 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RCGN251200 CSN80D (mm): 25.40 | S (mm): 12.70 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
