Korloy Ceramic Turning Insert RNGN

Korloy Ceramic Turning Insert RNGN

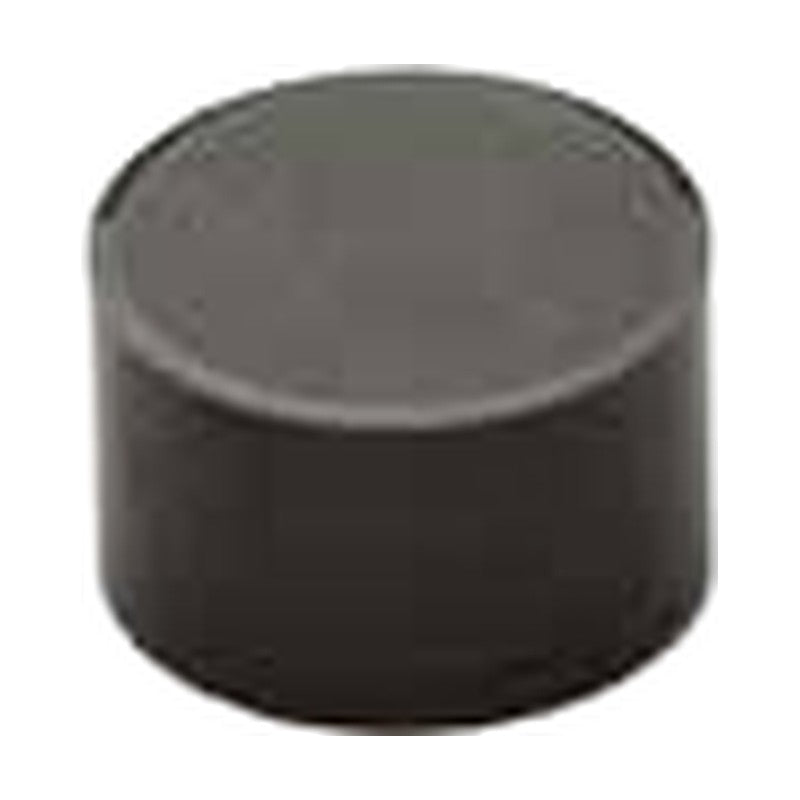

Round ceramic turning insert (ISO RNGN), negative (0° clearance), without hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT20, CAT30, CAT50, CAT90, CAT30C, CA20, CA30, CSN20, CSN30, CSN40, CSN80, CW40, CW80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • TiN-coated mixed ceramic grades for finishing hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
RNGN060300 CAT30 ASA: RNGN 220 | D (mm): 6.35 | S (mm): 3.18 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGN060400 CAT10 ASA: RNGN 230 | D (mm): 6.35 | S (mm): 4.76 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGN060400 CAT50 ASA: RNGN 230 | D (mm): 6.35 | S (mm): 4.76 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGN090300 CAT10 ASA: RNGN 320 | D (mm): 9.52 | S (mm): 3.18 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGN090300 CAT50 ASA: RNGN 320 | D (mm): 9.52 | S (mm): 3.18 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGN090300 CSN20 ASA: RNGN 320 | D (mm): 9.52 | S (mm): 3.18 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RNGN090300 CSN30 ASA: RNGN 320 | D (mm): 9.52 | S (mm): 3.18 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
RNGN090400 CAT10 ASA: RNGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGN090400 CAT20 ASA: RNGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
RNGN090400 CAT30 ASA: RNGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGN090400 CAT50 ASA: RNGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGN090400 CSN20 ASA: RNGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RNGN090400 CSN80 ASA: RNGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RNGN090400 CW40 ASA: RNGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RNGN090400 CW80 ASA: RNGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RNGN120300 CSN20 ASA: RNGN 420 | D (mm): 12.70 | S (mm): 3.18 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RNGN120300 CSN80 ASA: RNGN 420 | D (mm): 12.70 | S (mm): 3.18 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RNGN120400 CAT10 ASA: RNGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
RNGN120400 CAT20 ASA: RNGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
RNGN120400 CAT30 ASA: RNGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
RNGN120400 CAT50 ASA: RNGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGN120400 CA20 ASA: RNGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RNGN120400 CSN20 ASA: RNGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RNGN120400 CSN30 ASA: RNGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
RNGN120400 CSN40 ASA: RNGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
RNGN120400 CSN80 ASA: RNGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RNGN120400 CW40 ASA: RNGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RNGN120400 CW80 ASA: RNGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RNGN120700 CAT10 ASA: RNGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
RNGN120700 CAT30 ASA: RNGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
RNGN120700 CAT50 ASA: RNGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGN120700 CAT90 ASA: RNGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGN120700 CAT30C ASA: RNGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CAT30C | Material: Al2O3+TiCN, TiN coated | Stock: Yes (from material)
RNGN120700 CA20 ASA: RNGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RNGN120700 CA30 ASA: RNGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RNGN120700 CSN20 ASA: RNGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RNGN120700 CSN30 ASA: RNGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
RNGN120700 CSN40 ASA: RNGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
RNGN120700 CSN80 ASA: RNGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RNGN120700 CW40 ASA: RNGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RNGN120700 CW80 ASA: RNGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RNGN150700 CAT10 ASA: RNGN 550 | D (mm): 15.87 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGN150700 CSN20 ASA: RNGN 550 | D (mm): 15.87 | S (mm): 7.94 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RNGN150700 CSN30 ASA: RNGN 550 | D (mm): 15.87 | S (mm): 7.94 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
RNGN190600 CAT10 ASA: RNGN 640 | D (mm): 19.05 | S (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGN190600 CAT30 ASA: RNGN 640 | D (mm): 19.05 | S (mm): 6.35 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGN190600 CSN20 ASA: RNGN 640 | D (mm): 19.05 | S (mm): 6.35 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RNGN190600 CSN80 ASA: RNGN 640 | D (mm): 19.05 | S (mm): 6.35 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RNGN190700 CAT10 ASA: RNGN 650 | D (mm): 19.05 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGN190700 CAT30 ASA: RNGN 650 | D (mm): 19.05 | S (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGN190700 CAT50 ASA: RNGN 650 | D (mm): 19.05 | S (mm): 7.94 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGN190700 CA20 ASA: RNGN 650 | D (mm): 19.05 | S (mm): 7.94 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RNGN190700 CSN30 ASA: RNGN 650 | D (mm): 19.05 | S (mm): 7.94 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
RNGN190700 CSN80 ASA: RNGN 650 | D (mm): 19.05 | S (mm): 7.94 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RNGN190700 CW40 ASA: RNGN 650 | D (mm): 19.05 | S (mm): 7.94 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RNGN190700 CW80 ASA: RNGN 650 | D (mm): 19.05 | S (mm): 7.94 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RNGN250700 CAT10 ASA: RNGN 850 | D (mm): 25.40 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGN250700 CAT50 ASA: RNGN 850 | D (mm): 25.40 | S (mm): 7.94 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGN250700 CAT90 ASA: RNGN 850 | D (mm): 25.40 | S (mm): 7.94 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGN250700 CA20 ASA: RNGN 850 | D (mm): 25.40 | S (mm): 7.94 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RNGN250700 CA30 ASA: RNGN 850 | D (mm): 25.40 | S (mm): 7.94 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RNGN250700 CSN20 ASA: RNGN 850 | D (mm): 25.40 | S (mm): 7.94 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RNGN250700 CSN30 ASA: RNGN 850 | D (mm): 25.40 | S (mm): 7.94 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
RNGN320900 CAT10 ASA: RNGN 106 | D (mm): 31.75 | S (mm): 9.52 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGN0807MO CAT10 D (mm): 8.00 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGN1007MO CAT10 D (mm): 10.00 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGN1207MO CAT10 D (mm): 12.00 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
Turning InsertsKorloy
67 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert RNGN

Brand Korloy·Turning Inserts

Available part numbers (67)

RNGN060300 CAT30, RNGN060400 CAT10, RNGN060400 CAT50, RNGN090300 CAT10, RNGN090300 CAT50, RNGN090300 CSN20, RNGN090300 CSN30, RNGN090400 CAT10, RNGN090400 CAT20, RNGN090400 CAT30 + 57 more — see full table ↓
