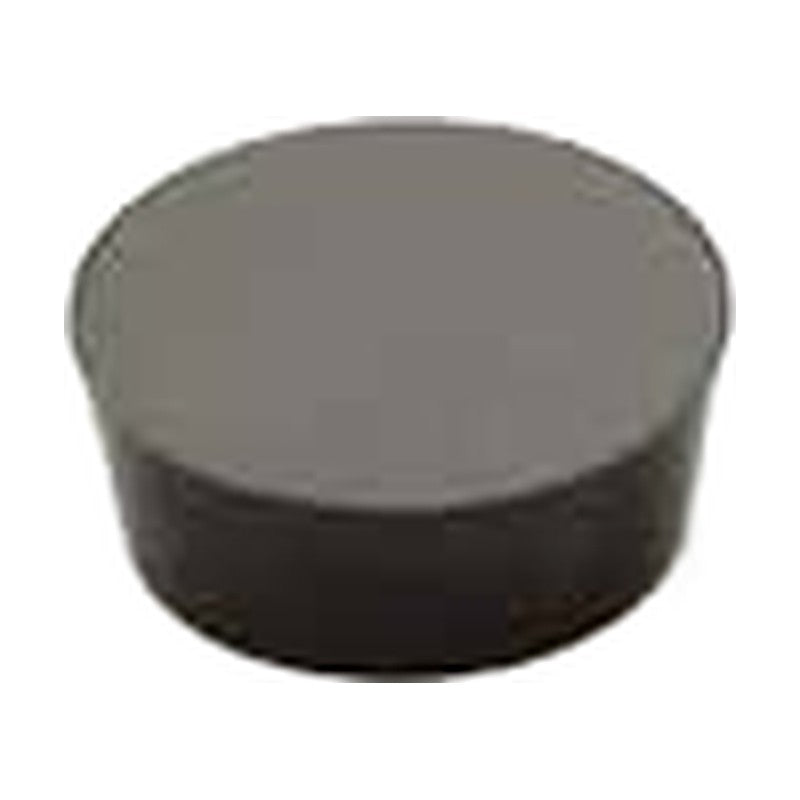

Korloy Ceramic Turning Insert RPGN

Korloy Ceramic Turning Insert RPGN

Round ceramic turning insert (ISO RPGN), positive 11° clearance, without hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT30, CAT50, CSN40, CSN80, CW40, CW80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys
  • SiC whisker-reinforced grades for nickel- and cobalt-based alloys

Specifications

Material class Ceramic
Units mm
RPGN090300 CAT10 ASA: RPGN 320 | D (mm): 9.52 | S (mm): 3.18 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RPGN090300 CAT30 ASA: RPGN 320 | D (mm): 9.52 | S (mm): 3.18 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RPGN090300 CSN80 ASA: RPGN 320 | D (mm): 9.52 | S (mm): 3.18 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RPGN090400 CAT10 ASA: RPGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RPGN090400 CAT30 ASA: RPGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RPGN090400 CAT50 ASA: RPGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RPGN120400 CAT10 ASA: RPGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RPGN120400 CAT30 ASA: RPGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RPGN120400 CSN40 ASA: RPGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
RPGN120400 CSN80 ASA: RPGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RPGN120400 CW40 ASA: RPGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RPGN120400 CW80 ASA: RPGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RPGN120700 CAT10 ASA: RPGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RPGN120700 CAT30 ASA: RPGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RPGN120700 CSN80 ASA: RPGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RPGN190700 CAT30 ASA: RPGN 650 | D (mm): 19.05 | S (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
Turning InsertsKorloy
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert RPGN

Brand Korloy·Turning Inserts

Available part numbers (16)

RPGN090300 CAT10, RPGN090300 CAT30, RPGN090300 CSN80, RPGN090400 CAT10, RPGN090400 CAT30, RPGN090400 CAT50, RPGN120400 CAT10, RPGN120400 CAT30, RPGN120400 CSN40, RPGN120400 CSN80 + 6 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RPGN090300 CAT10ASA: RPGN 320 | D (mm): 9.52 | S (mm): 3.18 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RPGN090300 CAT30ASA: RPGN 320 | D (mm): 9.52 | S (mm): 3.18 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RPGN090300 CSN80ASA: RPGN 320 | D (mm): 9.52 | S (mm): 3.18 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RPGN090400 CAT10ASA: RPGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RPGN090400 CAT30ASA: RPGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RPGN090400 CAT50ASA: RPGN 330 | D (mm): 9.52 | S (mm): 4.76 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RPGN120400 CAT10ASA: RPGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RPGN120400 CAT30ASA: RPGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RPGN120400 CSN40ASA: RPGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
RPGN120400 CSN80ASA: RPGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RPGN120400 CW40ASA: RPGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RPGN120400 CW80ASA: RPGN 430 | D (mm): 12.70 | S (mm): 4.76 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RPGN120700 CAT10ASA: RPGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RPGN120700 CAT30ASA: RPGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RPGN120700 CSN80ASA: RPGN 450 | D (mm): 12.70 | S (mm): 7.94 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RPGN190700 CAT30ASA: RPGN 650 | D (mm): 19.05 | S (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
