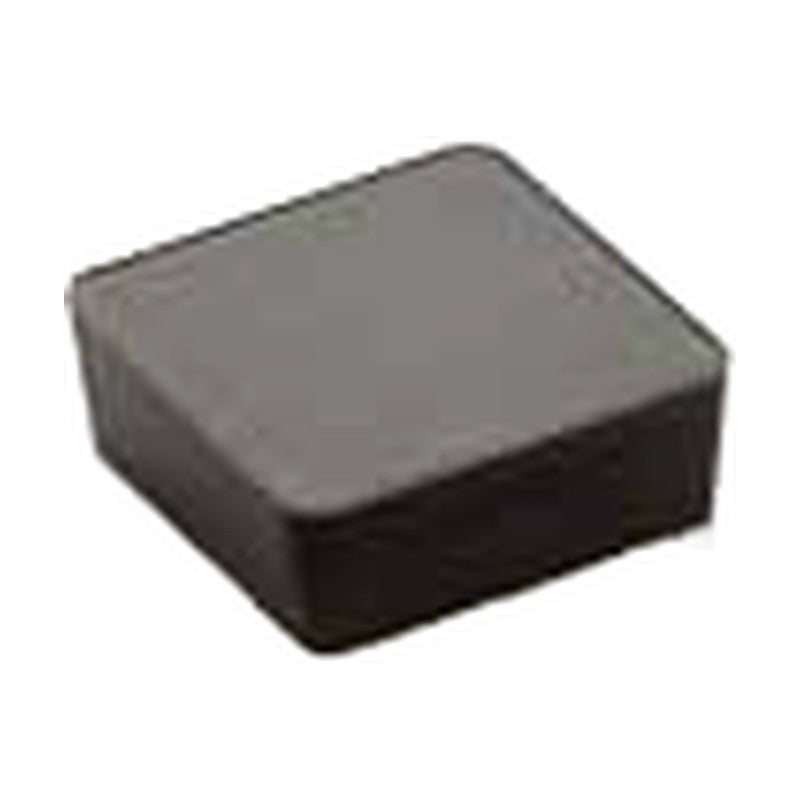

Korloy Ceramic Turning Insert SCGN

Square ceramic turning insert (ISO SCGN), positive 7° clearance, without hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

Grades offered: CAT10, CAT30, CA30, CSN30, CSN40, CSN60, CSN80
Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
Si3N4 grades for roughing and high-speed machining of cast iron
SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class	Ceramic
Units	mm

SCGN090412 CAT10		ASA: SCGN 333 \| IC (mm): 9.52 \| S (mm): 4.76 \| RE (mm): 1.2 \| Grade: CAT10 \| Material: Al2O3+TiC \| Stock: Yes (from material)
SCGN090412 CSN40		ASA: SCGN 333 \| IC (mm): 9.52 \| S (mm): 4.76 \| RE (mm): 1.2 \| Grade: CSN40 \| Material: Si3N4 \| Stock: Yes (from material)
SCGN090416 CAT10		ASA: SCGN 334 \| IC (mm): 9.52 \| S (mm): 4.76 \| RE (mm): 1.6 \| Grade: CAT10 \| Material: Al2O3+TiC \| Stock: Yes (from material)
SCGN120404 CAT30		ASA: SCGN 431 \| IC (mm): 12.70 \| S (mm): 4.76 \| RE (mm): 0.4 \| Grade: CAT30 \| Material: Al2O3+TiCN \| Stock: Yes (from material)
SCGN120408 CAT10		ASA: SCGN 432 \| IC (mm): 12.70 \| S (mm): 4.76 \| RE (mm): 0.8 \| Grade: CAT10 \| Material: Al2O3+TiC \| Stock: Yes (from material)
SCGN120408 CAT30		ASA: SCGN 432 \| IC (mm): 12.70 \| S (mm): 4.76 \| RE (mm): 0.8 \| Grade: CAT30 \| Material: Al2O3+TiCN \| Stock: Yes (from material)
SCGN120412 CA30		ASA: SCGN 433 \| IC (mm): 12.70 \| S (mm): 4.76 \| RE (mm): 1.2 \| Grade: CA30 \| Material: Al2O3+ZrO2 \| Stock: Yes (from material)
SCGN120412 CSN30		ASA: SCGN 433 \| IC (mm): 12.70 \| S (mm): 4.76 \| RE (mm): 1.2 \| Grade: CSN30 \| Material: Si3N4 \| Stock: Yes (from material)
SCGN120412 CSN40		ASA: SCGN 433 \| IC (mm): 12.70 \| S (mm): 4.76 \| RE (mm): 1.2 \| Grade: CSN40 \| Material: Si3N4 \| Stock: Yes (from material)
SCGN120412 CSN60		ASA: SCGN 433 \| IC (mm): 12.70 \| S (mm): 4.76 \| RE (mm): 1.2 \| Grade: CSN60 \| Material: Si3N4 \| Stock: Yes (from material)
SCGN120412 CSN80		ASA: SCGN 433 \| IC (mm): 12.70 \| S (mm): 4.76 \| RE (mm): 1.2 \| Grade: CSN80 \| Material: SiAlON \| Stock: Yes (from material)
SCGN120416 CAT10		ASA: SCGN 434 \| IC (mm): 12.70 \| S (mm): 4.76 \| RE (mm): 1.6 \| Grade: CAT10 \| Material: Al2O3+TiC \| Stock: Yes (from material)
SCGN120416 CAT30		ASA: SCGN 434 \| IC (mm): 12.70 \| S (mm): 4.76 \| RE (mm): 1.6 \| Grade: CAT30 \| Material: Al2O3+TiCN \| Stock: Yes (from material)

Turning InsertsKorloy

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert SCGN

Brand Korloy·Turning Inserts

Available part numbers (13)

SCGN090412 CAT10, SCGN090412 CSN40, SCGN090416 CAT10, SCGN120404 CAT30, SCGN120408 CAT10, SCGN120408 CAT30, SCGN120412 CA30, SCGN120412 CSN30, SCGN120412 CSN40, SCGN120412 CSN60 + 3 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
