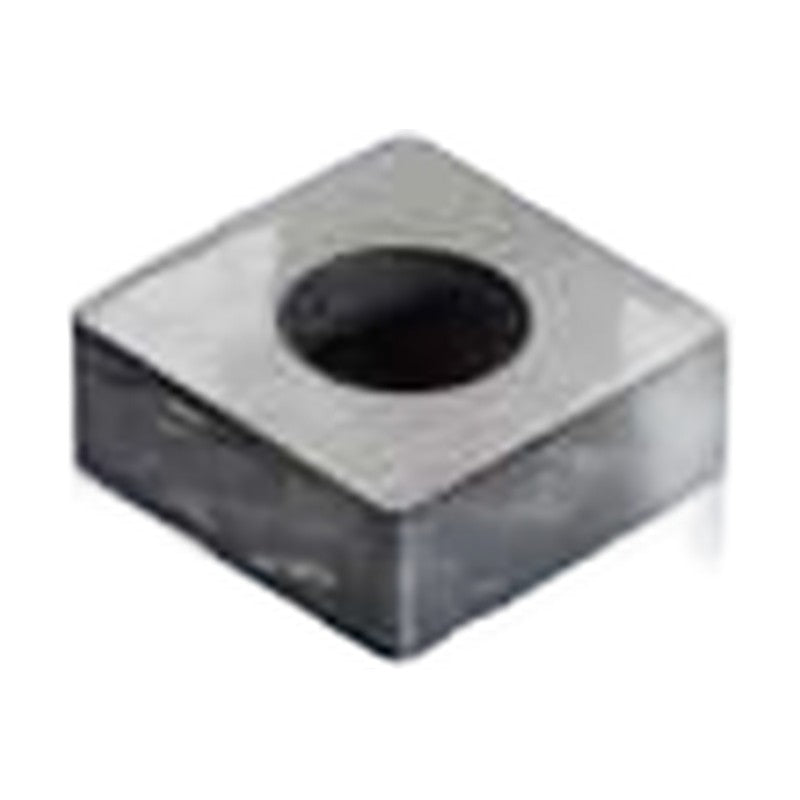

Korloy Ceramic Turning Insert SNGA

Korloy Ceramic Turning Insert SNGA

Square ceramic turning insert (ISO SNGA), negative (0° clearance), with hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT20, CAT30, CAT50, CAT90, CA20, CSN20, CSN30, CSN40, CSN50, CSN60, CSN80, CSN100, CW40, CW80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys
  • SiC whisker-reinforced grades for nickel- and cobalt-based alloys

Specifications

Material class Ceramic
Units mm
SNGA090304 CAT10 ASA: SNGA 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGA090304 CAT30 ASA: SNGA 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGA090308 CAT10 ASA: SNGA 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGA090308 CAT30 ASA: SNGA 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGA090312 CAT10 ASA: SNGA 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGA090312 CAT30 ASA: SNGA 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGA090416 CSN40 ASA: SNGA 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 3.81 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGA120404 CAT10 ASA: SNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
SNGA120404 CAT20 ASA: SNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGA120404 CAT50 ASA: SNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGA120404 CSN20 ASA: SNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGA120408 CAT10 ASA: SNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
SNGA120408 CAT20 ASA: SNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGA120408 CAT30 ASA: SNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
SNGA120408 CAT50 ASA: SNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGA120408 CAT90 ASA: SNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGA120408 CSN20 ASA: SNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGA120408 CSN30 ASA: SNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGA120408 CSN50 ASA: SNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGA120408 CSN80 ASA: SNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGA120408 CSN100 ASA: SNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
SNGA120408 CW40 ASA: SNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGA120408 CW80 ASA: SNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGA120412 CAT10 ASA: SNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
SNGA120412 CAT20 ASA: SNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGA120412 CAT30 ASA: SNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
SNGA120412 CAT50 ASA: SNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGA120412 CAT90 ASA: SNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGA120412 CA20 ASA: SNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGA120412 CSN20 ASA: SNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGA120412 CSN30 ASA: SNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGA120412 CSN40 ASA: SNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGA120412 CSN60 ASA: SNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNGA120412 CSN80 ASA: SNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGA120412 CSN100 ASA: SNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
SNGA120416 CAT10 ASA: SNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGA120416 CAT20 ASA: SNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGA120416 CSN20 ASA: SNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGA120416 CSN60 ASA: SNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNGA120416 CSN80 ASA: SNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGA120708 CAT10 ASA: SNGA 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGA120712 CAT10 ASA: SNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGA120712 CSN20 ASA: SNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGA120712 CSN30 ASA: SNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGA120716 CAT10 ASA: SNGA 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGA120716 CSN20 ASA: SNGA 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGA120716 CSN30 ASA: SNGA 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGA120716 CSN80 ASA: SNGA 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGA150608 CAT20 ASA: SNGA 542 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 6.35 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGA150612 CAT10 ASA: SNGA 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGA150612 CAT20 ASA: SNGA 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGA150616 CAT20 ASA: SNGA 544 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 6.35 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGA190612 CAT10 ASA: SNGA 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 7.94 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGA190612 CSN20 ASA: SNGA 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 7.94 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGA190612 CSN30 ASA: SNGA 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 7.94 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
55 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert SNGA

Brand Korloy·Turning Inserts

Available part numbers (55)

SNGA090304 CAT10, SNGA090304 CAT30, SNGA090308 CAT10, SNGA090308 CAT30, SNGA090312 CAT10, SNGA090312 CAT30, SNGA090416 CSN40, SNGA120404 CAT10, SNGA120404 CAT20, SNGA120404 CAT50 + 45 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
