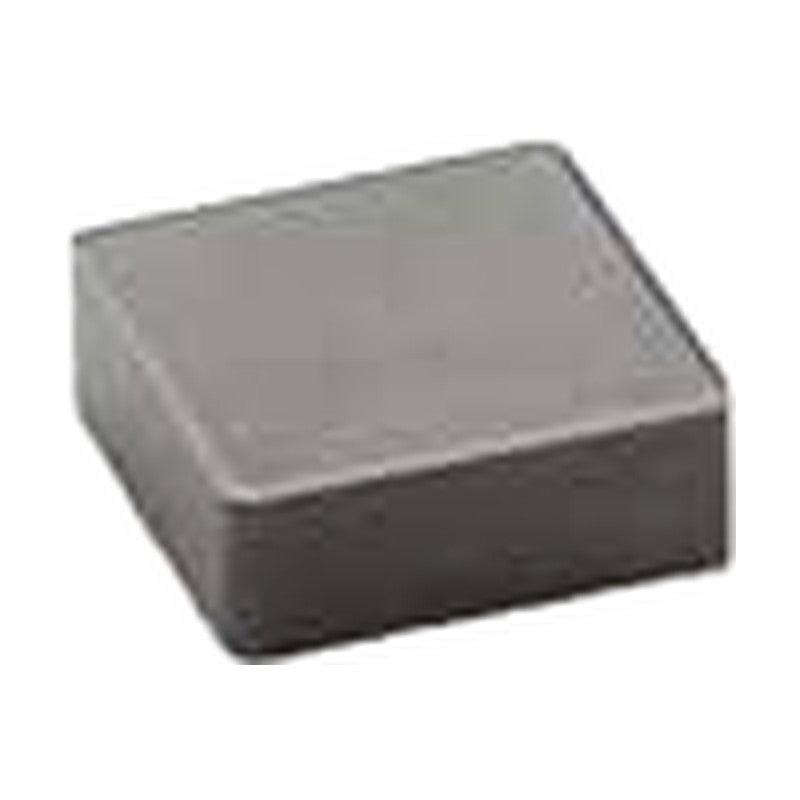

Korloy Ceramic Turning Insert SNGN

Korloy Ceramic Turning Insert SNGN

Square ceramic turning insert (ISO SNGN), negative (0° clearance), without hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT20, CAT30, CAT50, CAT90, CAT30C, CA20, CA30, CSN20, CSN30, CSN40, CSN50, CSN60, CSN80, CSN100, CW40, CW80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • TiN-coated mixed ceramic grades for finishing hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
SNGN090304 CAT10 ASA: SNGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN090304 CAT30 ASA: SNGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN090308 CAT10 ASA: SNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN090308 CAT20 ASA: SNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN090308 CAT30 ASA: SNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN090308 CAT50 ASA: SNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN090308 CSN20 ASA: SNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN090308 CSN40 ASA: SNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN090312 CAT10 ASA: SNGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN090312 CAT30 ASA: SNGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN090408 CAT10 ASA: SNGN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN090408 CSN40 ASA: SNGN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN090412 CSN40 ASA: SNGN 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN120404 CAT10 ASA: SNGN 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120404 CSN20 ASA: SNGN 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120408 CAT10 ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
SNGN120408 CAT20 ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN120408 CAT30 ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
SNGN120408 CAT50 ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120408 CAT90 ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120408 CAT30C ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30C | Material: Al2O3+TiCN, TiN coated | Stock: Yes (from material)
SNGN120408 CSN20 ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120408 CSN30 ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN120408 CSN40 ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
SNGN120408 CSN80 ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN120408 CSN100 ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
SNGN120408 CW40 ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120408 CW80 ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120412 CAT10 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
SNGN120412 CAT20 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN120412 CAT30 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
SNGN120412 CAT50 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120412 CAT90 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120412 CAT30C ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT30C | Material: Al2O3+TiCN, TiN coated | Stock: Yes (from material)
SNGN120412 CA30 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120412 CSN20 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120412 CSN30 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN120412 CSN40 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
SNGN120412 CSN60 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNGN120412 CSN80 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN120412 CSN100 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
SNGN120412 CW40 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120412 CW80 ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120416 CAT10 ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120416 CAT20 ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN120416 CAT30 ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120416 CAT30C ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT30C | Material: Al2O3+TiCN, TiN coated | Stock: Yes (from material)
SNGN120416 CA30 ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120416 CSN20 ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120416 CSN30 ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN120416 CSN40 ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN120416 CSN50 ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGN120416 CSN80 ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN120416 CSN100 ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
SNGN120416 CW40 ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120416 CW80 ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120420 CAT10 ASA: SNGN 435 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.0 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120420 CSN20 ASA: SNGN 435 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.0 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120420 CSN30 ASA: SNGN 435 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.0 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN120420 CSN40 ASA: SNGN 435 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.0 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN120420 CSN50 ASA: SNGN 435 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.0 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGN120608 CAT10 ASA: SNGN 442 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120612 CAT10 ASA: SNGN 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120616 CAT10 ASA: SNGN 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120704 CAT30 ASA: SNGN 451 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120708 CAT10 ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120708 CAT30 ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120708 CA20 ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120708 CSN20 ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120708 CSN80 ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN120708 CW40 ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120708 CW80 ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120712 CAT10 ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120712 CAT20 ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN120712 CAT30 ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120712 CA20 ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120712 CSN20 ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120712 CSN30 ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN120712 CSN40 ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN120712 CSN50 ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGN120712 CSN60 ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNGN120712 CSN80 ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN120712 CSN100 ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
SNGN120712 CW40 ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120712 CW80 ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120716 CAT10 ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120716 CAT20 ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN120716 CAT30 ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120716 CA20 ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120716 CA30 ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120716 CSN20 ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120716 CSN30 ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN120716 CSN40 ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN120716 CSN50 ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGN120716 CSN60 ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNGN120716 CSN80 ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN120716 CW40 ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120716 CW80 ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120720 CAT10 ASA: SNGN 455 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120720 CAT20 ASA: SNGN 455 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN120720 CAT30 ASA: SNGN 455 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120720 CA20 ASA: SNGN 455 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120720 CSN20 ASA: SNGN 455 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN150404 CAT30 ASA: SNGN 531 | IC (mm): 15.87 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN150408 CAT30 ASA: SNGN 532 | IC (mm): 15.87 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN150412 CAT10 ASA: SNGN 533 | IC (mm): 15.87 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN150412 CA20 ASA: SNGN 533 | IC (mm): 15.87 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN150416 CAT10 ASA: SNGN 534 | IC (mm): 15.87 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN150708 CAT10 ASA: SNGN 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN150712 CAT10 ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN150712 CAT20 ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN150712 CAT30 ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN150712 CA20 ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN150712 CSN20 ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN150712 CSN30 ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN150712 CSN40 ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN150716 CAT10 ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN150716 CA20 ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN150716 CA30 ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN150716 CSN20 ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN150716 CSN30 ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN150716 CSN40 ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN150716 CSN50 ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGN150716 CSN60 ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNGN190612 CAT10 ASA: SNGN 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN190612 CSN20 ASA: SNGN 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN190612 CSN40 ASA: SNGN 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN190612 CSN80 ASA: SNGN 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN190616 CAT10 ASA: SNGN 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN190616 CSN20 ASA: SNGN 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN190616 CSN80 ASA: SNGN 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN190616 CW40 ASA: SNGN 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN190616 CW80 ASA: SNGN 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN190712 CAT10 ASA: SNGN 653 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN190716 CAT10 ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN190716 CAT20 ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN190716 CAT30 ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN190716 CA20 ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN190716 CSN20 ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN190716 CSN40 ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN190716 CSN80 ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN190720 CAT10 ASA: SNGN 655 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN190720 CA20 ASA: SNGN 655 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN190720 CSN20 ASA: SNGN 655 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN250720 CAT10 ASA: SNGN 854 | IC (mm): 25.40 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN250720 CSN20 ASA: SNGN 854 | IC (mm): 25.40 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN250724 CAT10 ASA: SNGN 856 | IC (mm): 25.40 | S (mm): 7.94 | RE (mm): 2.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN250724 CAT30 ASA: SNGN 856 | IC (mm): 25.40 | S (mm): 7.94 | RE (mm): 2.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN250724 CSN20 ASA: SNGN 856 | IC (mm): 25.40 | S (mm): 7.94 | RE (mm): 2.4 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN250724 CSN30 ASA: SNGN 856 | IC (mm): 25.40 | S (mm): 7.94 | RE (mm): 2.4 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN250924 CAT10 ASA: SNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN250924 CA20 ASA: SNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN250924 CSN20 ASA: SNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN250924 CSN30 ASA: SNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN250924 CSN40 ASA: SNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN250924 CSN80 ASA: SNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
Turning InsertsKorloy
156 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert SNGN

Brand Korloy·Turning Inserts

Available part numbers (156)

SNGN090304 CAT10, SNGN090304 CAT30, SNGN090308 CAT10, SNGN090308 CAT20, SNGN090308 CAT30, SNGN090308 CAT50, SNGN090308 CSN20, SNGN090308 CSN40, SNGN090312 CAT10, SNGN090312 CAT30 + 146 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNGN090304 CAT10ASA: SNGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN090304 CAT30ASA: SNGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN090308 CAT10ASA: SNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN090308 CAT20ASA: SNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN090308 CAT30ASA: SNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN090308 CAT50ASA: SNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN090308 CSN20ASA: SNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN090308 CSN40ASA: SNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN090312 CAT10ASA: SNGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN090312 CAT30ASA: SNGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN090408 CAT10ASA: SNGN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN090408 CSN40ASA: SNGN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN090412 CSN40ASA: SNGN 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN120404 CAT10ASA: SNGN 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120404 CSN20ASA: SNGN 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120408 CAT10ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
SNGN120408 CAT20ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN120408 CAT30ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
SNGN120408 CAT50ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120408 CAT90ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120408 CAT30CASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30C | Material: Al2O3+TiCN, TiN coated | Stock: Yes (from material)
SNGN120408 CSN20ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120408 CSN30ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN120408 CSN40ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
SNGN120408 CSN80ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN120408 CSN100ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
SNGN120408 CW40ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120408 CW80ASA: SNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120412 CAT10ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
SNGN120412 CAT20ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN120412 CAT30ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
SNGN120412 CAT50ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120412 CAT90ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120412 CAT30CASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT30C | Material: Al2O3+TiCN, TiN coated | Stock: Yes (from material)
SNGN120412 CA30ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120412 CSN20ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120412 CSN30ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN120412 CSN40ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
SNGN120412 CSN60ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNGN120412 CSN80ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN120412 CSN100ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
SNGN120412 CW40ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120412 CW80ASA: SNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120416 CAT10ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120416 CAT20ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN120416 CAT30ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120416 CAT30CASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT30C | Material: Al2O3+TiCN, TiN coated | Stock: Yes (from material)
SNGN120416 CA30ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120416 CSN20ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120416 CSN30ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN120416 CSN40ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN120416 CSN50ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGN120416 CSN80ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN120416 CSN100ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
SNGN120416 CW40ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120416 CW80ASA: SNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120420 CAT10ASA: SNGN 435 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.0 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120420 CSN20ASA: SNGN 435 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.0 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120420 CSN30ASA: SNGN 435 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.0 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN120420 CSN40ASA: SNGN 435 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.0 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN120420 CSN50ASA: SNGN 435 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.0 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGN120608 CAT10ASA: SNGN 442 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120612 CAT10ASA: SNGN 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120616 CAT10ASA: SNGN 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120704 CAT30ASA: SNGN 451 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120708 CAT10ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120708 CAT30ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120708 CA20ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120708 CSN20ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120708 CSN80ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN120708 CW40ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120708 CW80ASA: SNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120712 CAT10ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120712 CAT20ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN120712 CAT30ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120712 CA20ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120712 CSN20ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120712 CSN30ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN120712 CSN40ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN120712 CSN50ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGN120712 CSN60ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNGN120712 CSN80ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN120712 CSN100ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
SNGN120712 CW40ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120712 CW80ASA: SNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120716 CAT10ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120716 CAT20ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN120716 CAT30ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120716 CA20ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120716 CA30ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120716 CSN20ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN120716 CSN30ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN120716 CSN40ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN120716 CSN50ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGN120716 CSN60ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNGN120716 CSN80ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN120716 CW40ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120716 CW80ASA: SNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN120720 CAT10ASA: SNGN 455 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN120720 CAT20ASA: SNGN 455 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN120720 CAT30ASA: SNGN 455 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN120720 CA20ASA: SNGN 455 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN120720 CSN20ASA: SNGN 455 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN150404 CAT30ASA: SNGN 531 | IC (mm): 15.87 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN150408 CAT30ASA: SNGN 532 | IC (mm): 15.87 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN150412 CAT10ASA: SNGN 533 | IC (mm): 15.87 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN150412 CA20ASA: SNGN 533 | IC (mm): 15.87 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN150416 CAT10ASA: SNGN 534 | IC (mm): 15.87 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN150708 CAT10ASA: SNGN 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN150712 CAT10ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN150712 CAT20ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN150712 CAT30ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN150712 CA20ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN150712 CSN20ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN150712 CSN30ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN150712 CSN40ASA: SNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN150716 CAT10ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN150716 CA20ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN150716 CA30ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN150716 CSN20ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN150716 CSN30ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN150716 CSN40ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN150716 CSN50ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGN150716 CSN60ASA: SNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNGN190612 CAT10ASA: SNGN 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN190612 CSN20ASA: SNGN 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN190612 CSN40ASA: SNGN 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN190612 CSN80ASA: SNGN 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN190616 CAT10ASA: SNGN 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN190616 CSN20ASA: SNGN 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN190616 CSN80ASA: SNGN 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN190616 CW40ASA: SNGN 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN190616 CW80ASA: SNGN 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
SNGN190712 CAT10ASA: SNGN 653 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN190716 CAT10ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN190716 CAT20ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGN190716 CAT30ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN190716 CA20ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN190716 CSN20ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN190716 CSN40ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN190716 CSN80ASA: SNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGN190720 CAT10ASA: SNGN 655 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN190720 CA20ASA: SNGN 655 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN190720 CSN20ASA: SNGN 655 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN250720 CAT10ASA: SNGN 854 | IC (mm): 25.40 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN250720 CSN20ASA: SNGN 854 | IC (mm): 25.40 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN250724 CAT10ASA: SNGN 856 | IC (mm): 25.40 | S (mm): 7.94 | RE (mm): 2.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN250724 CAT30ASA: SNGN 856 | IC (mm): 25.40 | S (mm): 7.94 | RE (mm): 2.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SNGN250724 CSN20ASA: SNGN 856 | IC (mm): 25.40 | S (mm): 7.94 | RE (mm): 2.4 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN250724 CSN30ASA: SNGN 856 | IC (mm): 25.40 | S (mm): 7.94 | RE (mm): 2.4 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN250924 CAT10ASA: SNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGN250924 CA20ASA: SNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SNGN250924 CSN20ASA: SNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SNGN250924 CSN30ASA: SNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGN250924 CSN40ASA: SNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGN250924 CSN80ASA: SNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
