• Korloy Ceramic Turning Insert SNGX
1 1

Korloy Ceramic Turning Insert SNGX

Korloy Ceramic Turning Insert SNGX

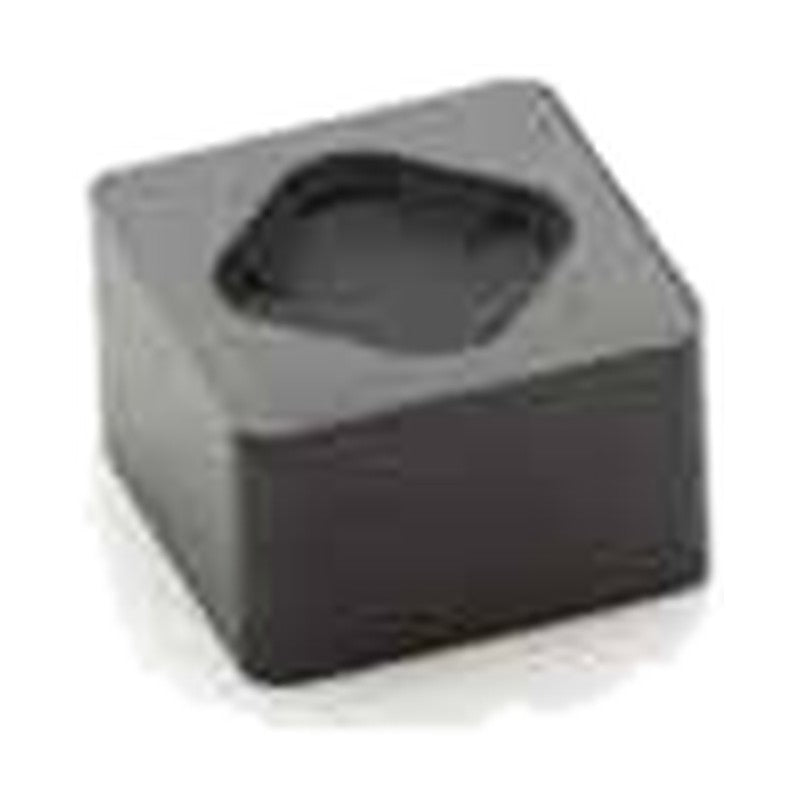

Square ceramic turning insert (ISO SNGX), negative (0° clearance), for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT20, CSN30, CSN40, CSN50, CSN60, CSN80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
SNGX120408 CSN40 ASA: SNGX 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGX120412 CSN40 ASA: SNGX 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGX120416 CSN40 ASA: SNGX 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGX120708 CAT10 ASA: SNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGX120708 CSN30 ASA: SNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGX120708 CSN50 ASA: SNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGX120712 CAT10 ASA: SNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGX120712 CAT20 ASA: SNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGX120712 CSN30 ASA: SNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGX120712 CSN40 ASA: SNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGX120712 CSN50 ASA: SNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGX120712 CSN80 ASA: SNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGX120716 CSN30 ASA: SNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGX120716 CSN40 ASA: SNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGX120716 CSN50 ASA: SNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGX120716 CSN60 ASA: SNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNGX120716 CSN80 ASA: SNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGX150708 CAT10 ASA: SNGX 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGX150708 CAT20 ASA: SNGX 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGX150708 CSN30 ASA: SNGX 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGX150708 CSN50 ASA: SNGX 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGX150712 CAT10 ASA: SNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGX150712 CAT20 ASA: SNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGX150712 CSN30 ASA: SNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGX150712 CSN50 ASA: SNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGX150712 CSN80 ASA: SNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGX150716 CSN30 ASA: SNGX 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGX150716 CSN40 ASA: SNGX 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGX150716 CSN50 ASA: SNGX 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert SNGX

Brand Korloy·Turning Inserts

Available part numbers (29)

SNGX120408 CSN40, SNGX120412 CSN40, SNGX120416 CSN40, SNGX120708 CAT10, SNGX120708 CSN30, SNGX120708 CSN50, SNGX120712 CAT10, SNGX120712 CAT20, SNGX120712 CSN30, SNGX120712 CSN40 + 19 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNGX120408 CSN40ASA: SNGX 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGX120412 CSN40ASA: SNGX 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGX120416 CSN40ASA: SNGX 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGX120708 CAT10ASA: SNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGX120708 CSN30ASA: SNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGX120708 CSN50ASA: SNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGX120712 CAT10ASA: SNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGX120712 CAT20ASA: SNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGX120712 CSN30ASA: SNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGX120712 CSN40ASA: SNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGX120712 CSN50ASA: SNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGX120712 CSN80ASA: SNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGX120716 CSN30ASA: SNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGX120716 CSN40ASA: SNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGX120716 CSN50ASA: SNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGX120716 CSN60ASA: SNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNGX120716 CSN80ASA: SNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGX150708 CAT10ASA: SNGX 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGX150708 CAT20ASA: SNGX 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGX150708 CSN30ASA: SNGX 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGX150708 CSN50ASA: SNGX 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGX150712 CAT10ASA: SNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SNGX150712 CAT20ASA: SNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
SNGX150712 CSN30ASA: SNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGX150712 CSN50ASA: SNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
SNGX150712 CSN80ASA: SNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNGX150716 CSN30ASA: SNGX 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNGX150716 CSN40ASA: SNGX 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNGX150716 CSN50ASA: SNGX 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
