• Korloy Ceramic Turning Insert TCUN
1 1

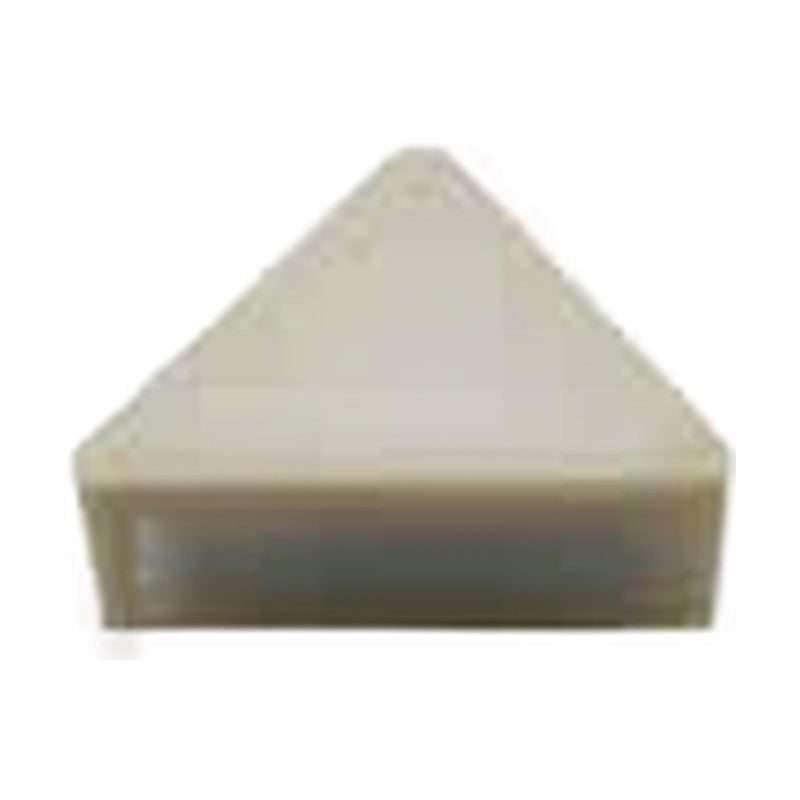

Korloy Ceramic Turning Insert TCUN

Korloy Ceramic Turning Insert TCUN

Triangular ceramic turning insert (ISO TCUN), positive 7° clearance, without hole, for hardened steel and cast iron.

Key features

  • Grades offered: CAT30, CSN30, CSN40
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Si3N4 grades for roughing and high-speed machining of cast iron

Specifications

Material class Ceramic
Units mm
TCUN160408 CAT30 ASA: TCUN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TCUN160408 CSN30 ASA: TCUN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TCUN160408 CSN40 ASA: TCUN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TCUN160412 CAT30 ASA: TCUN 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TCUN160412 CSN30 ASA: TCUN 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TCUN160412 CSN40 ASA: TCUN 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TCUN160416 CAT30 ASA: TCUN 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TCUN160416 CSN30 ASA: TCUN 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert TCUN

Brand Korloy·Turning Inserts

Available part numbers (8)

TCUN160408 CAT30, TCUN160408 CSN30, TCUN160408 CSN40, TCUN160412 CAT30, TCUN160412 CSN30, TCUN160412 CSN40, TCUN160416 CAT30, TCUN160416 CSN30

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCUN160408 CAT30ASA: TCUN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TCUN160408 CSN30ASA: TCUN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TCUN160408 CSN40ASA: TCUN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TCUN160412 CAT30ASA: TCUN 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TCUN160412 CSN30ASA: TCUN 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TCUN160412 CSN40ASA: TCUN 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TCUN160416 CAT30ASA: TCUN 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TCUN160416 CSN30ASA: TCUN 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
