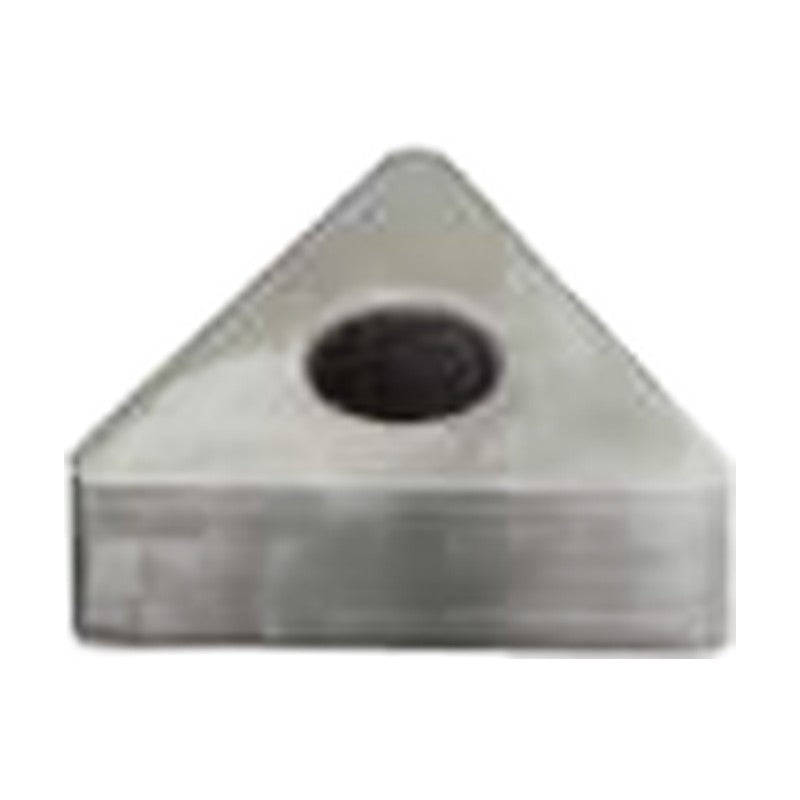

Korloy Ceramic Turning Insert TNGA

Korloy Ceramic Turning Insert TNGA

Triangular ceramic turning insert (ISO TNGA), negative (0° clearance), with hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT20, CAT30, CAT50, CAT90, CA20, CA30, CSN20, CSN30, CSN40, CSN50, CSN80, CW40, CW80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys
  • SiC whisker-reinforced grades for nickel- and cobalt-based alloys

Specifications

Material class Ceramic
Units mm
TNGA110304 CAT10 ASA: TNGA 221 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.4 | D1 (mm): 2.26 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TNGA110304 CAT30 ASA: TNGA 221 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.4 | D1 (mm): 2.26 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA110308 CAT10 ASA: TNGA 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | D1 (mm): 2.26 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TNGA110308 CAT30 ASA: TNGA 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | D1 (mm): 2.26 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA160304 CAT10 ASA: TNGA 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TNGA160304 CAT30 ASA: TNGA 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA160308 CAT10 ASA: TNGA 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TNGA160308 CAT30 ASA: TNGA 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA160308 CA20 ASA: TNGA 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
TNGA160308 CSN20 ASA: TNGA 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TNGA160312 CAT10 ASA: TNGA 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TNGA160312 CAT30 ASA: TNGA 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA160404 CAT10 ASA: TNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
TNGA160404 CAT20 ASA: TNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
TNGA160404 CAT30 ASA: TNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA160404 CAT50 ASA: TNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA160404 CAT90 ASA: TNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA160404 CSN20 ASA: TNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TNGA160404 CSN30 ASA: TNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TNGA160404 CSN40 ASA: TNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TNGA160404 CSN50 ASA: TNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
TNGA160404 CSN80 ASA: TNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TNGA160408 CAT10 ASA: TNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
TNGA160408 CAT20 ASA: TNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
TNGA160408 CAT30 ASA: TNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
TNGA160408 CAT50 ASA: TNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA160408 CAT90 ASA: TNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA160408 CA30 ASA: TNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
TNGA160408 CSN20 ASA: TNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TNGA160408 CSN30 ASA: TNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TNGA160408 CSN40 ASA: TNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
TNGA160408 CSN50 ASA: TNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
TNGA160408 CSN80 ASA: TNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TNGA160408 CW40 ASA: TNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TNGA160408 CW80 ASA: TNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TNGA160412 CAT10 ASA: TNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TNGA160412 CAT20 ASA: TNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
TNGA160412 CAT30 ASA: TNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
TNGA160412 CAT50 ASA: TNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA160412 CAT90 ASA: TNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA160412 CA30 ASA: TNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
TNGA160412 CSN20 ASA: TNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TNGA160412 CSN30 ASA: TNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TNGA160412 CSN40 ASA: TNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
TNGA160412 CSN50 ASA: TNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
TNGA160412 CSN80 ASA: TNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TNGA160416 CAT10 ASA: TNGA 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TNGA160416 CAT30 ASA: TNGA 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA160416 CAT50 ASA: TNGA 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 3.81 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA160416 CA20 ASA: TNGA 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 3.81 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
TNGA160416 CSN20 ASA: TNGA 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 3.81 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TNGA160416 CSN30 ASA: TNGA 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 3.81 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TNGA160416 CSN40 ASA: TNGA 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 3.81 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TNGA160416 CSN50 ASA: TNGA 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 3.81 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
TNGA160416 CSN80 ASA: TNGA 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 3.81 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TNGA220404 CAT10 ASA: TNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TNGA220404 CAT30 ASA: TNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA220404 CSN20 ASA: TNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TNGA220408 CAT10 ASA: TNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TNGA220408 CAT30 ASA: TNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA220408 CSN20 ASA: TNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TNGA220408 CSN40 ASA: TNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TNGA220408 CSN80 ASA: TNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TNGA220412 CAT10 ASA: TNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TNGA220412 CAT30 ASA: TNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA220412 CSN20 ASA: TNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TNGA220412 CSN40 ASA: TNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TNGA220412 CSN80 ASA: TNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TNGA220416 CAT10 ASA: TNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TNGA220416 CAT30 ASA: TNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA220416 CA20 ASA: TNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
TNGA220416 CSN20 ASA: TNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TNGA220416 CSN40 ASA: TNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TNGA220708 CAT10 ASA: TNGA 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TNGA220708 CAT30 ASA: TNGA 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA220712 CAT10 ASA: TNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TNGA270608 CAT30 ASA: TNGA 542 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 6.35 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA270612 CAT30 ASA: TNGA 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TNGA330924 CAT30 ASA: TNGA 666 | IC (mm): 19.05 | S (mm): 9.52 | RE (mm): 2.4 | D1 (mm): 7.94 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
Turning InsertsKorloy
79 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert TNGA

Brand Korloy·Turning Inserts

Available part numbers (79)

TNGA110304 CAT10, TNGA110304 CAT30, TNGA110308 CAT10, TNGA110308 CAT30, TNGA160304 CAT10, TNGA160304 CAT30, TNGA160308 CAT10, TNGA160308 CAT30, TNGA160308 CA20, TNGA160308 CSN20 + 69 more — see full table ↓
