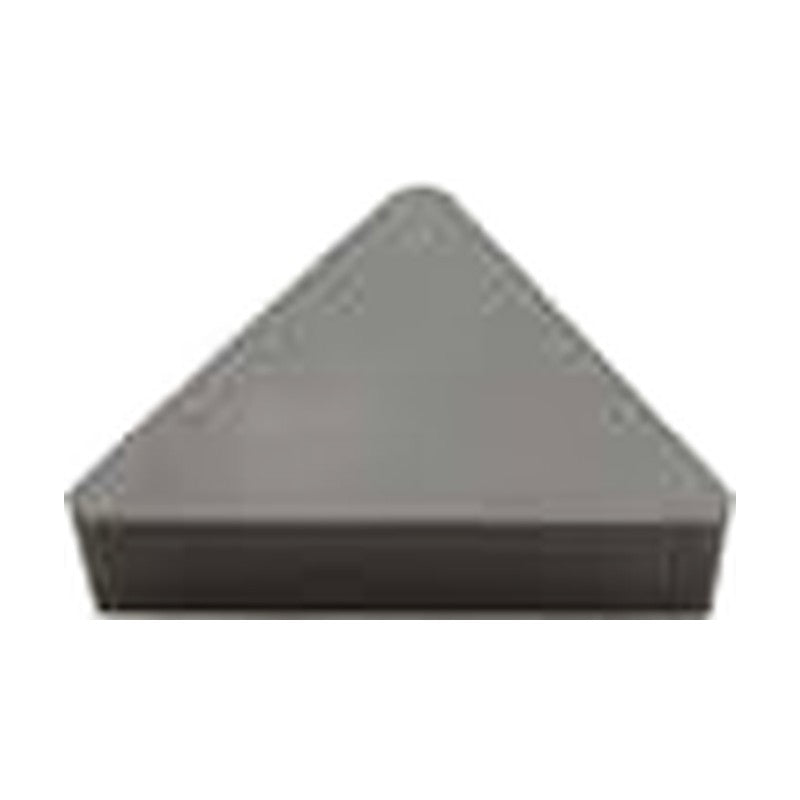

Korloy Ceramic Turning Insert TPGN

Korloy Ceramic Turning Insert TPGN

Triangular ceramic turning insert (ISO TPGN), positive 11° clearance, without hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT20, CAT30, CA20, CSN20, CSN30, CSN40, CSN50, CSN80, CW40, CW80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys
  • SiC whisker-reinforced grades for nickel- and cobalt-based alloys

Specifications

Material class Ceramic
Units mm
TPGN090204 CAT30 ASA: TPGN 731 | IC (mm): 5.56 | S (mm): 2.38 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN090208 CAT30 ASA: TPGN 732 | IC (mm): 5.56 | S (mm): 2.38 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN110304 CAT10 ASA: TPGN 221 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN110304 CAT20 ASA: TPGN 221 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
TPGN110304 CAT30 ASA: TPGN 221 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN110304 CSN20 ASA: TPGN 221 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TPGN110304 CSN40 ASA: TPGN 221 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPGN110308 CAT10 ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN110308 CAT20 ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
TPGN110308 CAT30 ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN110308 CSN20 ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TPGN110308 CSN30 ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TPGN110308 CSN40 ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPGN110308 CSN80 ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TPGN110308 CW40 ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN110308 CW80 ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN160304 CAT10 ASA: TPGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN160304 CAT20 ASA: TPGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
TPGN160304 CAT30 ASA: TPGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN160304 CA20 ASA: TPGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
TPGN160304 CSN20 ASA: TPGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TPGN160304 CSN40 ASA: TPGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPGN160308 CAT10 ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN160308 CAT20 ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
TPGN160308 CAT30 ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN160308 CA20 ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
TPGN160308 CSN20 ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TPGN160308 CSN30 ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TPGN160308 CSN40 ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPGN160308 CSN50 ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
TPGN160308 CSN80 ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TPGN160308 CW40 ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN160308 CW80 ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN160312 CAT10 ASA: TPGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN160312 CAT30 ASA: TPGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN160312 CSN40 ASA: TPGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPGN160312 CSN50 ASA: TPGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
TPGN160312 CW40 ASA: TPGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN160312 CW80 ASA: TPGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN160404 CAT10 ASA: TPGN 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN160408 CAT10 ASA: TPGN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN160408 CAT30 ASA: TPGN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN160408 CSN80 ASA: TPGN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TPGN160412 CAT10 ASA: TPGN 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN160412 CSN80 ASA: TPGN 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TPGN160416 CAT10 ASA: TPGN 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN220404 CAT10 ASA: TPGN 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN220404 CAT30 ASA: TPGN 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN220408 CAT10 ASA: TPGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN220408 CAT30 ASA: TPGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN220408 CSN20 ASA: TPGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TPGN220408 CW40 ASA: TPGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN220408 CW80 ASA: TPGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN220412 CAT10 ASA: TPGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN220412 CAT30 ASA: TPGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN220412 CSN30 ASA: TPGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TPGN220412 CSN40 ASA: TPGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPGN220416 CAT10 ASA: TPGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN220416 CAT30 ASA: TPGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN271232 CAT30 ASA: TPGN 588 | IC (mm): 15.87 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
Turning InsertsKorloy
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert TPGN

Brand Korloy·Turning Inserts

Available part numbers (60)

TPGN090204 CAT30, TPGN090208 CAT30, TPGN110304 CAT10, TPGN110304 CAT20, TPGN110304 CAT30, TPGN110304 CSN20, TPGN110304 CSN40, TPGN110308 CAT10, TPGN110308 CAT20, TPGN110308 CAT30 + 50 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TPGN090204 CAT30ASA: TPGN 731 | IC (mm): 5.56 | S (mm): 2.38 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN090208 CAT30ASA: TPGN 732 | IC (mm): 5.56 | S (mm): 2.38 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN110304 CAT10ASA: TPGN 221 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN110304 CAT20ASA: TPGN 221 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
TPGN110304 CAT30ASA: TPGN 221 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN110304 CSN20ASA: TPGN 221 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TPGN110304 CSN40ASA: TPGN 221 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPGN110308 CAT10ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN110308 CAT20ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
TPGN110308 CAT30ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN110308 CSN20ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TPGN110308 CSN30ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TPGN110308 CSN40ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPGN110308 CSN80ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TPGN110308 CW40ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN110308 CW80ASA: TPGN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN160304 CAT10ASA: TPGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN160304 CAT20ASA: TPGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
TPGN160304 CAT30ASA: TPGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN160304 CA20ASA: TPGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
TPGN160304 CSN20ASA: TPGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TPGN160304 CSN40ASA: TPGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPGN160308 CAT10ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN160308 CAT20ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
TPGN160308 CAT30ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN160308 CA20ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
TPGN160308 CSN20ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TPGN160308 CSN30ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TPGN160308 CSN40ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPGN160308 CSN50ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
TPGN160308 CSN80ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TPGN160308 CW40ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN160308 CW80ASA: TPGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN160312 CAT10ASA: TPGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN160312 CAT30ASA: TPGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN160312 CSN40ASA: TPGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPGN160312 CSN50ASA: TPGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
TPGN160312 CW40ASA: TPGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN160312 CW80ASA: TPGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN160404 CAT10ASA: TPGN 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN160408 CAT10ASA: TPGN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN160408 CAT30ASA: TPGN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN160408 CSN80ASA: TPGN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TPGN160412 CAT10ASA: TPGN 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN160412 CSN80ASA: TPGN 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
TPGN160416 CAT10ASA: TPGN 334 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN220404 CAT10ASA: TPGN 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN220404 CAT30ASA: TPGN 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN220408 CAT10ASA: TPGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN220408 CAT30ASA: TPGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN220408 CSN20ASA: TPGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
TPGN220408 CW40ASA: TPGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN220408 CW80ASA: TPGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
TPGN220412 CAT10ASA: TPGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN220412 CAT30ASA: TPGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN220412 CSN30ASA: TPGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
TPGN220412 CSN40ASA: TPGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPGN220416 CAT10ASA: TPGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
TPGN220416 CAT30ASA: TPGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
TPGN271232 CAT30ASA: TPGN 588 | IC (mm): 15.87 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
