Korloy Ceramic Turning Insert TPUN

Korloy Ceramic Turning Insert TPUN

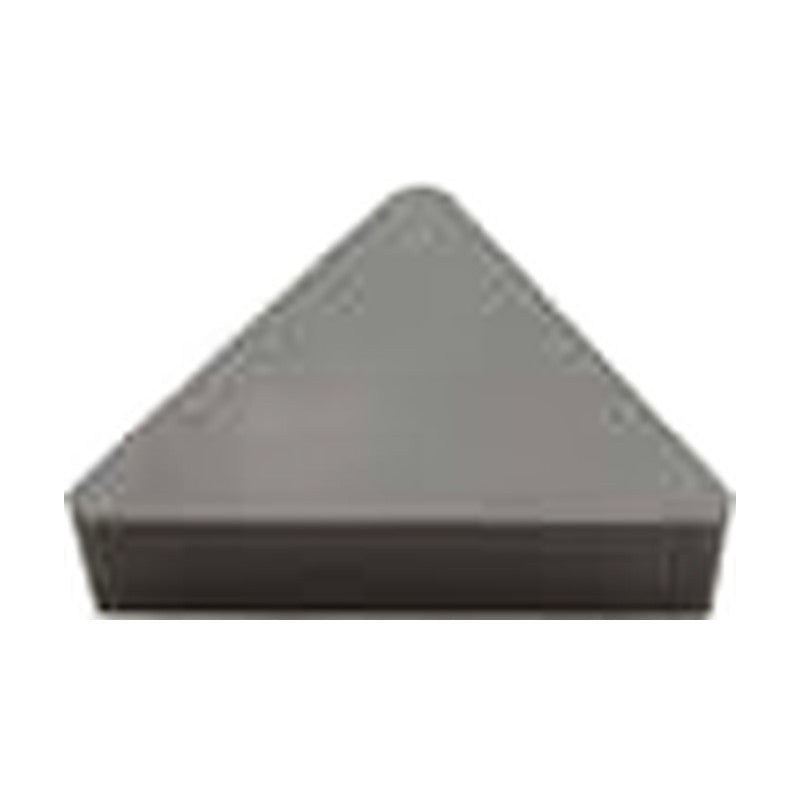

Triangular ceramic turning insert (ISO TPUN), positive 11° clearance, without hole, for cast iron.

Key features

  • Grades offered: CSN40
  • Si3N4 grades for roughing and high-speed machining of cast iron

Specifications

Material class Ceramic
Units mm
TPUN110308 CSN40 ASA: TPUN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPUN110312 CSN40 ASA: TPUN 223 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert TPUN

Brand Korloy·Turning Inserts

Available part numbers (2)

TPUN110308 CSN40, TPUN110312 CSN40

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TPUN110308 CSN40ASA: TPUN 222 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
TPUN110312 CSN40ASA: TPUN 223 | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
