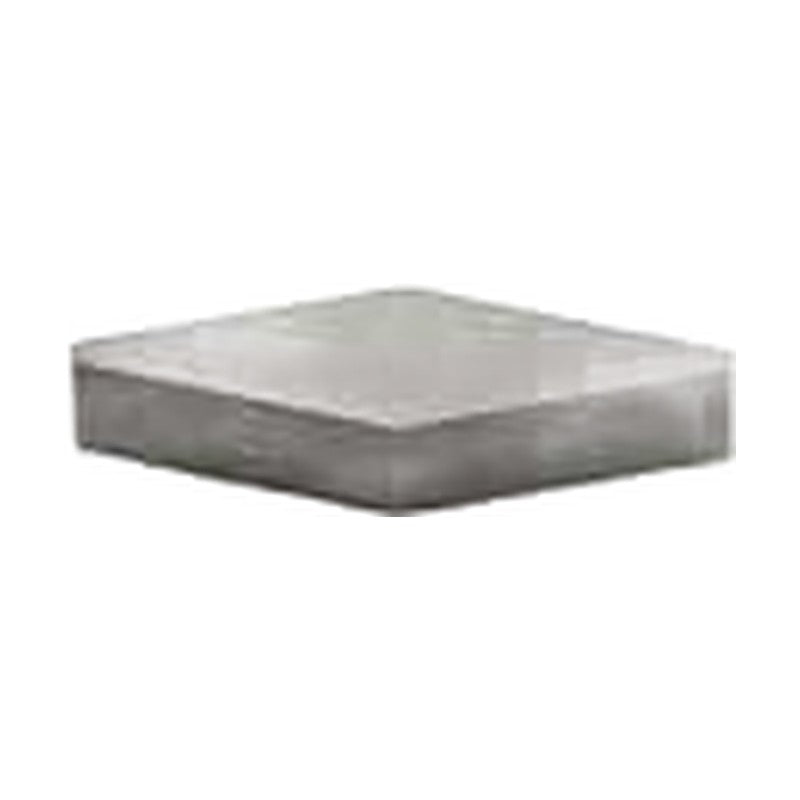

Korloy Ceramic Turning Insert VNGN

Korloy Ceramic Turning Insert VNGN

35° rhombic ceramic turning insert (ISO VNGN), negative (0° clearance), without hole, for hardened steel and cast iron.

Key features

  • Grades offered: CAT30
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron

Specifications

Material class Ceramic
Units mm
VNGN160404 CAT30 ASA: VNGN 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGN160408 CAT30 ASA: VNGN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGN160704 CAT30 ASA: VNGN 351 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGN160708 CAT30 ASA: VNGN 352 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
Turning InsertsKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert VNGN

Brand Korloy·Turning Inserts

Available part numbers (4)

VNGN160404 CAT30, VNGN160408 CAT30, VNGN160704 CAT30, VNGN160708 CAT30

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VNGN160404 CAT30ASA: VNGN 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGN160408 CAT30ASA: VNGN 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGN160704 CAT30ASA: VNGN 351 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGN160708 CAT30ASA: VNGN 352 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
