Korloy Ceramic Turning Insert VNGX

Korloy Ceramic Turning Insert VNGX

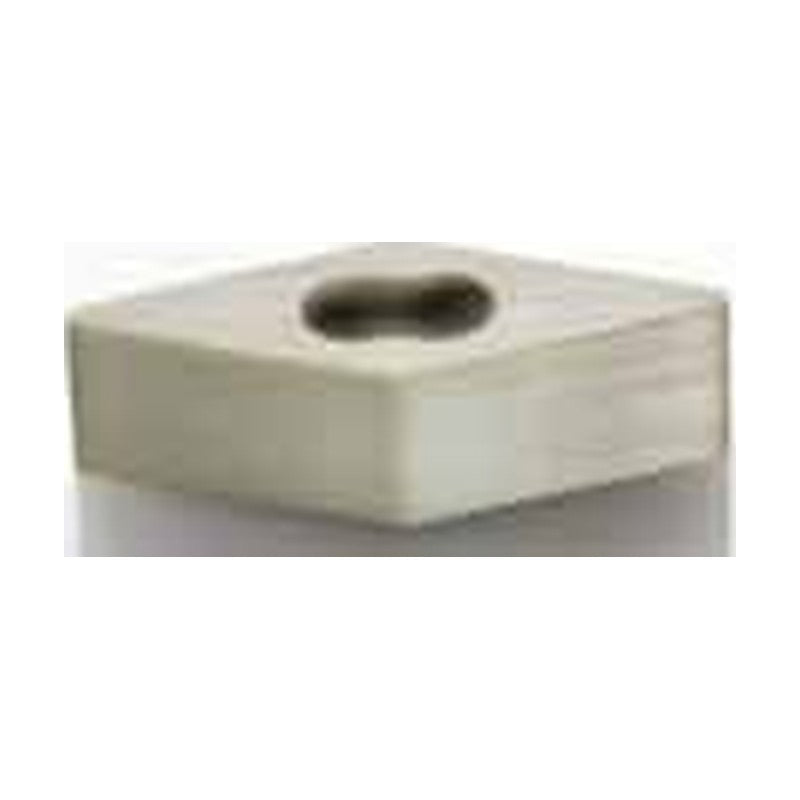

35° rhombic ceramic turning insert (ISO VNGX), negative (0° clearance), for hardened steel and cast iron.

Key features

  • Grades offered: CAT30, CA20, CSN40, CSN60
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron

Specifications

Material class Ceramic
Units mm
VNGX160708 CAT30 ASA: VNGX 352 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGX160708 CA20 ASA: VNGX 352 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
VNGX160708 CSN40 ASA: VNGX 352 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
VNGX160712 CAT30 ASA: VNGX 353 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGX160712 CA20 ASA: VNGX 353 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
VNGX160712 CSN40 ASA: VNGX 353 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
VNGX160712 CSN60 ASA: VNGX 353 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
VNGX160716 CSN40 ASA: VNGX 354 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert VNGX

Brand Korloy·Turning Inserts

Available part numbers (8)

VNGX160708 CAT30, VNGX160708 CA20, VNGX160708 CSN40, VNGX160712 CAT30, VNGX160712 CA20, VNGX160712 CSN40, VNGX160712 CSN60, VNGX160716 CSN40

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VNGX160708 CAT30ASA: VNGX 352 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGX160708 CA20ASA: VNGX 352 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
VNGX160708 CSN40ASA: VNGX 352 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
VNGX160712 CAT30ASA: VNGX 353 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGX160712 CA20ASA: VNGX 353 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
VNGX160712 CSN40ASA: VNGX 353 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
VNGX160712 CSN60ASA: VNGX 353 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
VNGX160716 CSN40ASA: VNGX 354 | IC (mm): 9.52 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
