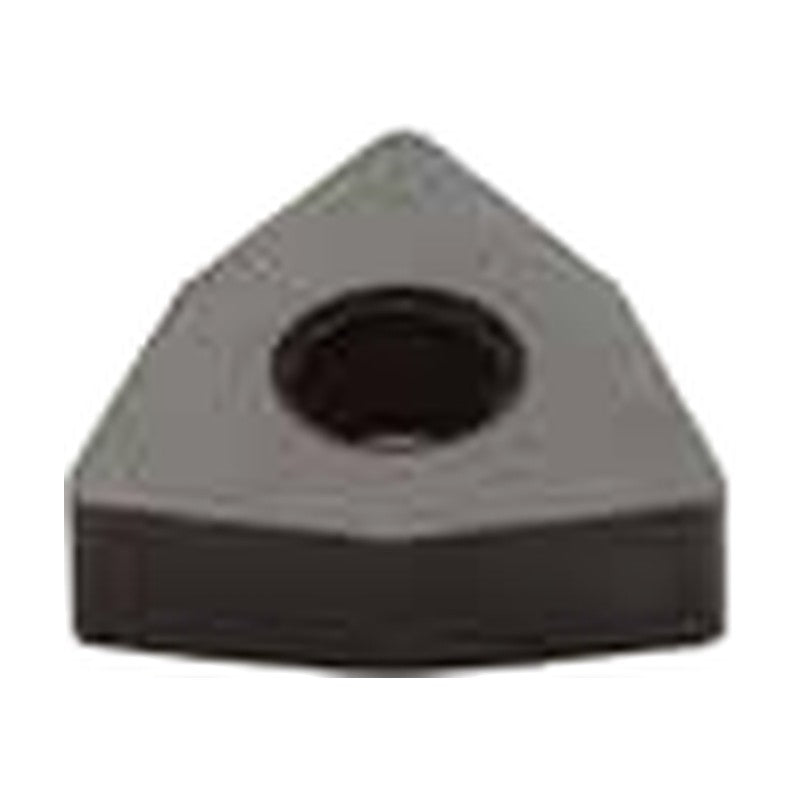

Korloy Ceramic Turning Insert WNGA

Korloy Ceramic Turning Insert WNGA

80° trigon ceramic turning insert (ISO WNGA), negative (0° clearance), with hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT30, CAT50, CSN20, CSN30, CSN40, CSN50, CSN60, CSN80, CW40, CW80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys
  • SiC whisker-reinforced grades for nickel- and cobalt-based alloys

Specifications

Material class Ceramic
Units mm
WNGA080404 CAT10 ASA: WNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
WNGA080404 CAT30 ASA: WNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
WNGA080404 CAT50 ASA: WNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
WNGA080408 CAT10 ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
WNGA080408 CAT30 ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
WNGA080408 CAT50 ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
WNGA080408 CSN20 ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
WNGA080408 CSN30 ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
WNGA080408 CSN40 ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
WNGA080408 CSN50 ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
WNGA080408 CSN60 ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
WNGA080408 CSN80 ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
WNGA080408 CW40 ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WNGA080408 CW80 ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WNGA080412 CAT10 ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
WNGA080412 CAT30 ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
WNGA080412 CAT50 ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
WNGA080412 CSN20 ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
WNGA080412 CSN30 ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
WNGA080412 CSN40 ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
WNGA080412 CSN50 ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
WNGA080412 CSN60 ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
WNGA080412 CSN80 ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
Turning InsertsKorloy
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert WNGA

Brand Korloy·Turning Inserts

Available part numbers (23)

WNGA080404 CAT10, WNGA080404 CAT30, WNGA080404 CAT50, WNGA080408 CAT10, WNGA080408 CAT30, WNGA080408 CAT50, WNGA080408 CSN20, WNGA080408 CSN30, WNGA080408 CSN40, WNGA080408 CSN50 + 13 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WNGA080404 CAT10ASA: WNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
WNGA080404 CAT30ASA: WNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
WNGA080404 CAT50ASA: WNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
WNGA080408 CAT10ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
WNGA080408 CAT30ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
WNGA080408 CAT50ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
WNGA080408 CSN20ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
WNGA080408 CSN30ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
WNGA080408 CSN40ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
WNGA080408 CSN50ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
WNGA080408 CSN60ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
WNGA080408 CSN80ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
WNGA080408 CW40ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WNGA080408 CW80ASA: WNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WNGA080412 CAT10ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
WNGA080412 CAT30ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
WNGA080412 CAT50ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
WNGA080412 CSN20ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
WNGA080412 CSN30ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
WNGA080412 CSN40ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
WNGA080412 CSN50ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
WNGA080412 CSN60ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
WNGA080412 CSN80ASA: WNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
