• Korloy Ceramic Turning Insert WNGX
1 1

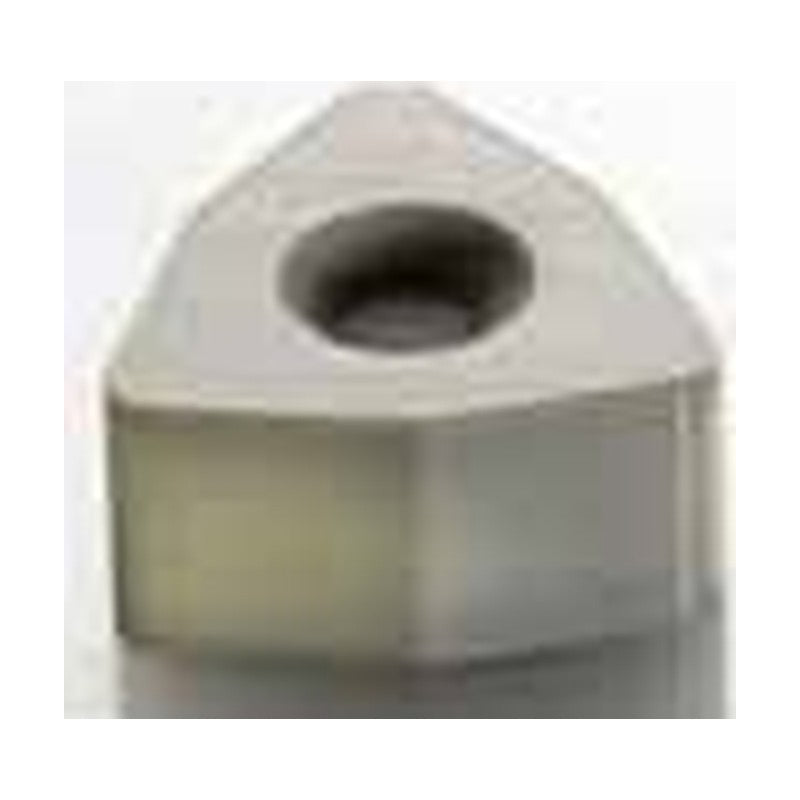

Korloy Ceramic Turning Insert WNGX

Korloy Ceramic Turning Insert WNGX

80° trigon ceramic turning insert (ISO WNGX), negative (0° clearance), for cast iron and heat-resistant alloys.

Key features

  • Grades offered: CSN20, CSN40, CSN50, CSN60, CSN80
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
WNGX080708 CSN40 ASA: WNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
WNGX080712 CSN20 ASA: WNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
WNGX080712 CSN40 ASA: WNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
WNGX080712 CSN50 ASA: WNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
WNGX080712 CSN60 ASA: WNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
WNGX080712 CSN80 ASA: WNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
WNGX080716 CSN40 ASA: WNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert WNGX

Brand Korloy·Turning Inserts

Available part numbers (7)

WNGX080708 CSN40, WNGX080712 CSN20, WNGX080712 CSN40, WNGX080712 CSN50, WNGX080712 CSN60, WNGX080712 CSN80, WNGX080716 CSN40

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WNGX080708 CSN40ASA: WNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
WNGX080712 CSN20ASA: WNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
WNGX080712 CSN40ASA: WNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
WNGX080712 CSN50ASA: WNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
WNGX080712 CSN60ASA: WNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
WNGX080712 CSN80ASA: WNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
WNGX080716 CSN40ASA: WNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
