Korloy Diamond Coated Ball End Mill DBE2000

Korloy Diamond Coated Ball End Mill DBE2000

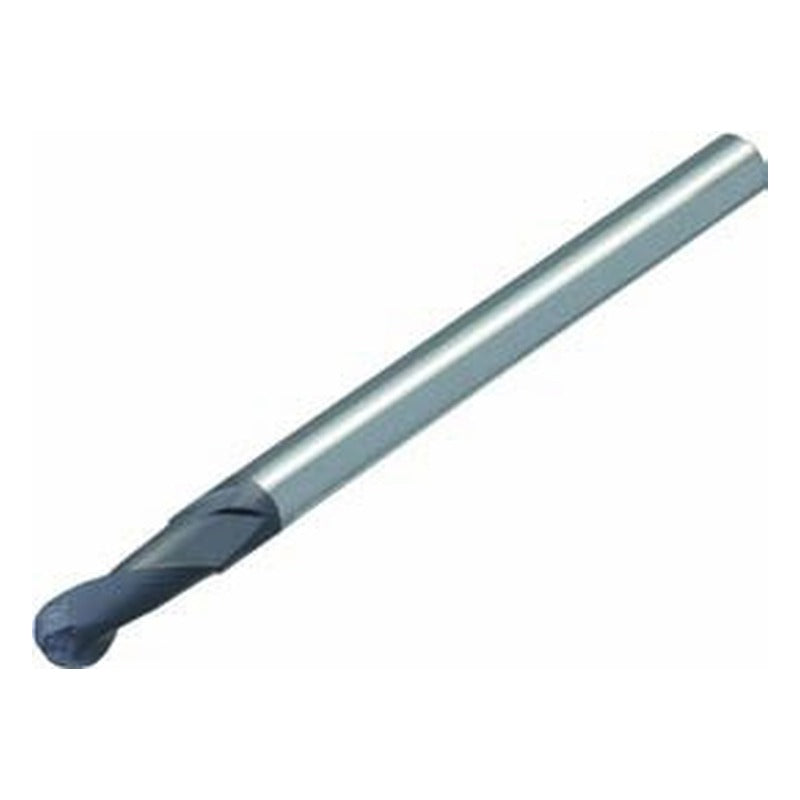

CVD diamond coated 2-flute ball end mill for graphite and non-ferrous metal machining.

Key features

  • CVD nano-sized diamond coating (ND3000)
  • For graphite and non-ferrous metal machining
  • 10~20 times longer tool life than uncoated end mills
  • 2 flutes, 30 degree helix

Specifications

Coating Diamond (ND3000)
Flutes 2
Helix angle 30°
DBE2040-070 R (mm): 2 | D (mm): 4 | Shank dia. d (mm): 6 | l (mm): 12 | L (mm): 70
DBE2060-080 R (mm): 3 | D (mm): 6 | Shank dia. d (mm): 6 | l (mm): 15 | L (mm): 80
DBE2080-090 R (mm): 4 | D (mm): 8 | Shank dia. d (mm): 8 | l (mm): 20 | L (mm): 90
Ball End MillsKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Diamond Coated Ball End Mill DBE2000

Brand Korloy·Ball End Mills

Available part numbers (3)

DBE2040-070, DBE2060-080, DBE2080-090

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DBE2040-070R (mm): 2 | D (mm): 4 | Shank dia. d (mm): 6 | l (mm): 12 | L (mm): 70
DBE2060-080R (mm): 3 | D (mm): 6 | Shank dia. d (mm): 6 | l (mm): 15 | L (mm): 80
DBE2080-090R (mm): 4 | D (mm): 8 | Shank dia. d (mm): 8 | l (mm): 20 | L (mm): 90
