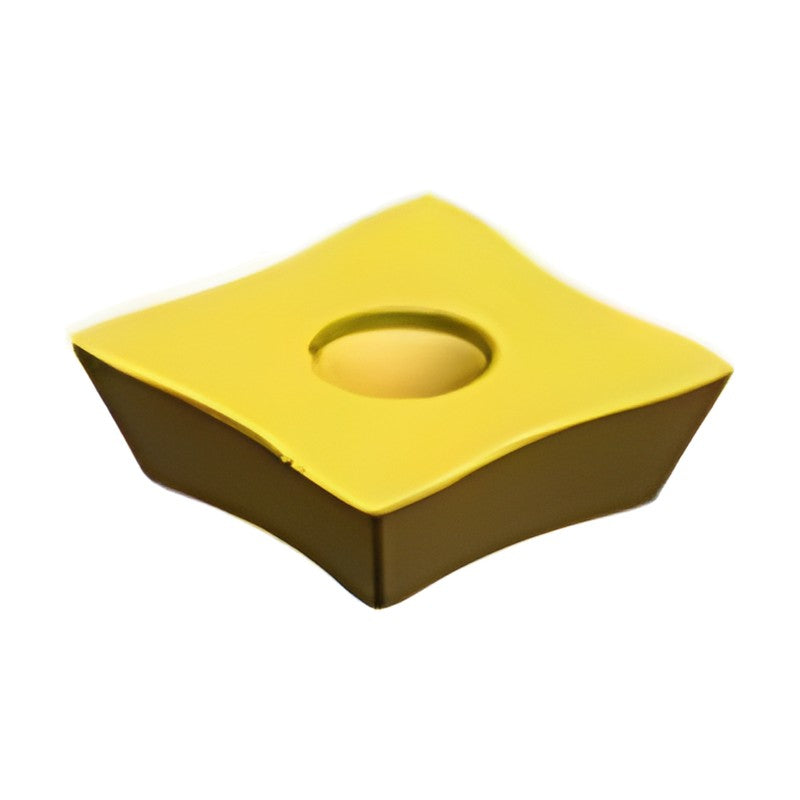

Korloy External Bead Removal Insert SEGW

Korloy External Bead Removal Insert SEGW

Square 20° positive SEGW insert with concave profile radius for external (O.D.) weld bead trimming of pipe.

Key features

  • Removes weld bead after longitudinal welding of pipe
  • Wide range of profile radii to match pipe diameter
  • Grades resist plastic deformation and edge breakage

Specifications

Application External (O.D.) bead removal
Recommended grades NC5330 (main) / NC5340 / PC5300
r 0.8 mm
SEGW 8R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 8 mm | d1: 6.5 mm
SEGW 10R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 10 mm | d1: 6.5 mm
SEGW 12R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 12 mm | d1: 6.5 mm
SEGW 13R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 13 mm | d1: 6.5 mm
SEGW 14R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 14 mm | d1: 6.5 mm
SEGW 15R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 15 mm | d1: 6.5 mm
SEGW 16R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 16 mm | d1: 6.5 mm
SEGW 18R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 18 mm | d1: 6.5 mm
SEGW 20R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 20 mm | d1: 6.5 mm
SEGW 23R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 23 mm | d1: 6.5 mm
SEGW 25R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 25 mm | d1: 6.5 mm
SEGW 28R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 28 mm | d1: 6.5 mm
SEGW 30R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 30 mm | d1: 6.5 mm
SEGW 32R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 32 mm | d1: 6.5 mm
SEGW 35R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 35 mm | d1: 6.5 mm
SEGW 38R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 38 mm | d1: 6.5 mm
SEGW 40R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 40 mm | d1: 6.5 mm
SEGW 43R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 43 mm | d1: 6.5 mm
SEGW 45R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 45 mm | d1: 6.5 mm
SEGW 50R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 50 mm | d1: 6.5 mm
SEGW 55R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 55 mm | d1: 6.5 mm
SEGW 60R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 60 mm | d1: 6.5 mm
SEGW 70R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 70 mm | d1: 6.5 mm
SEGW 80R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 80 mm | d1: 6.5 mm
SEGW 100R l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 100 mm | d1: 6.5 mm
SEGW54-12R l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 12 mm | d1: 5.6 mm
SEGW54-16R l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 16 mm | d1: 5.6 mm
SEGW54-18R l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 18 mm | d1: 5.6 mm
SEGW54-20R l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 20 mm | d1: 5.6 mm
SEGW54-25R l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 25 mm | d1: 5.6 mm
SEGW54-60R l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 60 mm | d1: 5.6 mm
SEGW54-R15 l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 15 mm | d1: 5.6 mm
SEGW54-R20 l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 20 mm | d1: 5.6 mm
SEGW54-R25 l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 25 mm | d1: 5.6 mm
SEGW54-R30 l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 30 mm | d1: 5.6 mm
SEGW54-R40 l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 40 mm | d1: 5.6 mm
SEGW54-R45 l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 45 mm | d1: 5.6 mm
SEGW54-R50 l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 50 mm | d1: 5.6 mm
Bead Removal InsertsKorloy
38 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy External Bead Removal Insert SEGW

Brand Korloy·Bead Removal Inserts

Available part numbers (38)

SEGW 8R, SEGW 10R, SEGW 12R, SEGW 13R, SEGW 14R, SEGW 15R, SEGW 16R, SEGW 18R, SEGW 20R, SEGW 23R + 28 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SEGW 8Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 8 mm | d1: 6.5 mm
SEGW 10Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 10 mm | d1: 6.5 mm
SEGW 12Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 12 mm | d1: 6.5 mm
SEGW 13Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 13 mm | d1: 6.5 mm
SEGW 14Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 14 mm | d1: 6.5 mm
SEGW 15Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 15 mm | d1: 6.5 mm
SEGW 16Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 16 mm | d1: 6.5 mm
SEGW 18Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 18 mm | d1: 6.5 mm
SEGW 20Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 20 mm | d1: 6.5 mm
SEGW 23Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 23 mm | d1: 6.5 mm
SEGW 25Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 25 mm | d1: 6.5 mm
SEGW 28Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 28 mm | d1: 6.5 mm
SEGW 30Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 30 mm | d1: 6.5 mm
SEGW 32Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 32 mm | d1: 6.5 mm
SEGW 35Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 35 mm | d1: 6.5 mm
SEGW 38Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 38 mm | d1: 6.5 mm
SEGW 40Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 40 mm | d1: 6.5 mm
SEGW 43Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 43 mm | d1: 6.5 mm
SEGW 45Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 45 mm | d1: 6.5 mm
SEGW 50Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 50 mm | d1: 6.5 mm
SEGW 55Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 55 mm | d1: 6.5 mm
SEGW 60Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 60 mm | d1: 6.5 mm
SEGW 70Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 70 mm | d1: 6.5 mm
SEGW 80Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 80 mm | d1: 6.5 mm
SEGW 100Rl: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 100 mm | d1: 6.5 mm
SEGW54-12Rl: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 12 mm | d1: 5.6 mm
SEGW54-16Rl: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 16 mm | d1: 5.6 mm
SEGW54-18Rl: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 18 mm | d1: 5.6 mm
SEGW54-20Rl: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 20 mm | d1: 5.6 mm
SEGW54-25Rl: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 25 mm | d1: 5.6 mm
SEGW54-60Rl: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 60 mm | d1: 5.6 mm
SEGW54-R15l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 15 mm | d1: 5.6 mm
SEGW54-R20l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 20 mm | d1: 5.6 mm
SEGW54-R25l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 25 mm | d1: 5.6 mm
SEGW54-R30l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 30 mm | d1: 5.6 mm
SEGW54-R40l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 40 mm | d1: 5.6 mm
SEGW54-R45l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 45 mm | d1: 5.6 mm
SEGW54-R50l: 15.875 mm | d: 15.875 mm | t: 6.35 mm | r: 0.8 mm | Profile R: 50 mm | d1: 5.6 mm
