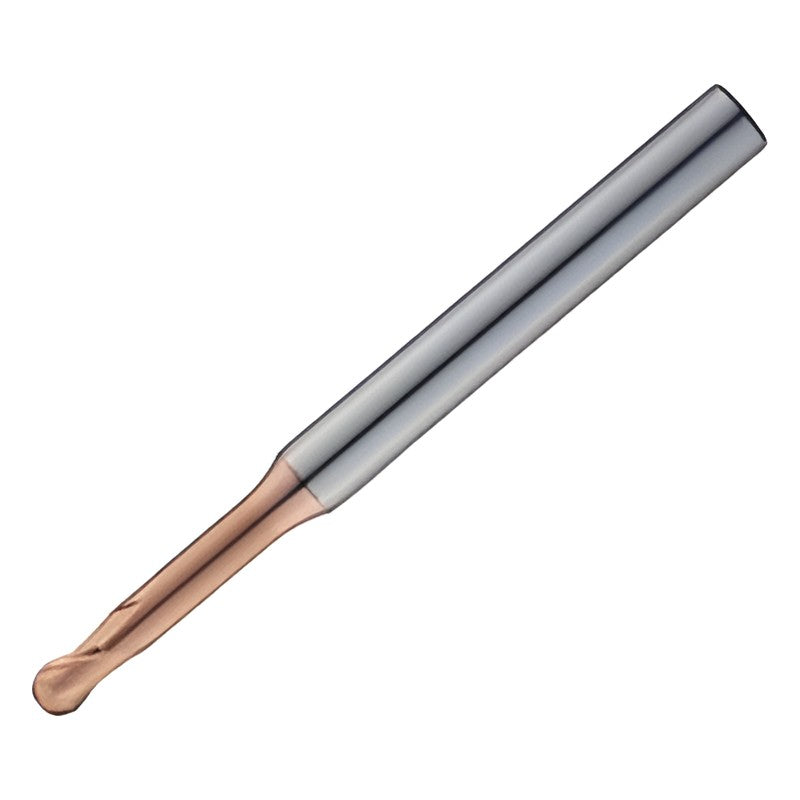

Korloy H-Star Long Neck Ball End Mill ESLNB

Korloy H-Star Long Neck Ball End Mill ESLNB

Ultra-fine grain carbide 2-flute long-neck ball end mill for high-speed cutting of hardened steels HRC50~63.

Key features

  • Long neck ball type for deep rib and mold machining
  • AlTiN coating, grade PC305H
  • Ultra-fine substrate for stronger cutting edge
  • Effective neck length given for 0.5°~3° inclination angles
  • h5 shank
  • R tolerance ±0.005 mm

Specifications

Series ESLNB
Shape Long neck ball
Flutes 2
Helix angle 30°
Coating AlTiN
Grade PC305H
Shank tolerance h5
DC tolerance (mm) 0.000 ~ -0.015
R tolerance (mm) ±0.005
ESLNB2001-0.2 Ball radius RE (mm): 0.05 | Cutting diameter DC (mm): 0.1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.08 | Neck length LU (mm): 0.2 | Neck diameter DN (mm): 0.08 | Neck taper angle θ (°): 11.8 | Overall length LF (mm): 45 | Effective length at 0.5° (mm): 0.3 | Effective length at 1° (mm): 0.3 | Effective length at 1.5° (mm): 0.3 | Effective length at 2° (mm): 0.4 | Effective length at 3° (mm): 0.4
ESLNB2001-0.3 Ball radius RE (mm): 0.05 | Cutting diameter DC (mm): 0.1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.08 | Neck length LU (mm): 0.3 | Neck diameter DN (mm): 0.08 | Neck taper angle θ (°): 11.7 | Overall length LF (mm): 45 | Effective length at 0.5° (mm): 0.4 | Effective length at 1° (mm): 0.4 | Effective length at 1.5° (mm): 0.5 | Effective length at 2° (mm): 0.5 | Effective length at 3° (mm): 0.5
ESLNB2001-0.5 Ball radius RE (mm): 0.05 | Cutting diameter DC (mm): 0.1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.08 | Neck length LU (mm): 0.5 | Neck diameter DN (mm): 0.08 | Neck taper angle θ (°): 11.4 | Overall length LF (mm): 45 | Effective length at 0.5° (mm): 0.6 | Effective length at 1° (mm): 0.7 | Effective length at 1.5° (mm): 0.7 | Effective length at 2° (mm): 0.7 | Effective length at 3° (mm): 0.8
ESLNB2002-0.5 Ball radius RE (mm): 0.1 | Cutting diameter DC (mm): 0.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.15 | Neck length LU (mm): 0.5 | Neck diameter DN (mm): 0.17 | Neck taper angle θ (°): 11.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 1.2 | Effective length at 1° (mm): 1.3 | Effective length at 1.5° (mm): 1.5 | Effective length at 2° (mm): 1.6 | Effective length at 3° (mm): 2
ESLNB2002-1 Ball radius RE (mm): 0.1 | Cutting diameter DC (mm): 0.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.15 | Neck length LU (mm): 1 | Neck diameter DN (mm): 0.17 | Neck taper angle θ (°): 10.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 1.7 | Effective length at 1° (mm): 1.9 | Effective length at 1.5° (mm): 2.1 | Effective length at 2° (mm): 2.3 | Effective length at 3° (mm): 2.7
ESLNB2002-1.5 Ball radius RE (mm): 0.1 | Cutting diameter DC (mm): 0.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.15 | Neck length LU (mm): 1.5 | Neck diameter DN (mm): 0.17 | Neck taper angle θ (°): 10.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.3 | Effective length at 1° (mm): 2.5 | Effective length at 1.5° (mm): 2.8 | Effective length at 2° (mm): 3 | Effective length at 3° (mm): 3.4
ESLNB2002-2 Ball radius RE (mm): 0.1 | Cutting diameter DC (mm): 0.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.15 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.17 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.8 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.4 | Effective length at 2° (mm): 3.6 | Effective length at 3° (mm): 4.1
ESLNB2002-2.5 Ball radius RE (mm): 0.1 | Cutting diameter DC (mm): 0.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.15 | Neck length LU (mm): 2.5 | Neck diameter DN (mm): 0.17 | Neck taper angle θ (°): 9.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.4 | Effective length at 1° (mm): 3.7 | Effective length at 1.5° (mm): 4 | Effective length at 2° (mm): 4.2 | Effective length at 3° (mm): 4.7
ESLNB2002-3.0 Ball radius RE (mm): 0.1 | Cutting diameter DC (mm): 0.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.15 | Neck length LU (mm): 3 | Neck diameter DN (mm): 0.17 | Neck taper angle θ (°): 9.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.9 | Effective length at 1° (mm): 4.3 | Effective length at 1.5° (mm): 4.6 | Effective length at 2° (mm): 4.9 | Effective length at 3° (mm): 5.4
ESLNB2003-1 Ball radius RE (mm): 0.15 | Cutting diameter DC (mm): 0.3 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.25 | Neck length LU (mm): 1 | Neck diameter DN (mm): 0.27 | Neck taper angle θ (°): 10.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 1.7 | Effective length at 1° (mm): 1.9 | Effective length at 1.5° (mm): 2.1 | Effective length at 2° (mm): 2.3 | Effective length at 3° (mm): 2.7
ESLNB2003-1.5 Ball radius RE (mm): 0.15 | Cutting diameter DC (mm): 0.3 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.25 | Neck length LU (mm): 1.5 | Neck diameter DN (mm): 0.27 | Neck taper angle θ (°): 10.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.3 | Effective length at 1° (mm): 2.5 | Effective length at 1.5° (mm): 2.7 | Effective length at 2° (mm): 3 | Effective length at 3° (mm): 3.4
ESLNB2003-2 Ball radius RE (mm): 0.15 | Cutting diameter DC (mm): 0.3 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.25 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.27 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.8 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.4 | Effective length at 2° (mm): 3.6 | Effective length at 3° (mm): 4
ESLNB2003-2.5 Ball radius RE (mm): 0.15 | Cutting diameter DC (mm): 0.3 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.25 | Neck length LU (mm): 2.5 | Neck diameter DN (mm): 0.27 | Neck taper angle θ (°): 9.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.4 | Effective length at 1° (mm): 3.7 | Effective length at 1.5° (mm): 4 | Effective length at 2° (mm): 4.2 | Effective length at 3° (mm): 4.7
ESLNB2003-3 Ball radius RE (mm): 0.15 | Cutting diameter DC (mm): 0.3 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.25 | Neck length LU (mm): 3 | Neck diameter DN (mm): 0.27 | Neck taper angle θ (°): 9.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.9 | Effective length at 1° (mm): 4.3 | Effective length at 1.5° (mm): 4.6 | Effective length at 2° (mm): 4.8 | Effective length at 3° (mm): 5.3
ESLNB2004-1 Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 1 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 11 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 1.7 | Effective length at 1° (mm): 1.9 | Effective length at 1.5° (mm): 2.1 | Effective length at 2° (mm): 2.3 | Effective length at 3° (mm): 2.7
ESLNB2004-1.5 Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 1.5 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 10.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.3 | Effective length at 1° (mm): 2.5 | Effective length at 1.5° (mm): 2.7 | Effective length at 2° (mm): 2.9 | Effective length at 3° (mm): 3.4
ESLNB2004-2 Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.8 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.4 | Effective length at 2° (mm): 3.6 | Effective length at 3° (mm): 4
ESLNB2004-2.5 Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 2.5 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 9.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.4 | Effective length at 1° (mm): 3.7 | Effective length at 1.5° (mm): 4 | Effective length at 2° (mm): 4.2 | Effective length at 3° (mm): 4.7
ESLNB2004-3 Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 3 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 9.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.9 | Effective length at 1° (mm): 4.3 | Effective length at 1.5° (mm): 4.6 | Effective length at 2° (mm): 4.8 | Effective length at 3° (mm): 5.3
ESLNB2004-3.5 Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 3.5 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 8.7 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 4.5 | Effective length at 1° (mm): 4.8 | Effective length at 1.5° (mm): 5.2 | Effective length at 2° (mm): 5.4 | Effective length at 3° (mm): 6
ESLNB2004-4 Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 4 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 8.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.6
ESLNB2004-4.5 Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 4.5 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 8 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5.6 | Effective length at 1° (mm): 6 | Effective length at 1.5° (mm): 6.3 | Effective length at 2° (mm): 6.6 | Effective length at 3° (mm): 7.2
ESLNB2005-1 Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 1 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 11 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 1.7 | Effective length at 1° (mm): 1.9 | Effective length at 1.5° (mm): 2.1 | Effective length at 2° (mm): 2.3 | Effective length at 3° (mm): 2.6
ESLNB2005-2 Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.8 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.3 | Effective length at 2° (mm): 3.6 | Effective length at 3° (mm): 4
ESLNB2005-3 Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 3 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.9 | Effective length at 1° (mm): 4.3 | Effective length at 1.5° (mm): 4.6 | Effective length at 2° (mm): 4.8 | Effective length at 3° (mm): 5.3
ESLNB2005-4 Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 4 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 8.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.6
ESLNB2005-5 Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 5 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 7.7 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 6.1 | Effective length at 1° (mm): 6.5 | Effective length at 1.5° (mm): 6.9 | Effective length at 2° (mm): 7.2 | Effective length at 3° (mm): 7.8
ESLNB2005-6 Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 6 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 7.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.2 | Effective length at 1° (mm): 7.6 | Effective length at 1.5° (mm): 8 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2005-8 Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 8 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 6.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.3 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.4
ESLNB2006-1 Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 1 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 11 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 1.7 | Effective length at 1° (mm): 1.9 | Effective length at 1.5° (mm): 2.1 | Effective length at 2° (mm): 2.3 | Effective length at 3° (mm): 2.6
ESLNB2006-2 Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.8 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.3 | Effective length at 2° (mm): 3.6 | Effective length at 3° (mm): 4
ESLNB2006-3 Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 3 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.9 | Effective length at 1° (mm): 4.3 | Effective length at 1.5° (mm): 4.5 | Effective length at 2° (mm): 4.8 | Effective length at 3° (mm): 5.3
ESLNB2006-4 Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 4 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 8.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.6
ESLNB2006-5 Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 5 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 7.6 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 6.1 | Effective length at 1° (mm): 6.5 | Effective length at 1.5° (mm): 6.9 | Effective length at 2° (mm): 7.2 | Effective length at 3° (mm): 7.8
ESLNB2006-6 Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 6 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 7.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.2 | Effective length at 1° (mm): 7.6 | Effective length at 1.5° (mm): 8 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2006-7 Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 7 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 6.6 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 8.3 | Effective length at 1° (mm): 8.8 | Effective length at 1.5° (mm): 9.2 | Effective length at 2° (mm): 9.5 | Effective length at 3° (mm): 10.2
ESLNB2006-8 Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 8 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 6.2 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.3 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.4
ESLNB2006-9 Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 9 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 5.8 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 10.4 | Effective length at 1° (mm): 10.9 | Effective length at 1.5° (mm): 11.4 | Effective length at 2° (mm): 11.8 | Effective length at 3° (mm): 12.5
ESLNB2006-10 Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 10 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 5.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.4 | Effective length at 1° (mm): 12 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.7
ESLNB2006-12 Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 12 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 13.6 | Effective length at 1° (mm): 14.2 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 16
ESLNB2008-2 Ball radius RE (mm): 0.4 | Cutting diameter DC (mm): 0.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.5 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.77 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.8 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.3 | Effective length at 2° (mm): 3.5 | Effective length at 3° (mm): 4
ESLNB2008-4 Ball radius RE (mm): 0.4 | Cutting diameter DC (mm): 0.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.5 | Neck length LU (mm): 4 | Neck diameter DN (mm): 0.77 | Neck taper angle θ (°): 8.2 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.5
ESLNB2008-5 Ball radius RE (mm): 0.4 | Cutting diameter DC (mm): 0.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.5 | Neck length LU (mm): 5 | Neck diameter DN (mm): 0.77 | Neck taper angle θ (°): 7.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 6.1 | Effective length at 1° (mm): 6.5 | Effective length at 1.5° (mm): 6.9 | Effective length at 2° (mm): 7.2 | Effective length at 3° (mm): 7.8
ESLNB2008-6 Ball radius RE (mm): 0.4 | Cutting diameter DC (mm): 0.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.5 | Neck length LU (mm): 6 | Neck diameter DN (mm): 0.77 | Neck taper angle θ (°): 7 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.2 | Effective length at 1° (mm): 7.6 | Effective length at 1.5° (mm): 8 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2008-8 Ball radius RE (mm): 0.4 | Cutting diameter DC (mm): 0.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.5 | Neck length LU (mm): 8 | Neck diameter DN (mm): 0.77 | Neck taper angle θ (°): 6.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.3 | Effective length at 1° (mm): 9.8 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2008-10 Ball radius RE (mm): 0.4 | Cutting diameter DC (mm): 0.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.5 | Neck length LU (mm): 10 | Neck diameter DN (mm): 0.77 | Neck taper angle θ (°): 5.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.4 | Effective length at 1° (mm): 12 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.7
ESLNB2010-2 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.9 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.3 | Effective length at 2° (mm): 3.5 | Effective length at 3° (mm): 4
ESLNB2010-3 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 3 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 8.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 4 | Effective length at 1° (mm): 4.3 | Effective length at 1.5° (mm): 4.5 | Effective length at 2° (mm): 4.8 | Effective length at 3° (mm): 5.3
ESLNB2010-4 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 4 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 8.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.5
ESLNB2010-5 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 5 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 7.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 6.1 | Effective length at 1° (mm): 6.5 | Effective length at 1.5° (mm): 6.9 | Effective length at 2° (mm): 7.2 | Effective length at 3° (mm): 7.8
ESLNB2010-6 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 6 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 6.8 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.2 | Effective length at 1° (mm): 7.7 | Effective length at 1.5° (mm): 8 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2010-7 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 7 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 6.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 8.3 | Effective length at 1° (mm): 8.8 | Effective length at 1.5° (mm): 9.2 | Effective length at 2° (mm): 9.5 | Effective length at 3° (mm): 10.2
ESLNB2010-8 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 8 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 5.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.3 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2010-9 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 9 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 5.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 10.4 | Effective length at 1° (mm): 11 | Effective length at 1.5° (mm): 11.4 | Effective length at 2° (mm): 11.8 | Effective length at 3° (mm): 12.5
ESLNB2010-10 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 10 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 5.2 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.5 | Effective length at 1° (mm): 12 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.7
ESLNB2010-12 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 12 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 4.6 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.6 | Effective length at 1° (mm): 14.2 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2010-14 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 14 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 4.2 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 15.7 | Effective length at 1° (mm): 16.4 | Effective length at 1.5° (mm): 16.9 | Effective length at 2° (mm): 17.4 | Effective length at 3° (mm): 18.5
ESLNB2010-16 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 16 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 3.8 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.8 | Effective length at 1° (mm): 18.5 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): 21.2
ESLNB2010-18 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 18 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 3.5 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 19.9 | Effective length at 1° (mm): 20.7 | Effective length at 1.5° (mm): 21.3 | Effective length at 2° (mm): 21.8 | Effective length at 3° (mm): 23.8
ESLNB2010-20 Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 20 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 3.3 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 22 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.4 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): 26.5
ESLNB2012-4 Ball radius RE (mm): 0.6 | Cutting diameter DC (mm): 1.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.1 | Neck length LU (mm): 4 | Neck diameter DN (mm): 1.15 | Neck taper angle θ (°): 7.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5.1 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.5
ESLNB2012-6 Ball radius RE (mm): 0.6 | Cutting diameter DC (mm): 1.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.1 | Neck length LU (mm): 6 | Neck diameter DN (mm): 1.15 | Neck taper angle θ (°): 6.6 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.2 | Effective length at 1° (mm): 7.7 | Effective length at 1.5° (mm): 8 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2012-8 Ball radius RE (mm): 0.6 | Cutting diameter DC (mm): 1.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.1 | Neck length LU (mm): 8 | Neck diameter DN (mm): 1.15 | Neck taper angle θ (°): 5.7 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.4 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2012-10 Ball radius RE (mm): 0.6 | Cutting diameter DC (mm): 1.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.1 | Neck length LU (mm): 10 | Neck diameter DN (mm): 1.15 | Neck taper angle θ (°): 5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.5 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.7
ESLNB2012-12 Ball radius RE (mm): 0.6 | Cutting diameter DC (mm): 1.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.1 | Neck length LU (mm): 12 | Neck diameter DN (mm): 1.15 | Neck taper angle θ (°): 4.5 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.6 | Effective length at 1° (mm): 14.2 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2014-8 Ball radius RE (mm): 0.7 | Cutting diameter DC (mm): 1.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.3 | Neck length LU (mm): 8 | Neck diameter DN (mm): 1.34 | Neck taper angle θ (°): 5.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.4 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2014-12 Ball radius RE (mm): 0.7 | Cutting diameter DC (mm): 1.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.3 | Neck length LU (mm): 12 | Neck diameter DN (mm): 1.34 | Neck taper angle θ (°): 4.3 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.6 | Effective length at 1° (mm): 14.2 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2014-16 Ball radius RE (mm): 0.7 | Cutting diameter DC (mm): 1.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.3 | Neck length LU (mm): 16 | Neck diameter DN (mm): 1.34 | Neck taper angle θ (°): 3.5 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.8 | Effective length at 1° (mm): 18.5 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): 21.2
ESLNB2015-4 Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 4 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 7.7 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5.1 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.5
ESLNB2015-6 Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 6 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 6.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.3 | Effective length at 1° (mm): 7.7 | Effective length at 1.5° (mm): 8 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2015-8 Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 8 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 5.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.4 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2015-10 Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 10 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 4.7 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.5 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.7
ESLNB2015-12 Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 12 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 4.2 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.6 | Effective length at 1° (mm): 14.2 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2015-14 Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 14 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 3.8 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 15.7 | Effective length at 1° (mm): 16.4 | Effective length at 1.5° (mm): 16.9 | Effective length at 2° (mm): 17.4 | Effective length at 3° (mm): 18.5
ESLNB2015-16 Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 16 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 3.4 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.8 | Effective length at 1° (mm): 18.5 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): 21.1
ESLNB2015-20 Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 20 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 2.9 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 22 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.4 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): -
ESLNB2016-8 Ball radius RE (mm): 0.8 | Cutting diameter DC (mm): 1.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.4 | Neck length LU (mm): 8 | Neck diameter DN (mm): 1.54 | Neck taper angle θ (°): 5.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.4 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2016-10 Ball radius RE (mm): 0.8 | Cutting diameter DC (mm): 1.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.4 | Neck length LU (mm): 10 | Neck diameter DN (mm): 1.54 | Neck taper angle θ (°): 4.6 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 11.5 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.7
ESLNB2016-12 Ball radius RE (mm): 0.8 | Cutting diameter DC (mm): 1.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.4 | Neck length LU (mm): 12 | Neck diameter DN (mm): 1.54 | Neck taper angle θ (°): 4.1 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.6 | Effective length at 1° (mm): 14.2 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2016-16 Ball radius RE (mm): 0.8 | Cutting diameter DC (mm): 1.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.4 | Neck length LU (mm): 16 | Neck diameter DN (mm): 1.54 | Neck taper angle θ (°): 3.3 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.8 | Effective length at 1° (mm): 18.5 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): 21.1
ESLNB2016-20 Ball radius RE (mm): 0.8 | Cutting diameter DC (mm): 1.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.4 | Neck length LU (mm): 20 | Neck diameter DN (mm): 1.54 | Neck taper angle θ (°): 2.8 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 22 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.4 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): -
ESLNB2018-8 Ball radius RE (mm): 0.9 | Cutting diameter DC (mm): 1.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.6 | Neck length LU (mm): 8 | Neck diameter DN (mm): 1.73 | Neck taper angle θ (°): 5.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.4 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2018-12 Ball radius RE (mm): 0.9 | Cutting diameter DC (mm): 1.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.6 | Neck length LU (mm): 12 | Neck diameter DN (mm): 1.73 | Neck taper angle θ (°): 3.9 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.7 | Effective length at 1° (mm): 14.3 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2018-16 Ball radius RE (mm): 0.9 | Cutting diameter DC (mm): 1.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.6 | Neck length LU (mm): 16 | Neck diameter DN (mm): 1.73 | Neck taper angle θ (°): 3.1 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.9 | Effective length at 1° (mm): 18.6 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): 21.1
ESLNB2018-20 Ball radius RE (mm): 0.9 | Cutting diameter DC (mm): 1.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.6 | Neck length LU (mm): 20 | Neck diameter DN (mm): 1.73 | Neck taper angle θ (°): 2.6 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 22 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.4 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): -
ESLNB2020-3 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.7 | Neck length LU (mm): 3 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 8.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 4.1 | Effective length at 1° (mm): 4.4 | Effective length at 1.5° (mm): 4.6 | Effective length at 2° (mm): 4.8 | Effective length at 3° (mm): 5.2
ESLNB2020-4 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 4 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 7.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5.2 | Effective length at 1° (mm): 5.5 | Effective length at 1.5° (mm): 5.8 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.5
ESLNB2020-6 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 6 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 5.8 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.3 | Effective length at 1° (mm): 7.7 | Effective length at 1.5° (mm): 8.1 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2020-8 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 8 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 4.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.5 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2020-10 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 10 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 4.2 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.6 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.6 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.6
ESLNB2020-12 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 12 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 3.7 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.7 | Effective length at 1° (mm): 14.3 | Effective length at 1.5° (mm): 14.8 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2020-14 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 14 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 3.2 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 15.8 | Effective length at 1° (mm): 16.4 | Effective length at 1.5° (mm): 16.9 | Effective length at 2° (mm): 17.4 | Effective length at 3° (mm): 18.5
ESLNB2020-16 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 16 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 2.9 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.9 | Effective length at 1° (mm): 18.6 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): -
ESLNB2020-18 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 18 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 2.7 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 20 | Effective length at 1° (mm): 20.7 | Effective length at 1.5° (mm): 21.3 | Effective length at 2° (mm): 21.8 | Effective length at 3° (mm): -
ESLNB2020-20 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 20 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 2.4 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.4 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): -
ESLNB2020-22 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 22 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 2.3 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 24.1 | Effective length at 1° (mm): 24.9 | Effective length at 1.5° (mm): 25.6 | Effective length at 2° (mm): 26.3 | Effective length at 3° (mm): -
ESLNB2020-25 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 25 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 2 | Overall length LF (mm): 65 | Effective length at 0.5° (mm): 27.3 | Effective length at 1° (mm): 28.1 | Effective length at 1.5° (mm): 28.8 | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2020-30 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 30 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 1.7 | Overall length LF (mm): 70 | Effective length at 0.5° (mm): 32.4 | Effective length at 1° (mm): 33.4 | Effective length at 1.5° (mm): 34.2 | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2020-35 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 35 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 1.5 | Overall length LF (mm): 75 | Effective length at 0.5° (mm): 37.6 | Effective length at 1° (mm): 38.6 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2020-40 Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 40 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 1.4 | Overall length LF (mm): 80 | Effective length at 0.5° (mm): 42.8 | Effective length at 1° (mm): 43.8 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2025-10 Ball radius RE (mm): 1.25 | Cutting diameter DC (mm): 2.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 4 | Neck length LU (mm): 10 | Neck diameter DN (mm): 2.4 | Neck taper angle θ (°): 3.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.6 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.6 | Effective length at 2° (mm): 13 | Effective length at 3° (mm): 13.6
ESLNB2025-16 Ball radius RE (mm): 1.25 | Cutting diameter DC (mm): 2.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 4 | Neck length LU (mm): 16 | Neck diameter DN (mm): 2.4 | Neck taper angle θ (°): 2.3 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.9 | Effective length at 1° (mm): 18.6 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): -
ESLNB2025-20 Ball radius RE (mm): 1.25 | Cutting diameter DC (mm): 2.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 4 | Neck length LU (mm): 20 | Neck diameter DN (mm): 2.4 | Neck taper angle θ (°): 1.9 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2030-8 Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 8 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 6.2 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 9.6 | Effective length at 1° (mm): 10 | Effective length at 1.5° (mm): 10.4 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2030-10 Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 10 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 5.5 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 11.7 | Effective length at 1° (mm): 12.2 | Effective length at 1.5° (mm): 12.6 | Effective length at 2° (mm): 13 | Effective length at 3° (mm): 13.6
ESLNB2030-13 Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 13 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 4.6 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 14.8 | Effective length at 1° (mm): 15.4 | Effective length at 1.5° (mm): 15.9 | Effective length at 2° (mm): 16.3 | Effective length at 3° (mm): 17.1
ESLNB2030-16 Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 16 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 4 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 18 | Effective length at 1° (mm): 18.6 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): 21.1
ESLNB2030-18 Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 18 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 3.6 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 20 | Effective length at 1° (mm): 20.7 | Effective length at 1.5° (mm): 21.3 | Effective length at 2° (mm): 21.8 | Effective length at 3° (mm): 23.7
ESLNB2030-20 Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 20 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 3.4 | Overall length LF (mm): 65 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.9 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): 26.4
ESLNB2030-25 Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 25 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 2.8 | Overall length LF (mm): 70 | Effective length at 0.5° (mm): 27.3 | Effective length at 1° (mm): 28.2 | Effective length at 1.5° (mm): 28.8 | Effective length at 2° (mm): 29.9 | Effective length at 3° (mm): -
ESLNB2030-30 Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 30 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 2.2 | Overall length LF (mm): 75 | Effective length at 0.5° (mm): 32.5 | Effective length at 1° (mm): 33.4 | Effective length at 1.5° (mm): 34.3 | Effective length at 2° (mm): 35.9 | Effective length at 3° (mm): -
ESLNB2030-35 Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 35 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 4.5 | Overall length LF (mm): 80 | Effective length at 0.5° (mm): 37.7 | Effective length at 1° (mm): 38.7 | Effective length at 1.5° (mm): 40 | Effective length at 2° (mm): 41.9 | Effective length at 3° (mm): -
ESLNB2040-10 Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 10 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 3.6 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 11.6 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.5
ESLNB2040-13 Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 13 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 3.1 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 14.7 | Effective length at 1° (mm): 15.3 | Effective length at 1.5° (mm): 15.8 | Effective length at 2° (mm): 16.2 | Effective length at 3° (mm): 17
ESLNB2040-16 Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 16 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 2.5 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 17.9 | Effective length at 1° (mm): 18.5 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.5 | Effective length at 3° (mm): 20.9
ESLNB2040-20 Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 20 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 2.1 | Overall length LF (mm): 65 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.4 | Effective length at 2° (mm): 23.9 | Effective length at 3° (mm): -
ESLNB2040-25 Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 25 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 1.8 | Overall length LF (mm): 70 | Effective length at 0.5° (mm): 27.3 | Effective length at 1° (mm): 28.1 | Effective length at 1.5° (mm): 28.8 | Effective length at 2° (mm): 29.8 | Effective length at 3° (mm): -
ESLNB2040-30 Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 30 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 1.6 | Overall length LF (mm): 75 | Effective length at 0.5° (mm): 32.4 | Effective length at 1° (mm): 33.4 | Effective length at 1.5° (mm): 34.2 | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2040-35 Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 35 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 1.4 | Overall length LF (mm): 80 | Effective length at 0.5° (mm): 37.6 | Effective length at 1° (mm): 38.6 | Effective length at 1.5° (mm): 39.9 | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2040-40 Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 40 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 1.2 | Overall length LF (mm): 80 | Effective length at 0.5° (mm): 42.8 | Effective length at 1° (mm): 43.8 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2040-45 Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 45 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 1.1 | Overall length LF (mm): 90 | Effective length at 0.5° (mm): 47.9 | Effective length at 1° (mm): 49.1 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2040-50 Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 50 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 1.4 | Overall length LF (mm): 100 | Effective length at 0.5° (mm): 53.1 | Effective length at 1° (mm): 54.5 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2050-20 Ball radius RE (mm): 2.5 | Cutting diameter DC (mm): 5 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 6 | Neck length LU (mm): 20 | Neck diameter DN (mm): 4.9 | Neck taper angle θ (°): 1.2 | Overall length LF (mm): 65 | Effective length at 0.5° (mm): 22 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2050-25 Ball radius RE (mm): 2.5 | Cutting diameter DC (mm): 5 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 6 | Neck length LU (mm): 25 | Neck diameter DN (mm): 4.9 | Neck taper angle θ (°): 1 | Overall length LF (mm): 70 | Effective length at 0.5° (mm): 27.2 | Effective length at 1° (mm): 28.1 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2050-30 Ball radius RE (mm): 2.5 | Cutting diameter DC (mm): 5 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 6 | Neck length LU (mm): 30 | Neck diameter DN (mm): 4.9 | Neck taper angle θ (°): 0.8 | Overall length LF (mm): 75 | Effective length at 0.5° (mm): 32.4 | Effective length at 1° (mm): - | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2050-35 Ball radius RE (mm): 2.5 | Cutting diameter DC (mm): 5 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 6 | Neck length LU (mm): 35 | Neck diameter DN (mm): 4.9 | Neck taper angle θ (°): 0.7 | Overall length LF (mm): 80 | Effective length at 0.5° (mm): 42.8 | Effective length at 1° (mm): - | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2050-40 Ball radius RE (mm): 2.5 | Cutting diameter DC (mm): 5 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 6 | Neck length LU (mm): 40 | Neck diameter DN (mm): 4.9 | Overall length LF (mm): 90 | Effective length at 0.5° (mm): 42.8 | Effective length at 1° (mm): - | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
Ball End MillsKorloy
127 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy H-Star Long Neck Ball End Mill ESLNB

Brand Korloy·Ball End Mills

Available part numbers (127)

ESLNB2001-0.2, ESLNB2001-0.3, ESLNB2001-0.5, ESLNB2002-0.5, ESLNB2002-1, ESLNB2002-1.5, ESLNB2002-2, ESLNB2002-2.5, ESLNB2002-3.0, ESLNB2003-1 + 117 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESLNB2001-0.2Ball radius RE (mm): 0.05 | Cutting diameter DC (mm): 0.1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.08 | Neck length LU (mm): 0.2 | Neck diameter DN (mm): 0.08 | Neck taper angle θ (°): 11.8 | Overall length LF (mm): 45 | Effective length at 0.5° (mm): 0.3 | Effective length at 1° (mm): 0.3 | Effective length at 1.5° (mm): 0.3 | Effective length at 2° (mm): 0.4 | Effective length at 3° (mm): 0.4
ESLNB2001-0.3Ball radius RE (mm): 0.05 | Cutting diameter DC (mm): 0.1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.08 | Neck length LU (mm): 0.3 | Neck diameter DN (mm): 0.08 | Neck taper angle θ (°): 11.7 | Overall length LF (mm): 45 | Effective length at 0.5° (mm): 0.4 | Effective length at 1° (mm): 0.4 | Effective length at 1.5° (mm): 0.5 | Effective length at 2° (mm): 0.5 | Effective length at 3° (mm): 0.5
ESLNB2001-0.5Ball radius RE (mm): 0.05 | Cutting diameter DC (mm): 0.1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.08 | Neck length LU (mm): 0.5 | Neck diameter DN (mm): 0.08 | Neck taper angle θ (°): 11.4 | Overall length LF (mm): 45 | Effective length at 0.5° (mm): 0.6 | Effective length at 1° (mm): 0.7 | Effective length at 1.5° (mm): 0.7 | Effective length at 2° (mm): 0.7 | Effective length at 3° (mm): 0.8
ESLNB2002-0.5Ball radius RE (mm): 0.1 | Cutting diameter DC (mm): 0.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.15 | Neck length LU (mm): 0.5 | Neck diameter DN (mm): 0.17 | Neck taper angle θ (°): 11.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 1.2 | Effective length at 1° (mm): 1.3 | Effective length at 1.5° (mm): 1.5 | Effective length at 2° (mm): 1.6 | Effective length at 3° (mm): 2
ESLNB2002-1Ball radius RE (mm): 0.1 | Cutting diameter DC (mm): 0.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.15 | Neck length LU (mm): 1 | Neck diameter DN (mm): 0.17 | Neck taper angle θ (°): 10.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 1.7 | Effective length at 1° (mm): 1.9 | Effective length at 1.5° (mm): 2.1 | Effective length at 2° (mm): 2.3 | Effective length at 3° (mm): 2.7
ESLNB2002-1.5Ball radius RE (mm): 0.1 | Cutting diameter DC (mm): 0.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.15 | Neck length LU (mm): 1.5 | Neck diameter DN (mm): 0.17 | Neck taper angle θ (°): 10.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.3 | Effective length at 1° (mm): 2.5 | Effective length at 1.5° (mm): 2.8 | Effective length at 2° (mm): 3 | Effective length at 3° (mm): 3.4
ESLNB2002-2Ball radius RE (mm): 0.1 | Cutting diameter DC (mm): 0.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.15 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.17 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.8 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.4 | Effective length at 2° (mm): 3.6 | Effective length at 3° (mm): 4.1
ESLNB2002-2.5Ball radius RE (mm): 0.1 | Cutting diameter DC (mm): 0.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.15 | Neck length LU (mm): 2.5 | Neck diameter DN (mm): 0.17 | Neck taper angle θ (°): 9.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.4 | Effective length at 1° (mm): 3.7 | Effective length at 1.5° (mm): 4 | Effective length at 2° (mm): 4.2 | Effective length at 3° (mm): 4.7
ESLNB2002-3.0Ball radius RE (mm): 0.1 | Cutting diameter DC (mm): 0.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.15 | Neck length LU (mm): 3 | Neck diameter DN (mm): 0.17 | Neck taper angle θ (°): 9.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.9 | Effective length at 1° (mm): 4.3 | Effective length at 1.5° (mm): 4.6 | Effective length at 2° (mm): 4.9 | Effective length at 3° (mm): 5.4
ESLNB2003-1Ball radius RE (mm): 0.15 | Cutting diameter DC (mm): 0.3 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.25 | Neck length LU (mm): 1 | Neck diameter DN (mm): 0.27 | Neck taper angle θ (°): 10.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 1.7 | Effective length at 1° (mm): 1.9 | Effective length at 1.5° (mm): 2.1 | Effective length at 2° (mm): 2.3 | Effective length at 3° (mm): 2.7
ESLNB2003-1.5Ball radius RE (mm): 0.15 | Cutting diameter DC (mm): 0.3 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.25 | Neck length LU (mm): 1.5 | Neck diameter DN (mm): 0.27 | Neck taper angle θ (°): 10.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.3 | Effective length at 1° (mm): 2.5 | Effective length at 1.5° (mm): 2.7 | Effective length at 2° (mm): 3 | Effective length at 3° (mm): 3.4
ESLNB2003-2Ball radius RE (mm): 0.15 | Cutting diameter DC (mm): 0.3 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.25 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.27 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.8 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.4 | Effective length at 2° (mm): 3.6 | Effective length at 3° (mm): 4
ESLNB2003-2.5Ball radius RE (mm): 0.15 | Cutting diameter DC (mm): 0.3 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.25 | Neck length LU (mm): 2.5 | Neck diameter DN (mm): 0.27 | Neck taper angle θ (°): 9.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.4 | Effective length at 1° (mm): 3.7 | Effective length at 1.5° (mm): 4 | Effective length at 2° (mm): 4.2 | Effective length at 3° (mm): 4.7
ESLNB2003-3Ball radius RE (mm): 0.15 | Cutting diameter DC (mm): 0.3 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.25 | Neck length LU (mm): 3 | Neck diameter DN (mm): 0.27 | Neck taper angle θ (°): 9.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.9 | Effective length at 1° (mm): 4.3 | Effective length at 1.5° (mm): 4.6 | Effective length at 2° (mm): 4.8 | Effective length at 3° (mm): 5.3
ESLNB2004-1Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 1 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 11 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 1.7 | Effective length at 1° (mm): 1.9 | Effective length at 1.5° (mm): 2.1 | Effective length at 2° (mm): 2.3 | Effective length at 3° (mm): 2.7
ESLNB2004-1.5Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 1.5 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 10.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.3 | Effective length at 1° (mm): 2.5 | Effective length at 1.5° (mm): 2.7 | Effective length at 2° (mm): 2.9 | Effective length at 3° (mm): 3.4
ESLNB2004-2Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.8 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.4 | Effective length at 2° (mm): 3.6 | Effective length at 3° (mm): 4
ESLNB2004-2.5Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 2.5 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 9.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.4 | Effective length at 1° (mm): 3.7 | Effective length at 1.5° (mm): 4 | Effective length at 2° (mm): 4.2 | Effective length at 3° (mm): 4.7
ESLNB2004-3Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 3 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 9.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.9 | Effective length at 1° (mm): 4.3 | Effective length at 1.5° (mm): 4.6 | Effective length at 2° (mm): 4.8 | Effective length at 3° (mm): 5.3
ESLNB2004-3.5Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 3.5 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 8.7 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 4.5 | Effective length at 1° (mm): 4.8 | Effective length at 1.5° (mm): 5.2 | Effective length at 2° (mm): 5.4 | Effective length at 3° (mm): 6
ESLNB2004-4Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 4 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 8.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.6
ESLNB2004-4.5Ball radius RE (mm): 0.2 | Cutting diameter DC (mm): 0.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.3 | Neck length LU (mm): 4.5 | Neck diameter DN (mm): 0.37 | Neck taper angle θ (°): 8 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5.6 | Effective length at 1° (mm): 6 | Effective length at 1.5° (mm): 6.3 | Effective length at 2° (mm): 6.6 | Effective length at 3° (mm): 7.2
ESLNB2005-1Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 1 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 11 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 1.7 | Effective length at 1° (mm): 1.9 | Effective length at 1.5° (mm): 2.1 | Effective length at 2° (mm): 2.3 | Effective length at 3° (mm): 2.6
ESLNB2005-2Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.8 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.3 | Effective length at 2° (mm): 3.6 | Effective length at 3° (mm): 4
ESLNB2005-3Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 3 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.9 | Effective length at 1° (mm): 4.3 | Effective length at 1.5° (mm): 4.6 | Effective length at 2° (mm): 4.8 | Effective length at 3° (mm): 5.3
ESLNB2005-4Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 4 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 8.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.6
ESLNB2005-5Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 5 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 7.7 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 6.1 | Effective length at 1° (mm): 6.5 | Effective length at 1.5° (mm): 6.9 | Effective length at 2° (mm): 7.2 | Effective length at 3° (mm): 7.8
ESLNB2005-6Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 6 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 7.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.2 | Effective length at 1° (mm): 7.6 | Effective length at 1.5° (mm): 8 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2005-8Ball radius RE (mm): 0.25 | Cutting diameter DC (mm): 0.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.35 | Neck length LU (mm): 8 | Neck diameter DN (mm): 0.47 | Neck taper angle θ (°): 6.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.3 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.4
ESLNB2006-1Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 1 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 11 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 1.7 | Effective length at 1° (mm): 1.9 | Effective length at 1.5° (mm): 2.1 | Effective length at 2° (mm): 2.3 | Effective length at 3° (mm): 2.6
ESLNB2006-2Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.8 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.3 | Effective length at 2° (mm): 3.6 | Effective length at 3° (mm): 4
ESLNB2006-3Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 3 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 3.9 | Effective length at 1° (mm): 4.3 | Effective length at 1.5° (mm): 4.5 | Effective length at 2° (mm): 4.8 | Effective length at 3° (mm): 5.3
ESLNB2006-4Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 4 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 8.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.6
ESLNB2006-5Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 5 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 7.6 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 6.1 | Effective length at 1° (mm): 6.5 | Effective length at 1.5° (mm): 6.9 | Effective length at 2° (mm): 7.2 | Effective length at 3° (mm): 7.8
ESLNB2006-6Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 6 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 7.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.2 | Effective length at 1° (mm): 7.6 | Effective length at 1.5° (mm): 8 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2006-7Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 7 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 6.6 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 8.3 | Effective length at 1° (mm): 8.8 | Effective length at 1.5° (mm): 9.2 | Effective length at 2° (mm): 9.5 | Effective length at 3° (mm): 10.2
ESLNB2006-8Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 8 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 6.2 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.3 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.4
ESLNB2006-9Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 9 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 5.8 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 10.4 | Effective length at 1° (mm): 10.9 | Effective length at 1.5° (mm): 11.4 | Effective length at 2° (mm): 11.8 | Effective length at 3° (mm): 12.5
ESLNB2006-10Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 10 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 5.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.4 | Effective length at 1° (mm): 12 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.7
ESLNB2006-12Ball radius RE (mm): 0.3 | Cutting diameter DC (mm): 0.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.4 | Neck length LU (mm): 12 | Neck diameter DN (mm): 0.57 | Neck taper angle θ (°): 5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 13.6 | Effective length at 1° (mm): 14.2 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 16
ESLNB2008-2Ball radius RE (mm): 0.4 | Cutting diameter DC (mm): 0.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.5 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.77 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.8 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.3 | Effective length at 2° (mm): 3.5 | Effective length at 3° (mm): 4
ESLNB2008-4Ball radius RE (mm): 0.4 | Cutting diameter DC (mm): 0.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.5 | Neck length LU (mm): 4 | Neck diameter DN (mm): 0.77 | Neck taper angle θ (°): 8.2 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.5
ESLNB2008-5Ball radius RE (mm): 0.4 | Cutting diameter DC (mm): 0.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.5 | Neck length LU (mm): 5 | Neck diameter DN (mm): 0.77 | Neck taper angle θ (°): 7.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 6.1 | Effective length at 1° (mm): 6.5 | Effective length at 1.5° (mm): 6.9 | Effective length at 2° (mm): 7.2 | Effective length at 3° (mm): 7.8
ESLNB2008-6Ball radius RE (mm): 0.4 | Cutting diameter DC (mm): 0.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.5 | Neck length LU (mm): 6 | Neck diameter DN (mm): 0.77 | Neck taper angle θ (°): 7 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.2 | Effective length at 1° (mm): 7.6 | Effective length at 1.5° (mm): 8 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2008-8Ball radius RE (mm): 0.4 | Cutting diameter DC (mm): 0.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.5 | Neck length LU (mm): 8 | Neck diameter DN (mm): 0.77 | Neck taper angle θ (°): 6.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.3 | Effective length at 1° (mm): 9.8 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2008-10Ball radius RE (mm): 0.4 | Cutting diameter DC (mm): 0.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.5 | Neck length LU (mm): 10 | Neck diameter DN (mm): 0.77 | Neck taper angle θ (°): 5.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.4 | Effective length at 1° (mm): 12 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.7
ESLNB2010-2Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 2 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 9.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 2.9 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.3 | Effective length at 2° (mm): 3.5 | Effective length at 3° (mm): 4
ESLNB2010-3Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 3 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 8.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 4 | Effective length at 1° (mm): 4.3 | Effective length at 1.5° (mm): 4.5 | Effective length at 2° (mm): 4.8 | Effective length at 3° (mm): 5.3
ESLNB2010-4Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 4 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 8.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.5
ESLNB2010-5Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 5 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 7.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 6.1 | Effective length at 1° (mm): 6.5 | Effective length at 1.5° (mm): 6.9 | Effective length at 2° (mm): 7.2 | Effective length at 3° (mm): 7.8
ESLNB2010-6Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 6 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 6.8 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.2 | Effective length at 1° (mm): 7.7 | Effective length at 1.5° (mm): 8 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2010-7Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 7 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 6.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 8.3 | Effective length at 1° (mm): 8.8 | Effective length at 1.5° (mm): 9.2 | Effective length at 2° (mm): 9.5 | Effective length at 3° (mm): 10.2
ESLNB2010-8Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 8 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 5.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.3 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2010-9Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 9 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 5.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 10.4 | Effective length at 1° (mm): 11 | Effective length at 1.5° (mm): 11.4 | Effective length at 2° (mm): 11.8 | Effective length at 3° (mm): 12.5
ESLNB2010-10Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 10 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 5.2 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.5 | Effective length at 1° (mm): 12 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.7
ESLNB2010-12Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 12 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 4.6 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.6 | Effective length at 1° (mm): 14.2 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2010-14Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 14 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 4.2 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 15.7 | Effective length at 1° (mm): 16.4 | Effective length at 1.5° (mm): 16.9 | Effective length at 2° (mm): 17.4 | Effective length at 3° (mm): 18.5
ESLNB2010-16Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 16 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 3.8 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.8 | Effective length at 1° (mm): 18.5 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): 21.2
ESLNB2010-18Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 18 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 3.5 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 19.9 | Effective length at 1° (mm): 20.7 | Effective length at 1.5° (mm): 21.3 | Effective length at 2° (mm): 21.8 | Effective length at 3° (mm): 23.8
ESLNB2010-20Ball radius RE (mm): 0.5 | Cutting diameter DC (mm): 1 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 20 | Neck diameter DN (mm): 0.96 | Neck taper angle θ (°): 3.3 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 22 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.4 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): 26.5
ESLNB2012-4Ball radius RE (mm): 0.6 | Cutting diameter DC (mm): 1.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.1 | Neck length LU (mm): 4 | Neck diameter DN (mm): 1.15 | Neck taper angle θ (°): 7.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5.1 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.5
ESLNB2012-6Ball radius RE (mm): 0.6 | Cutting diameter DC (mm): 1.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.1 | Neck length LU (mm): 6 | Neck diameter DN (mm): 1.15 | Neck taper angle θ (°): 6.6 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.2 | Effective length at 1° (mm): 7.7 | Effective length at 1.5° (mm): 8 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2012-8Ball radius RE (mm): 0.6 | Cutting diameter DC (mm): 1.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.1 | Neck length LU (mm): 8 | Neck diameter DN (mm): 1.15 | Neck taper angle θ (°): 5.7 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.4 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2012-10Ball radius RE (mm): 0.6 | Cutting diameter DC (mm): 1.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.1 | Neck length LU (mm): 10 | Neck diameter DN (mm): 1.15 | Neck taper angle θ (°): 5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.5 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.7
ESLNB2012-12Ball radius RE (mm): 0.6 | Cutting diameter DC (mm): 1.2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.1 | Neck length LU (mm): 12 | Neck diameter DN (mm): 1.15 | Neck taper angle θ (°): 4.5 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.6 | Effective length at 1° (mm): 14.2 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2014-8Ball radius RE (mm): 0.7 | Cutting diameter DC (mm): 1.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.3 | Neck length LU (mm): 8 | Neck diameter DN (mm): 1.34 | Neck taper angle θ (°): 5.5 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.4 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2014-12Ball radius RE (mm): 0.7 | Cutting diameter DC (mm): 1.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.3 | Neck length LU (mm): 12 | Neck diameter DN (mm): 1.34 | Neck taper angle θ (°): 4.3 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.6 | Effective length at 1° (mm): 14.2 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2014-16Ball radius RE (mm): 0.7 | Cutting diameter DC (mm): 1.4 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.3 | Neck length LU (mm): 16 | Neck diameter DN (mm): 1.34 | Neck taper angle θ (°): 3.5 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.8 | Effective length at 1° (mm): 18.5 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): 21.2
ESLNB2015-4Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 4 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 7.7 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5.1 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.7 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.5
ESLNB2015-6Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 6 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 6.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.3 | Effective length at 1° (mm): 7.7 | Effective length at 1.5° (mm): 8 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2015-8Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 8 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 5.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.4 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2015-10Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 10 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 4.7 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.5 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.7
ESLNB2015-12Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 12 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 4.2 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.6 | Effective length at 1° (mm): 14.2 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2015-14Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 14 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 3.8 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 15.7 | Effective length at 1° (mm): 16.4 | Effective length at 1.5° (mm): 16.9 | Effective length at 2° (mm): 17.4 | Effective length at 3° (mm): 18.5
ESLNB2015-16Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 16 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 3.4 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.8 | Effective length at 1° (mm): 18.5 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): 21.1
ESLNB2015-20Ball radius RE (mm): 0.75 | Cutting diameter DC (mm): 1.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.35 | Neck length LU (mm): 20 | Neck diameter DN (mm): 1.44 | Neck taper angle θ (°): 2.9 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 22 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.4 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): -
ESLNB2016-8Ball radius RE (mm): 0.8 | Cutting diameter DC (mm): 1.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.4 | Neck length LU (mm): 8 | Neck diameter DN (mm): 1.54 | Neck taper angle θ (°): 5.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.4 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2016-10Ball radius RE (mm): 0.8 | Cutting diameter DC (mm): 1.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.4 | Neck length LU (mm): 10 | Neck diameter DN (mm): 1.54 | Neck taper angle θ (°): 4.6 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 11.5 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.7
ESLNB2016-12Ball radius RE (mm): 0.8 | Cutting diameter DC (mm): 1.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.4 | Neck length LU (mm): 12 | Neck diameter DN (mm): 1.54 | Neck taper angle θ (°): 4.1 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.6 | Effective length at 1° (mm): 14.2 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2016-16Ball radius RE (mm): 0.8 | Cutting diameter DC (mm): 1.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.4 | Neck length LU (mm): 16 | Neck diameter DN (mm): 1.54 | Neck taper angle θ (°): 3.3 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.8 | Effective length at 1° (mm): 18.5 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): 21.1
ESLNB2016-20Ball radius RE (mm): 0.8 | Cutting diameter DC (mm): 1.6 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.4 | Neck length LU (mm): 20 | Neck diameter DN (mm): 1.54 | Neck taper angle θ (°): 2.8 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 22 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.4 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): -
ESLNB2018-8Ball radius RE (mm): 0.9 | Cutting diameter DC (mm): 1.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.6 | Neck length LU (mm): 8 | Neck diameter DN (mm): 1.73 | Neck taper angle θ (°): 5.1 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.4 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2018-12Ball radius RE (mm): 0.9 | Cutting diameter DC (mm): 1.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.6 | Neck length LU (mm): 12 | Neck diameter DN (mm): 1.73 | Neck taper angle θ (°): 3.9 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.7 | Effective length at 1° (mm): 14.3 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2018-16Ball radius RE (mm): 0.9 | Cutting diameter DC (mm): 1.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.6 | Neck length LU (mm): 16 | Neck diameter DN (mm): 1.73 | Neck taper angle θ (°): 3.1 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.9 | Effective length at 1° (mm): 18.6 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): 21.1
ESLNB2018-20Ball radius RE (mm): 0.9 | Cutting diameter DC (mm): 1.8 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.6 | Neck length LU (mm): 20 | Neck diameter DN (mm): 1.73 | Neck taper angle θ (°): 2.6 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 22 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.4 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): -
ESLNB2020-3Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 1.7 | Neck length LU (mm): 3 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 8.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 4.1 | Effective length at 1° (mm): 4.4 | Effective length at 1.5° (mm): 4.6 | Effective length at 2° (mm): 4.8 | Effective length at 3° (mm): 5.2
ESLNB2020-4Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 4 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 7.3 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 5.2 | Effective length at 1° (mm): 5.5 | Effective length at 1.5° (mm): 5.8 | Effective length at 2° (mm): 6 | Effective length at 3° (mm): 6.5
ESLNB2020-6Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 6 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 5.8 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 7.3 | Effective length at 1° (mm): 7.7 | Effective length at 1.5° (mm): 8.1 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNB2020-8Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 8 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 4.9 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 9.5 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2020-10Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 10 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 4.2 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.6 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.6 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.6
ESLNB2020-12Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 12 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 3.7 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 13.7 | Effective length at 1° (mm): 14.3 | Effective length at 1.5° (mm): 14.8 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 15.9
ESLNB2020-14Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 14 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 3.2 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 15.8 | Effective length at 1° (mm): 16.4 | Effective length at 1.5° (mm): 16.9 | Effective length at 2° (mm): 17.4 | Effective length at 3° (mm): 18.5
ESLNB2020-16Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 16 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 2.9 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.9 | Effective length at 1° (mm): 18.6 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): -
ESLNB2020-18Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 18 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 2.7 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 20 | Effective length at 1° (mm): 20.7 | Effective length at 1.5° (mm): 21.3 | Effective length at 2° (mm): 21.8 | Effective length at 3° (mm): -
ESLNB2020-20Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 20 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 2.4 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.4 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): -
ESLNB2020-22Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 22 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 2.3 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 24.1 | Effective length at 1° (mm): 24.9 | Effective length at 1.5° (mm): 25.6 | Effective length at 2° (mm): 26.3 | Effective length at 3° (mm): -
ESLNB2020-25Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 25 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 2 | Overall length LF (mm): 65 | Effective length at 0.5° (mm): 27.3 | Effective length at 1° (mm): 28.1 | Effective length at 1.5° (mm): 28.8 | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2020-30Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 30 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 1.7 | Overall length LF (mm): 70 | Effective length at 0.5° (mm): 32.4 | Effective length at 1° (mm): 33.4 | Effective length at 1.5° (mm): 34.2 | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2020-35Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 35 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 1.5 | Overall length LF (mm): 75 | Effective length at 0.5° (mm): 37.6 | Effective length at 1° (mm): 38.6 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2020-40Ball radius RE (mm): 1 | Cutting diameter DC (mm): 2 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 3 | Neck length LU (mm): 40 | Neck diameter DN (mm): 1.92 | Neck taper angle θ (°): 1.4 | Overall length LF (mm): 80 | Effective length at 0.5° (mm): 42.8 | Effective length at 1° (mm): 43.8 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2025-10Ball radius RE (mm): 1.25 | Cutting diameter DC (mm): 2.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 4 | Neck length LU (mm): 10 | Neck diameter DN (mm): 2.4 | Neck taper angle θ (°): 3.4 | Overall length LF (mm): 50 | Effective length at 0.5° (mm): 11.6 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.6 | Effective length at 2° (mm): 13 | Effective length at 3° (mm): 13.6
ESLNB2025-16Ball radius RE (mm): 1.25 | Cutting diameter DC (mm): 2.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 4 | Neck length LU (mm): 16 | Neck diameter DN (mm): 2.4 | Neck taper angle θ (°): 2.3 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 17.9 | Effective length at 1° (mm): 18.6 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): -
ESLNB2025-20Ball radius RE (mm): 1.25 | Cutting diameter DC (mm): 2.5 | Shank diameter DCON-MS (mm): 4 | Flute length APMX (mm): 4 | Neck length LU (mm): 20 | Neck diameter DN (mm): 2.4 | Neck taper angle θ (°): 1.9 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2030-8Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 8 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 6.2 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 9.6 | Effective length at 1° (mm): 10 | Effective length at 1.5° (mm): 10.4 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.3
ESLNB2030-10Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 10 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 5.5 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 11.7 | Effective length at 1° (mm): 12.2 | Effective length at 1.5° (mm): 12.6 | Effective length at 2° (mm): 13 | Effective length at 3° (mm): 13.6
ESLNB2030-13Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 13 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 4.6 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 14.8 | Effective length at 1° (mm): 15.4 | Effective length at 1.5° (mm): 15.9 | Effective length at 2° (mm): 16.3 | Effective length at 3° (mm): 17.1
ESLNB2030-16Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 16 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 4 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 18 | Effective length at 1° (mm): 18.6 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): 21.1
ESLNB2030-18Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 18 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 3.6 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 20 | Effective length at 1° (mm): 20.7 | Effective length at 1.5° (mm): 21.3 | Effective length at 2° (mm): 21.8 | Effective length at 3° (mm): 23.7
ESLNB2030-20Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 20 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 3.4 | Overall length LF (mm): 65 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.9 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): 26.4
ESLNB2030-25Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 25 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 2.8 | Overall length LF (mm): 70 | Effective length at 0.5° (mm): 27.3 | Effective length at 1° (mm): 28.2 | Effective length at 1.5° (mm): 28.8 | Effective length at 2° (mm): 29.9 | Effective length at 3° (mm): -
ESLNB2030-30Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 30 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 2.2 | Overall length LF (mm): 75 | Effective length at 0.5° (mm): 32.5 | Effective length at 1° (mm): 33.4 | Effective length at 1.5° (mm): 34.3 | Effective length at 2° (mm): 35.9 | Effective length at 3° (mm): -
ESLNB2030-35Ball radius RE (mm): 1.5 | Cutting diameter DC (mm): 3 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 4 | Neck length LU (mm): 35 | Neck diameter DN (mm): 2.88 | Neck taper angle θ (°): 4.5 | Overall length LF (mm): 80 | Effective length at 0.5° (mm): 37.7 | Effective length at 1° (mm): 38.7 | Effective length at 1.5° (mm): 40 | Effective length at 2° (mm): 41.9 | Effective length at 3° (mm): -
ESLNB2040-10Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 10 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 3.6 | Overall length LF (mm): 55 | Effective length at 0.5° (mm): 11.6 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 12.9 | Effective length at 3° (mm): 13.5
ESLNB2040-13Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 13 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 3.1 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 14.7 | Effective length at 1° (mm): 15.3 | Effective length at 1.5° (mm): 15.8 | Effective length at 2° (mm): 16.2 | Effective length at 3° (mm): 17
ESLNB2040-16Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 16 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 2.5 | Overall length LF (mm): 60 | Effective length at 0.5° (mm): 17.9 | Effective length at 1° (mm): 18.5 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.5 | Effective length at 3° (mm): 20.9
ESLNB2040-20Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 20 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 2.1 | Overall length LF (mm): 65 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.4 | Effective length at 2° (mm): 23.9 | Effective length at 3° (mm): -
ESLNB2040-25Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 25 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 1.8 | Overall length LF (mm): 70 | Effective length at 0.5° (mm): 27.3 | Effective length at 1° (mm): 28.1 | Effective length at 1.5° (mm): 28.8 | Effective length at 2° (mm): 29.8 | Effective length at 3° (mm): -
ESLNB2040-30Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 30 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 1.6 | Overall length LF (mm): 75 | Effective length at 0.5° (mm): 32.4 | Effective length at 1° (mm): 33.4 | Effective length at 1.5° (mm): 34.2 | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2040-35Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 35 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 1.4 | Overall length LF (mm): 80 | Effective length at 0.5° (mm): 37.6 | Effective length at 1° (mm): 38.6 | Effective length at 1.5° (mm): 39.9 | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2040-40Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 40 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 1.2 | Overall length LF (mm): 80 | Effective length at 0.5° (mm): 42.8 | Effective length at 1° (mm): 43.8 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2040-45Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 45 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 1.1 | Overall length LF (mm): 90 | Effective length at 0.5° (mm): 47.9 | Effective length at 1° (mm): 49.1 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2040-50Ball radius RE (mm): 2 | Cutting diameter DC (mm): 4 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 5 | Neck length LU (mm): 50 | Neck diameter DN (mm): 3.9 | Neck taper angle θ (°): 1.4 | Overall length LF (mm): 100 | Effective length at 0.5° (mm): 53.1 | Effective length at 1° (mm): 54.5 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2050-20Ball radius RE (mm): 2.5 | Cutting diameter DC (mm): 5 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 6 | Neck length LU (mm): 20 | Neck diameter DN (mm): 4.9 | Neck taper angle θ (°): 1.2 | Overall length LF (mm): 65 | Effective length at 0.5° (mm): 22 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2050-25Ball radius RE (mm): 2.5 | Cutting diameter DC (mm): 5 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 6 | Neck length LU (mm): 25 | Neck diameter DN (mm): 4.9 | Neck taper angle θ (°): 1 | Overall length LF (mm): 70 | Effective length at 0.5° (mm): 27.2 | Effective length at 1° (mm): 28.1 | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2050-30Ball radius RE (mm): 2.5 | Cutting diameter DC (mm): 5 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 6 | Neck length LU (mm): 30 | Neck diameter DN (mm): 4.9 | Neck taper angle θ (°): 0.8 | Overall length LF (mm): 75 | Effective length at 0.5° (mm): 32.4 | Effective length at 1° (mm): - | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2050-35Ball radius RE (mm): 2.5 | Cutting diameter DC (mm): 5 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 6 | Neck length LU (mm): 35 | Neck diameter DN (mm): 4.9 | Neck taper angle θ (°): 0.7 | Overall length LF (mm): 80 | Effective length at 0.5° (mm): 42.8 | Effective length at 1° (mm): - | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -
ESLNB2050-40Ball radius RE (mm): 2.5 | Cutting diameter DC (mm): 5 | Shank diameter DCON-MS (mm): 6 | Flute length APMX (mm): 6 | Neck length LU (mm): 40 | Neck diameter DN (mm): 4.9 | Overall length LF (mm): 90 | Effective length at 0.5° (mm): 42.8 | Effective length at 1° (mm): - | Effective length at 1.5° (mm): - | Effective length at 2° (mm): - | Effective length at 3° (mm): -

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
