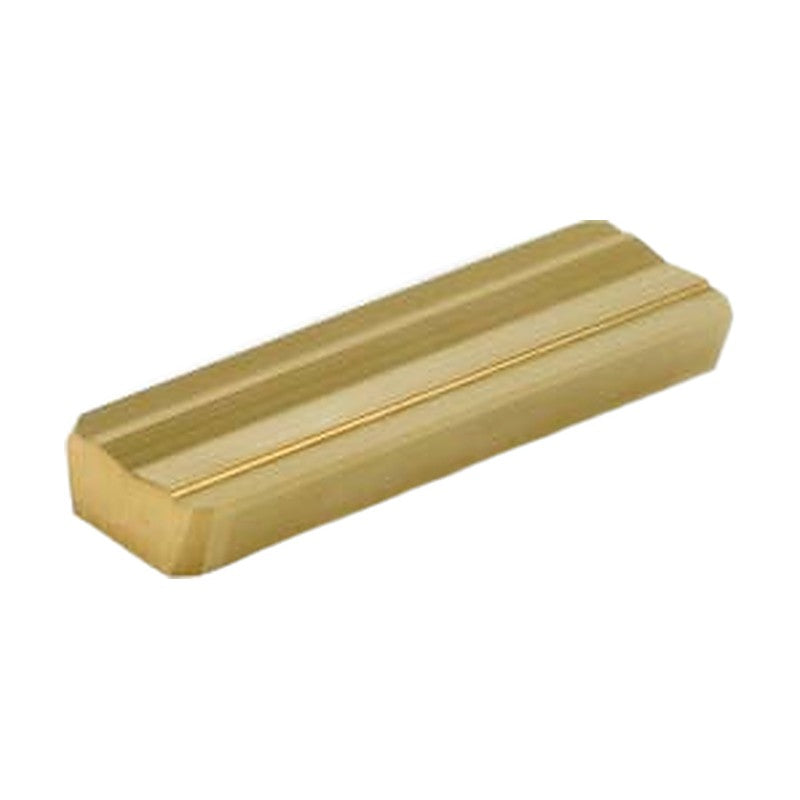

Korloy Indexable Reamer Insert RI

Korloy Indexable Reamer Insert RI

Insert for IRT/IRB indexable reamers in four sizes with lead types A and B and 6 or 12 degree chip breaker angles.

Key features

  • Lead type A: excellent surface, low cutting condition
  • Lead type B: general application, high cutting condition
  • 6 degree breaker for general steel, 12 degree for stainless and aluminum
RI15-A06 BPK210 L (mm): 15 | W (mm): 3.0 | S (mm): 1.5 | Lead type: A | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI15-A12 K10 L (mm): 15 | W (mm): 3.0 | S (mm): 1.5 | Lead type: A | Chip breaker angle: 12° | Grade: K10 (uncoated) | Mark: Recommended grade
RI15-B06 BPK110 L (mm): 15 | W (mm): 3.0 | S (mm): 1.5 | Lead type: B | Chip breaker angle: 6° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI15-B06 BPK210 L (mm): 15 | W (mm): 3.0 | S (mm): 1.5 | Lead type: B | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI15-B12 BPK110 L (mm): 15 | W (mm): 3.0 | S (mm): 1.5 | Lead type: B | Chip breaker angle: 12° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI16-A06 BPK210 L (mm): 16 | W (mm): 3.5 | S (mm): 1.5 | Lead type: A | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI16-A12 K10 L (mm): 16 | W (mm): 3.5 | S (mm): 1.5 | Lead type: A | Chip breaker angle: 12° | Grade: K10 (uncoated) | Mark: Recommended grade
RI16-B06 BPK110 L (mm): 16 | W (mm): 3.5 | S (mm): 1.5 | Lead type: B | Chip breaker angle: 6° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI16-B06 BPK210 L (mm): 16 | W (mm): 3.5 | S (mm): 1.5 | Lead type: B | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI16-B12 BPK110 L (mm): 16 | W (mm): 3.5 | S (mm): 1.5 | Lead type: B | Chip breaker angle: 12° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI17-A06 BPK210 L (mm): 17 | W (mm): 4.5 | S (mm): 2.0 | Lead type: A | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI17-A12 K10 L (mm): 17 | W (mm): 4.5 | S (mm): 2.0 | Lead type: A | Chip breaker angle: 12° | Grade: K10 (uncoated) | Mark: Recommended grade
RI17-B06 BPK110 L (mm): 17 | W (mm): 4.5 | S (mm): 2.0 | Lead type: B | Chip breaker angle: 6° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI17-B06 BPK210 L (mm): 17 | W (mm): 4.5 | S (mm): 2.0 | Lead type: B | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI17-B12 BPK110 L (mm): 17 | W (mm): 4.5 | S (mm): 2.0 | Lead type: B | Chip breaker angle: 12° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI22-A06 BPK210 L (mm): 22 | W (mm): 6.5 | S (mm): 3.0 | Lead type: A | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI22-A12 K10 L (mm): 22 | W (mm): 6.5 | S (mm): 3.0 | Lead type: A | Chip breaker angle: 12° | Grade: K10 (uncoated) | Mark: Recommended grade
RI22-B06 BPK110 L (mm): 22 | W (mm): 6.5 | S (mm): 3.0 | Lead type: B | Chip breaker angle: 6° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI22-B06 BPK210 L (mm): 22 | W (mm): 6.5 | S (mm): 3.0 | Lead type: B | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI22-B12 BPK110 L (mm): 22 | W (mm): 6.5 | S (mm): 3.0 | Lead type: B | Chip breaker angle: 12° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
ReamersKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Indexable Reamer Insert RI

Brand Korloy·Reamers

Available part numbers (20)

RI15-A06 BPK210, RI15-A12 K10, RI15-B06 BPK110, RI15-B06 BPK210, RI15-B12 BPK110, RI16-A06 BPK210, RI16-A12 K10, RI16-B06 BPK110, RI16-B06 BPK210, RI16-B12 BPK110 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RI15-A06 BPK210L (mm): 15 | W (mm): 3.0 | S (mm): 1.5 | Lead type: A | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI15-A12 K10L (mm): 15 | W (mm): 3.0 | S (mm): 1.5 | Lead type: A | Chip breaker angle: 12° | Grade: K10 (uncoated) | Mark: Recommended grade
RI15-B06 BPK110L (mm): 15 | W (mm): 3.0 | S (mm): 1.5 | Lead type: B | Chip breaker angle: 6° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI15-B06 BPK210L (mm): 15 | W (mm): 3.0 | S (mm): 1.5 | Lead type: B | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI15-B12 BPK110L (mm): 15 | W (mm): 3.0 | S (mm): 1.5 | Lead type: B | Chip breaker angle: 12° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI16-A06 BPK210L (mm): 16 | W (mm): 3.5 | S (mm): 1.5 | Lead type: A | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI16-A12 K10L (mm): 16 | W (mm): 3.5 | S (mm): 1.5 | Lead type: A | Chip breaker angle: 12° | Grade: K10 (uncoated) | Mark: Recommended grade
RI16-B06 BPK110L (mm): 16 | W (mm): 3.5 | S (mm): 1.5 | Lead type: B | Chip breaker angle: 6° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI16-B06 BPK210L (mm): 16 | W (mm): 3.5 | S (mm): 1.5 | Lead type: B | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI16-B12 BPK110L (mm): 16 | W (mm): 3.5 | S (mm): 1.5 | Lead type: B | Chip breaker angle: 12° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI17-A06 BPK210L (mm): 17 | W (mm): 4.5 | S (mm): 2.0 | Lead type: A | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI17-A12 K10L (mm): 17 | W (mm): 4.5 | S (mm): 2.0 | Lead type: A | Chip breaker angle: 12° | Grade: K10 (uncoated) | Mark: Recommended grade
RI17-B06 BPK110L (mm): 17 | W (mm): 4.5 | S (mm): 2.0 | Lead type: B | Chip breaker angle: 6° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI17-B06 BPK210L (mm): 17 | W (mm): 4.5 | S (mm): 2.0 | Lead type: B | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI17-B12 BPK110L (mm): 17 | W (mm): 4.5 | S (mm): 2.0 | Lead type: B | Chip breaker angle: 12° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI22-A06 BPK210L (mm): 22 | W (mm): 6.5 | S (mm): 3.0 | Lead type: A | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI22-A12 K10L (mm): 22 | W (mm): 6.5 | S (mm): 3.0 | Lead type: A | Chip breaker angle: 12° | Grade: K10 (uncoated) | Mark: Recommended grade
RI22-B06 BPK110L (mm): 22 | W (mm): 6.5 | S (mm): 3.0 | Lead type: B | Chip breaker angle: 6° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
RI22-B06 BPK210L (mm): 22 | W (mm): 6.5 | S (mm): 3.0 | Lead type: B | Chip breaker angle: 6° | Grade: BPK210 (TiN) | Mark: Recommended grade
RI22-B12 BPK110L (mm): 22 | W (mm): 6.5 | S (mm): 3.0 | Lead type: B | Chip breaker angle: 12° | Grade: BPK110 (TiAlN) | Mark: Recommended grade
