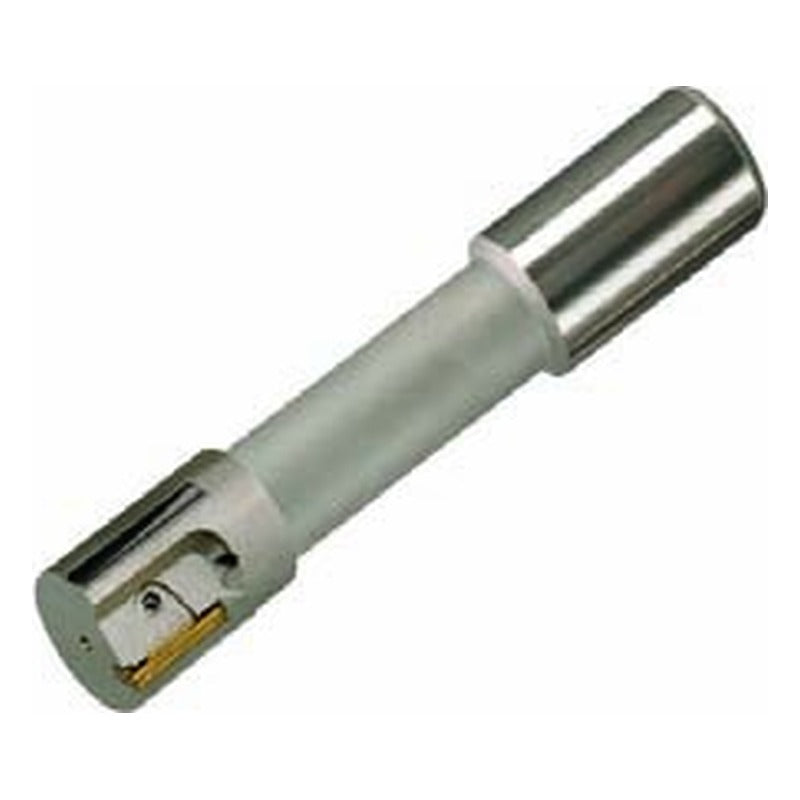

Korloy Indexable Reamer IRT (Through Hole)

Indexable single-insert reamer for through hole machining, 10 to 31 mm diameter.

Key features

For mass production and high speed machining
PCD or coated inserts
Adjustable diameter for high precision
Internal coolant

IRT10.000-16125-15		Reamer dia. D (mm): 10 \| l (mm): 15 \| l1 (mm): 30 \| l2 (mm): 75 \| l3 (mm): 45 \| L (mm): 125 \| Shank dia. d (mm): 16 \| Insert: RI15 \| Clamp: CV15 \| Adjusting wedge: AW2430
IRT11.000-16125-15		Reamer dia. D (mm): 11 \| l (mm): 15 \| l1 (mm): 30 \| l2 (mm): 75 \| l3 (mm): 45 \| L (mm): 125 \| Shank dia. d (mm): 16 \| Insert: RI15 \| Clamp: CV15 \| Adjusting wedge: AW2430
IRT12.000-16135-16		Reamer dia. D (mm): 12 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
IRT13.000-16135-16		Reamer dia. D (mm): 13 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
IRT14.000-16135-16		Reamer dia. D (mm): 14 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
IRT15.000-16135-16		Reamer dia. D (mm): 15 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
IRT16.000-20155-16		Reamer dia. D (mm): 16 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
IRT17.000-20155-16		Reamer dia. D (mm): 17 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
IRT18.000-20155-17		Reamer dia. D (mm): 18 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRT19.000-20155-17		Reamer dia. D (mm): 19 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRT20.000-25165-17		Reamer dia. D (mm): 20 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRT21.000-25165-17		Reamer dia. D (mm): 21 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRT22.000-25165-17		Reamer dia. D (mm): 22 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRT23.000-25165-17		Reamer dia. D (mm): 23 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRT24.000-25165-17		Reamer dia. D (mm): 24 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRT25.000-25165-17		Reamer dia. D (mm): 25 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRT26.000-25165-17		Reamer dia. D (mm): 26 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRT27.000-25165-17		Reamer dia. D (mm): 27 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRT28.000-32165-22		Reamer dia. D (mm): 28 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
IRT29.000-32165-22		Reamer dia. D (mm): 29 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
IRT30.000-32165-22		Reamer dia. D (mm): 30 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
IRT31.000-32165-22		Reamer dia. D (mm): 31 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260

ReamersKorloy

22 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Indexable Reamer IRT (Through Hole)

Brand Korloy·Reamers

Available part numbers (22)

IRT10.000-16125-15, IRT11.000-16125-15, IRT12.000-16135-16, IRT13.000-16135-16, IRT14.000-16135-16, IRT15.000-16135-16, IRT16.000-20155-16, IRT17.000-20155-16, IRT18.000-20155-17, IRT19.000-20155-17 + 12 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	IRT10.000-16125-15	Reamer dia. D (mm): 10 \| l (mm): 15 \| l1 (mm): 30 \| l2 (mm): 75 \| l3 (mm): 45 \| L (mm): 125 \| Shank dia. d (mm): 16 \| Insert: RI15 \| Clamp: CV15 \| Adjusting wedge: AW2430
	IRT11.000-16125-15	Reamer dia. D (mm): 11 \| l (mm): 15 \| l1 (mm): 30 \| l2 (mm): 75 \| l3 (mm): 45 \| L (mm): 125 \| Shank dia. d (mm): 16 \| Insert: RI15 \| Clamp: CV15 \| Adjusting wedge: AW2430
	IRT12.000-16135-16	Reamer dia. D (mm): 12 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
	IRT13.000-16135-16	Reamer dia. D (mm): 13 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
	IRT14.000-16135-16	Reamer dia. D (mm): 14 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
	IRT15.000-16135-16	Reamer dia. D (mm): 15 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
	IRT16.000-20155-16	Reamer dia. D (mm): 16 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
	IRT17.000-20155-16	Reamer dia. D (mm): 17 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
	IRT18.000-20155-17	Reamer dia. D (mm): 18 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRT19.000-20155-17	Reamer dia. D (mm): 19 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRT20.000-25165-17	Reamer dia. D (mm): 20 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRT21.000-25165-17	Reamer dia. D (mm): 21 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRT22.000-25165-17	Reamer dia. D (mm): 22 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRT23.000-25165-17	Reamer dia. D (mm): 23 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRT24.000-25165-17	Reamer dia. D (mm): 24 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRT25.000-25165-17	Reamer dia. D (mm): 25 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRT26.000-25165-17	Reamer dia. D (mm): 26 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRT27.000-25165-17	Reamer dia. D (mm): 27 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRT28.000-32165-22	Reamer dia. D (mm): 28 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
	IRT29.000-32165-22	Reamer dia. D (mm): 29 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
	IRT30.000-32165-22	Reamer dia. D (mm): 30 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
	IRT31.000-32165-22	Reamer dia. D (mm): 31 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
