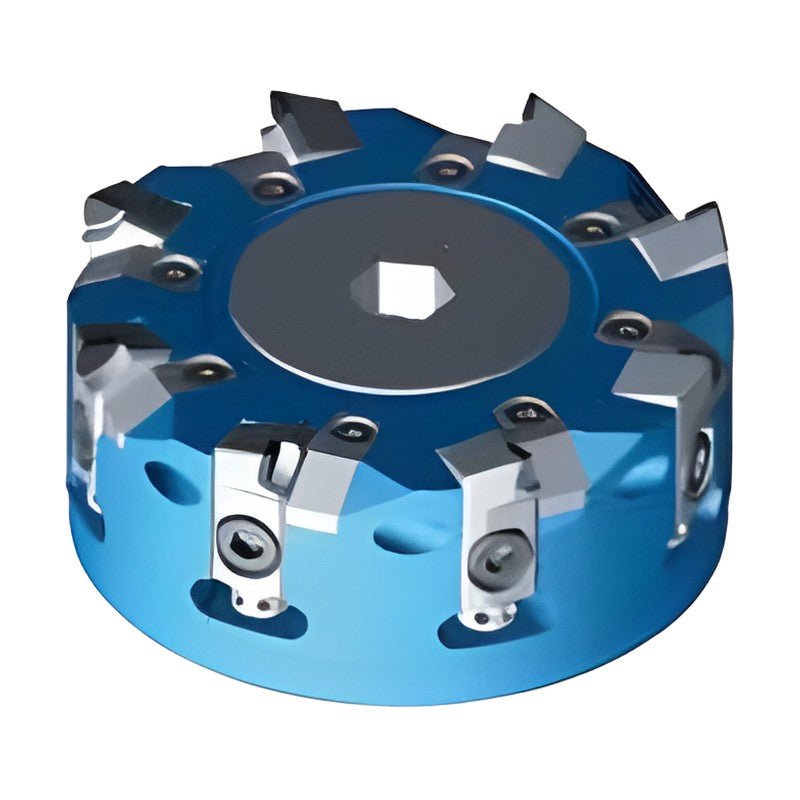

Korloy KMP(M) PCD Blade Face Milling Cutter

Korloy KMP(M) PCD Blade Face Milling Cutter

Lightweight aluminum-body 90° face milling cutter for BKMPMR PCD blades with replaceable steel chip covers.

Key features

  • Lightweight aluminum alloy body avoids spindle overload at high speed
  • Designed for PCD blades with increased number of corners
  • Wide chip pockets for finishing or roughing aluminum alloys
  • Replaceable steel chip covers protect the body
  • Exclusive light coolant bolt reduces tool weight by 30%

Specifications

Approach angle 90°
Blade BKMPMR
Mounting Arbor (inch; (M) = metric)
Cutter diameter range Ø80 - Ø315 mm
Max. ap (mm) 5
KMP(M)080R/L-B6Z No. of teeth: 6 | Max. no. of teeth: 8 | ØD (mm): 80 | ØD1 (mm): 76 | Ød inch (metric) (mm): 25.4 (27) | a (mm): 9.5 (12.4) | b (mm): 6 (7) | E (mm): 25 (22) | F (mm): 50 | Max. ap (mm): 5 | Max. rpm: 25000 | Weight (kg): 0.75 | Fig.: 1
KMP(M)100R/L-B8Z No. of teeth: 8 | Max. no. of teeth: 10 | ØD (mm): 100 | ØD1 (mm): 95 | Ød inch (metric) (mm): 31.75 (32) | a (mm): 12.7 (14.4) | b (mm): 8 | E (mm): 32 (28) | F (mm): 50 | Max. ap (mm): 5 | Max. rpm: 21000 | Weight (kg): 0.95 | Fig.: 2
KMP(M)125R/L-B10Z No. of teeth: 10 | Max. no. of teeth: 12 | ØD (mm): 125 | ØD1 (mm): 120 | Ød inch (metric) (mm): 38.1 (40) | a (mm): 15.9 (16.4) | b (mm): 10 (9) | E (mm): 38 (30) | F (mm): 63 | Max. ap (mm): 5 | Max. rpm: 18000 | Weight (kg): 1.8 | Fig.: 2
KMP(M)160R/L-B12Z No. of teeth: 12 | Max. no. of teeth: 18 | ØD (mm): 160 | ØD1 (mm): 155 | Ød inch (metric) (mm): 50.8 (40) | a (mm): 19.0 (16.4) | b (mm): 11 (9) | E (mm): 38 (30) | F (mm): 63 | Max. ap (mm): 5 | Max. rpm: 14500 | Weight (kg): 2.9 | Fig.: 2
KMP(M)200R/L-B12Z No. of teeth: 12 | Max. no. of teeth: 24 | ØD (mm): 200 | ØD1 (mm): 195 | Ød inch (metric) (mm): 47.625 (60) | a (mm): 25.4 (25.7) | b (mm): 14 | E (mm): 38 | F (mm): 63 | Max. ap (mm): 5 | Max. rpm: 12000 | Weight (kg): 4.0 | Fig.: 3
KMP(M)250R/L-B15Z No. of teeth: 15 | Max. no. of teeth: 30 | ØD (mm): 250 | ØD1 (mm): 245 | Ød inch (metric) (mm): 47.625 (60) | a (mm): 25.4 (25.7) | b (mm): 14 | E (mm): 38 | F (mm): 63 | Max. ap (mm): 5 | Max. rpm: 9000 | Weight (kg): 6.3 | Fig.: 3
KMP(M)315R/L-B18Z No. of teeth: 18 | Max. no. of teeth: 38 | ØD (mm): 315 | ØD1 (mm): 310 | Ød inch (metric) (mm): 47.625 (60) | a (mm): 25.4 (25.7) | b (mm): 14 | E (mm): 38 | F (mm): 80 | Max. ap (mm): 5 | Max. rpm: 7000 | Weight (kg): 11.3 | Fig.: 4
