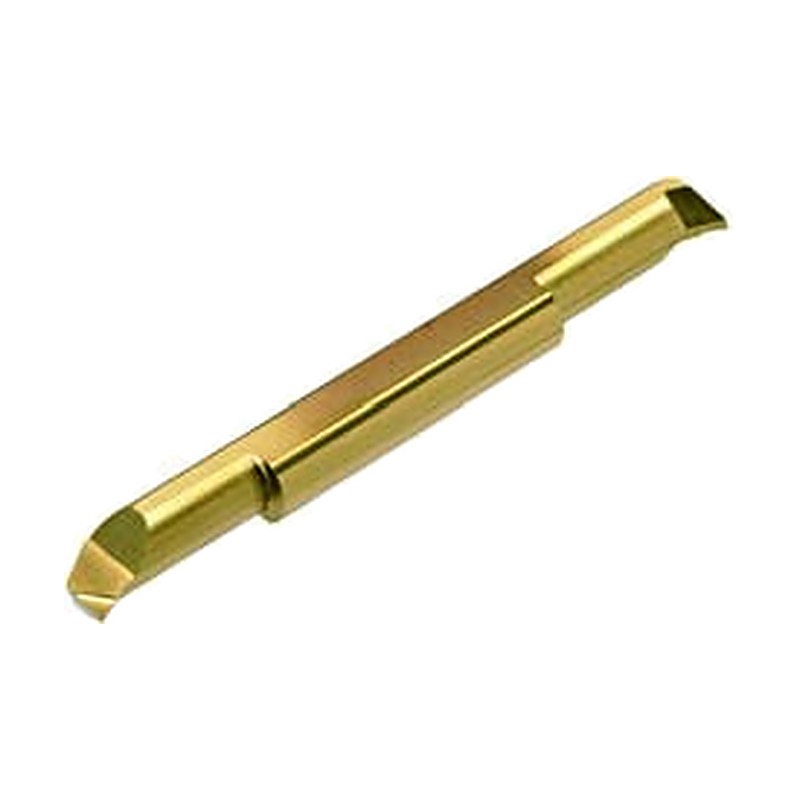

Korloy Micro Boring Bar Copying MBCR

Korloy Micro Boring Bar Copying MBCR

Solid carbide micro boring bar for internal copying from 4.2 mm minimum bore diameter.

Key features

  • Ultra fine grain carbide substrate
  • PC30M: TiN coated grade for stainless steel and heat resisting alloys
  • Z12M: uncoated grade for cast iron, aluminum and non-ferrous metals
  • Double ended and single ended types

Specifications

Material Solid carbide
Grades PC30M (coated) / Z12M (uncoated)
MBCR0415 Type: Double ended | Shank dia. d (mm): 4.0 | Min. machining dia. (mm): 4.2 | l (mm): 15 | a (mm): 1.0 | S (mm): 1.9 | L (mm): 50
MBCR0420 Type: Double ended | Shank dia. d (mm): 4.0 | Min. machining dia. (mm): 4.2 | l (mm): 20 | a (mm): 1.0 | S (mm): 1.9 | L (mm): 60
MBCR0615 Type: Double ended | Shank dia. d (mm): 6.0 | Min. machining dia. (mm): 6.2 | l (mm): 15 | a (mm): 1.3 | S (mm): 2.9 | L (mm): 55
MBCR0620 Type: Double ended | Shank dia. d (mm): 6.0 | Min. machining dia. (mm): 6.2 | l (mm): 20 | a (mm): 1.3 | S (mm): 2.9 | L (mm): 60
Boring BarsKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Micro Boring Bar Copying MBCR

Brand Korloy·Boring Bars

Available part numbers (4)

MBCR0415, MBCR0420, MBCR0615, MBCR0620

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MBCR0415Type: Double ended | Shank dia. d (mm): 4.0 | Min. machining dia. (mm): 4.2 | l (mm): 15 | a (mm): 1.0 | S (mm): 1.9 | L (mm): 50
MBCR0420Type: Double ended | Shank dia. d (mm): 4.0 | Min. machining dia. (mm): 4.2 | l (mm): 20 | a (mm): 1.0 | S (mm): 1.9 | L (mm): 60
MBCR0615Type: Double ended | Shank dia. d (mm): 6.0 | Min. machining dia. (mm): 6.2 | l (mm): 15 | a (mm): 1.3 | S (mm): 2.9 | L (mm): 55
MBCR0620Type: Double ended | Shank dia. d (mm): 6.0 | Min. machining dia. (mm): 6.2 | l (mm): 20 | a (mm): 1.3 | S (mm): 2.9 | L (mm): 60
