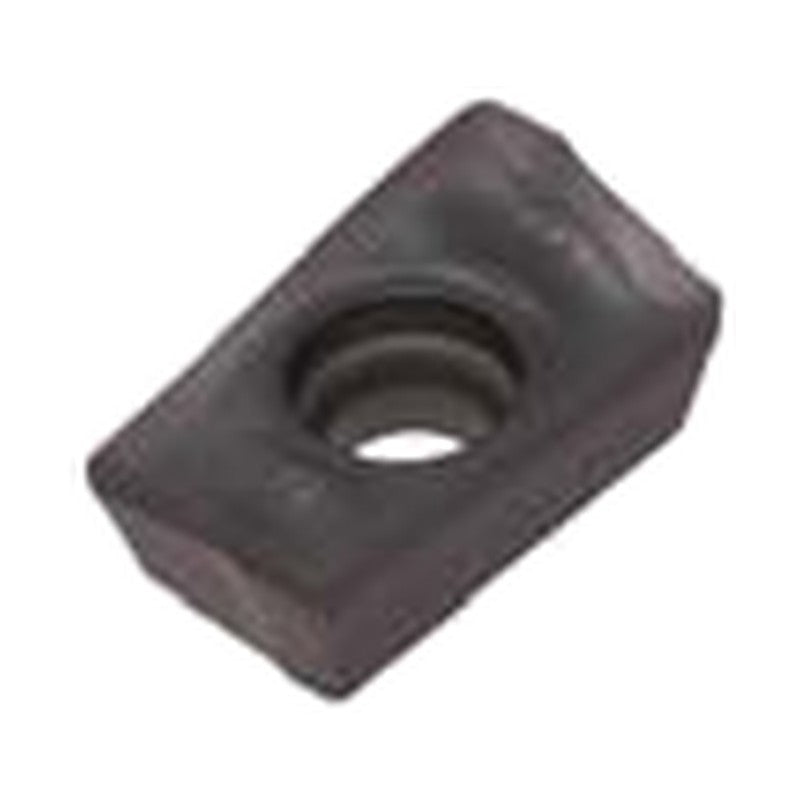

Korloy Milling Insert APMT-ML

Korloy Milling Insert APMT-ML

Shoulder milling insert with ML chip breaker for railway bogie machining.

Key features

  • Shoulder milling
  • ML chip breaker

Specifications

Application Railway components
Coating Coated
APMT0903PDER-ML PC5300 W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 0.4 | APMX (mm): 9.4 | Grade: PC5300 | Stock: Yes
APMT090308PDER-ML PC5300 W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 0.8 | APMX (mm): 9.4 | Grade: PC5300 | Stock: Yes
APMT11T3PDER-ML PC5300 W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 0.5 | APMX (mm): 11.2 | Grade: PC5300 | Stock: Yes
APMT11T308PDER-ML PC5300 W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 0.8 | APMX (mm): 11.2 | Grade: PC5300 | Stock: Yes
APMT160404PDER-ML PC5300 W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 0.4 | APMX (mm): 16.4 | Grade: PC5300 | Stock: Yes
APMT1604PDER-ML PC5300 W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 0.8 | APMX (mm): 16.4 | Grade: PC5300 | Stock: Yes
APMT180604PDER-ML PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 0.4 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT1806PDER-ML PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 0.8 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180612PDER-ML PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 1.2 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180616PDER-ML PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 1.6 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180620PDER-ML PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 2.0 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180624PDER-ML PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 2.4 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180630R-ML PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 3.0 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
Milling InsertsKorloy
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Milling Insert APMT-ML

Brand Korloy·Milling Inserts

Available part numbers (13)

APMT0903PDER-ML PC5300, APMT090308PDER-ML PC5300, APMT11T3PDER-ML PC5300, APMT11T308PDER-ML PC5300, APMT160404PDER-ML PC5300, APMT1604PDER-ML PC5300, APMT180604PDER-ML PC5300, APMT1806PDER-ML PC5300, APMT180612PDER-ML PC5300, APMT180616PDER-ML PC5300 + 3 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APMT0903PDER-ML PC5300W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 0.4 | APMX (mm): 9.4 | Grade: PC5300 | Stock: Yes
APMT090308PDER-ML PC5300W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 0.8 | APMX (mm): 9.4 | Grade: PC5300 | Stock: Yes
APMT11T3PDER-ML PC5300W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 0.5 | APMX (mm): 11.2 | Grade: PC5300 | Stock: Yes
APMT11T308PDER-ML PC5300W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 0.8 | APMX (mm): 11.2 | Grade: PC5300 | Stock: Yes
APMT160404PDER-ML PC5300W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 0.4 | APMX (mm): 16.4 | Grade: PC5300 | Stock: Yes
APMT1604PDER-ML PC5300W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 0.8 | APMX (mm): 16.4 | Grade: PC5300 | Stock: Yes
APMT180604PDER-ML PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 0.4 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT1806PDER-ML PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 0.8 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180612PDER-ML PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 1.2 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180616PDER-ML PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 1.6 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180620PDER-ML PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 2.0 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180624PDER-ML PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 2.4 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180630R-ML PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 3.0 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
