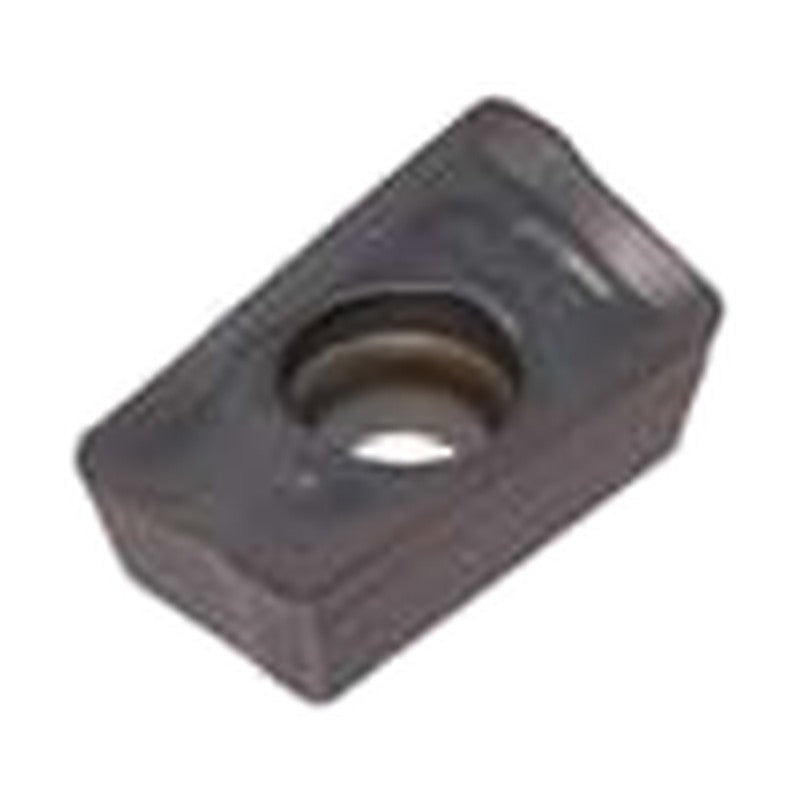

Korloy Milling Insert APMT-MM

Korloy Milling Insert APMT-MM

Shoulder milling insert with MM chip breaker for railway bogie machining.

Key features

  • Shoulder milling
  • MM chip breaker

Specifications

Application Railway components
Coating Coated
APMT060202PDSR-MM PC5300 W1 (mm): 4.24 | S (mm): 2.6 | RE (mm): 0.2 | BS (mm): 1.1 | APMX (mm): 6.0 | Grade: PC5300 | Stock: Yes
APMT0602PDSR-MM PC5300 W1 (mm): 4.24 | S (mm): 2.6 | RE (mm): 0.4 | BS (mm): 0.9 | APMX (mm): 6.0 | Grade: PC5300 | Stock: Yes
APMT060208PDSR-MM PC5300 W1 (mm): 4.24 | S (mm): 2.6 | RE (mm): 0.8 | BS (mm): 0.5 | APMX (mm): 6.0 | Grade: PC5300 | Stock: Yes
APMT060212R-MM PC5300 W1 (mm): 4.24 | S (mm): 2.6 | RE (mm): 1.2 | BS (mm): 0.1 | APMX (mm): 6.0 | Grade: PC5300 | Stock: Yes
APMT060216R-MM PC5300 W1 (mm): 4.24 | S (mm): 2.6 | RE (mm): 1.6 | APMX (mm): 6.0 | Grade: PC5300 | Stock: Yes
APMT0903PDSR-MM PC5300 W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 0.4 | BS (mm): 0.9 | APMX (mm): 9.4 | Grade: PC5300 | Stock: Yes
APMT090308PDSR-MM PC5300 W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 0.8 | BS (mm): 0.5 | APMX (mm): 9.4 | Grade: PC5300 | Stock: Yes
APMT090312R-MM PC5300 W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 1.2 | APMX (mm): 9.4 | Grade: PC5300 | Stock: Yes
APMT090316R-MM PC5300 W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 1.6 | APMX (mm): 9.4 | Grade: PC5300 | Stock: Yes
APMT090320R-MM PC5300 W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 2.0 | APMX (mm): 9.2 | Grade: PC5300 | Stock: Yes
APMT090332R-MM PC5300 W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 3.2 | APMX (mm): 9.2 | Grade: PC5300 | Stock: Yes
APMT11T3PDSR-MM PC5300 W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 0.5 | BS (mm): 1.2 | APMX (mm): 11.2 | Grade: PC5300 | Stock: Yes
APMT11T308PDSR-MM PC5300 W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 0.8 | BS (mm): 0.9 | APMX (mm): 11.2 | Grade: PC5300 | Stock: Yes
APMT11T312PDSR-MM PC5300 W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 1.2 | BS (mm): 0.5 | APMX (mm): 11.2 | Grade: PC5300 | Stock: Yes
APMT11T316R-MM PC5300 W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 1.6 | APMX (mm): 11.0 | Grade: PC5300 | Stock: Yes
APMT11T324R-MM PC5300 W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 2.4 | APMX (mm): 11.0 | Grade: PC5300 | Stock: Yes
APMT160404PDSR-MM PC5300 W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 0.4 | BS (mm): 1.1 | APMX (mm): 16.4 | Grade: PC5300 | Stock: Yes
APMT1604PDSR-MM PC5300 W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 0.8 | BS (mm): 1.1 | APMX (mm): 16.4 | Grade: PC5300 | Stock: Yes
APMT160410PDSR-MM PC5300 W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 1.0 | BS (mm): 0.9 | APMX (mm): 16.4 | Grade: PC5300 | Stock: Yes
APMT160416PDSR-MM PC5300 W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 1.6 | BS (mm): 0.3 | APMX (mm): 16.4 | Grade: PC5300 | Stock: Yes
APMT160424R-MM PC5300 W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 2.4 | APMX (mm): 16.0 | Grade: PC5300 | Stock: Yes
APMT160430R-MM PC5300 W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 3.0 | APMX (mm): 16.0 | Grade: PC5300 | Stock: Yes
APMT160432R-MM PC5300 W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 3.2 | APMX (mm): 16.0 | Grade: PC5300 | Stock: Yes
APMT160450R-MM PC5300 W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 5.0 | APMX (mm): 16.0 | Grade: PC5300 | Stock: Yes
APMT160464R-MM PC5300 W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 6.4 | APMX (mm): 16.0 | Grade: PC5300 | Stock: Yes
APMT1806PDSR-MM PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 0.8 | BS (mm): 2.2 | APMX (mm): 18.7 | Grade: PC5300 | Stock: Yes
APMT180612PDSR-MM PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 1.2 | BS (mm): 1.8 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180616PDSR-MM PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 1.6 | BS (mm): 1.4 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180624PDSR-MM PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 2.4 | BS (mm): 0.6 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180630R-MM PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 3.0 | APMX (mm): 16.7 | Grade: PC5300 | Stock: Yes
APMT180632R-MM PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 3.2 | APMX (mm): 16.7 | Grade: PC5300 | Stock: Yes
APMT180640R-MM PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 4.0 | APMX (mm): 16.7 | Grade: PC5300 | Stock: Yes
APMT180648R-MM PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 4.8 | APMX (mm): 16.7 | Grade: PC5300 | Stock: Yes
APMT180650R-MM PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 5.0 | APMX (mm): 16.7 | Grade: PC5300 | Stock: Yes
APMT180664R-MM PC5300 W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 6.4 | APMX (mm): 16.7 | Grade: PC5300 | Stock: Yes
Milling InsertsKorloy
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Milling Insert APMT-MM

Brand Korloy·Milling Inserts

Available part numbers (35)

APMT060202PDSR-MM PC5300, APMT0602PDSR-MM PC5300, APMT060208PDSR-MM PC5300, APMT060212R-MM PC5300, APMT060216R-MM PC5300, APMT0903PDSR-MM PC5300, APMT090308PDSR-MM PC5300, APMT090312R-MM PC5300, APMT090316R-MM PC5300, APMT090320R-MM PC5300 + 25 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APMT060202PDSR-MM PC5300W1 (mm): 4.24 | S (mm): 2.6 | RE (mm): 0.2 | BS (mm): 1.1 | APMX (mm): 6.0 | Grade: PC5300 | Stock: Yes
APMT0602PDSR-MM PC5300W1 (mm): 4.24 | S (mm): 2.6 | RE (mm): 0.4 | BS (mm): 0.9 | APMX (mm): 6.0 | Grade: PC5300 | Stock: Yes
APMT060208PDSR-MM PC5300W1 (mm): 4.24 | S (mm): 2.6 | RE (mm): 0.8 | BS (mm): 0.5 | APMX (mm): 6.0 | Grade: PC5300 | Stock: Yes
APMT060212R-MM PC5300W1 (mm): 4.24 | S (mm): 2.6 | RE (mm): 1.2 | BS (mm): 0.1 | APMX (mm): 6.0 | Grade: PC5300 | Stock: Yes
APMT060216R-MM PC5300W1 (mm): 4.24 | S (mm): 2.6 | RE (mm): 1.6 | APMX (mm): 6.0 | Grade: PC5300 | Stock: Yes
APMT0903PDSR-MM PC5300W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 0.4 | BS (mm): 0.9 | APMX (mm): 9.4 | Grade: PC5300 | Stock: Yes
APMT090308PDSR-MM PC5300W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 0.8 | BS (mm): 0.5 | APMX (mm): 9.4 | Grade: PC5300 | Stock: Yes
APMT090312R-MM PC5300W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 1.2 | APMX (mm): 9.4 | Grade: PC5300 | Stock: Yes
APMT090316R-MM PC5300W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 1.6 | APMX (mm): 9.4 | Grade: PC5300 | Stock: Yes
APMT090320R-MM PC5300W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 2.0 | APMX (mm): 9.2 | Grade: PC5300 | Stock: Yes
APMT090332R-MM PC5300W1 (mm): 6.21 | S (mm): 3.6 | RE (mm): 3.2 | APMX (mm): 9.2 | Grade: PC5300 | Stock: Yes
APMT11T3PDSR-MM PC5300W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 0.5 | BS (mm): 1.2 | APMX (mm): 11.2 | Grade: PC5300 | Stock: Yes
APMT11T308PDSR-MM PC5300W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 0.8 | BS (mm): 0.9 | APMX (mm): 11.2 | Grade: PC5300 | Stock: Yes
APMT11T312PDSR-MM PC5300W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 1.2 | BS (mm): 0.5 | APMX (mm): 11.2 | Grade: PC5300 | Stock: Yes
APMT11T316R-MM PC5300W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 1.6 | APMX (mm): 11.0 | Grade: PC5300 | Stock: Yes
APMT11T324R-MM PC5300W1 (mm): 6.467 | S (mm): 3.6 | RE (mm): 2.4 | APMX (mm): 11.0 | Grade: PC5300 | Stock: Yes
APMT160404PDSR-MM PC5300W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 0.4 | BS (mm): 1.1 | APMX (mm): 16.4 | Grade: PC5300 | Stock: Yes
APMT1604PDSR-MM PC5300W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 0.8 | BS (mm): 1.1 | APMX (mm): 16.4 | Grade: PC5300 | Stock: Yes
APMT160410PDSR-MM PC5300W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 1.0 | BS (mm): 0.9 | APMX (mm): 16.4 | Grade: PC5300 | Stock: Yes
APMT160416PDSR-MM PC5300W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 1.6 | BS (mm): 0.3 | APMX (mm): 16.4 | Grade: PC5300 | Stock: Yes
APMT160424R-MM PC5300W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 2.4 | APMX (mm): 16.0 | Grade: PC5300 | Stock: Yes
APMT160430R-MM PC5300W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 3.0 | APMX (mm): 16.0 | Grade: PC5300 | Stock: Yes
APMT160432R-MM PC5300W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 3.2 | APMX (mm): 16.0 | Grade: PC5300 | Stock: Yes
APMT160450R-MM PC5300W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 5.0 | APMX (mm): 16.0 | Grade: PC5300 | Stock: Yes
APMT160464R-MM PC5300W1 (mm): 9.41 | S (mm): 5.76 | RE (mm): 6.4 | APMX (mm): 16.0 | Grade: PC5300 | Stock: Yes
APMT1806PDSR-MM PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 0.8 | BS (mm): 2.2 | APMX (mm): 18.7 | Grade: PC5300 | Stock: Yes
APMT180612PDSR-MM PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 1.2 | BS (mm): 1.8 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180616PDSR-MM PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 1.6 | BS (mm): 1.4 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180624PDSR-MM PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 2.4 | BS (mm): 0.6 | APMX (mm): 17.4 | Grade: PC5300 | Stock: Yes
APMT180630R-MM PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 3.0 | APMX (mm): 16.7 | Grade: PC5300 | Stock: Yes
APMT180632R-MM PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 3.2 | APMX (mm): 16.7 | Grade: PC5300 | Stock: Yes
APMT180640R-MM PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 4.0 | APMX (mm): 16.7 | Grade: PC5300 | Stock: Yes
APMT180648R-MM PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 4.8 | APMX (mm): 16.7 | Grade: PC5300 | Stock: Yes
APMT180650R-MM PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 5.0 | APMX (mm): 16.7 | Grade: PC5300 | Stock: Yes
APMT180664R-MM PC5300W1 (mm): 10.98 | S (mm): 6.35 | RE (mm): 6.4 | APMX (mm): 16.7 | Grade: PC5300 | Stock: Yes
