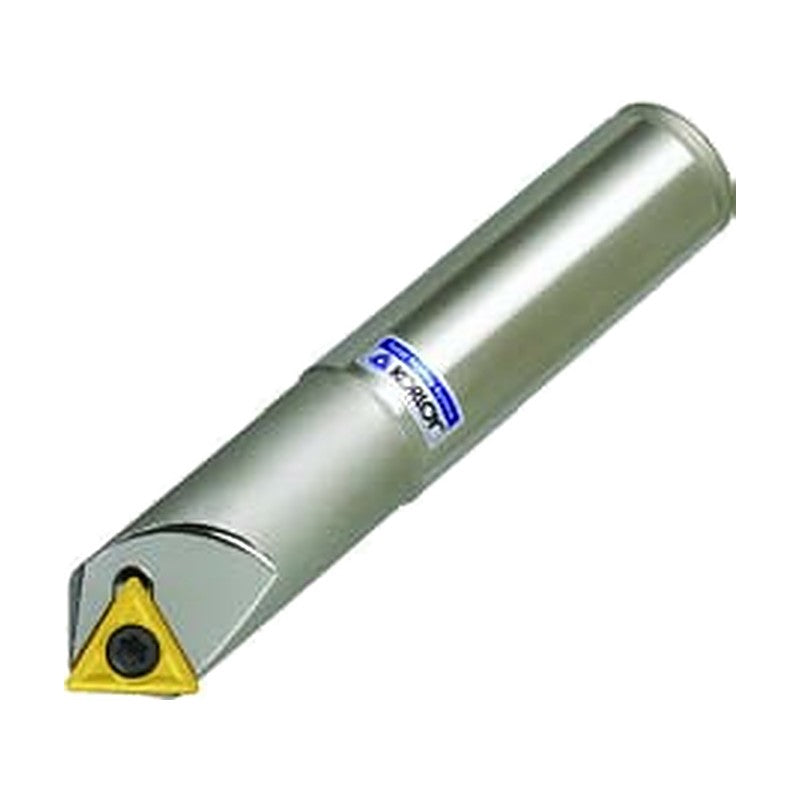

Korloy Multi Functional Chamfer Tool CE

Korloy Multi Functional Chamfer Tool CE

Indexable 45 degree chamfer end mill with one 3-cornered insert that covers centering, grooving and chamfering.

Key features

  • One holder covers centering, grooving and chamfering
  • Economical 3-cornered TWX-KC insert
  • Improved coated insert layer for wear resistance
  • AR -12~15 degrees, PR 0 degrees
  • Clamp screw FTNA0408, wrench TW15L

Specifications

Hand Right
Chamfer angle 45°
CE45-1600R-S12 Cutter dia. D (mm): 22 | Shank dia. d (mm): 12 | l (mm): 40 | L (mm): 90 | ap (mm): 10 | Insert: TWX16R-KC | Machining range (mm): Dia. 0~20 | Fig.: 2
CE45-1600R-S20 Cutter dia. D (mm): 22 | Shank dia. d (mm): 20 | l (mm): 50 | L (mm): 110 | ap (mm): 10 | Insert: TWX16R-KC | Machining range (mm): Dia. 0~20 | Fig.: 1
CE45-1600R-L20 Cutter dia. D (mm): 22 | Shank dia. d (mm): 20 | l (mm): 60 | L (mm): 200 | ap (mm): 10 | Insert: TWX16R-KC | Machining range (mm): Dia. 0~20 | Fig.: 1
CE45-2200R-S12 Cutter dia. D (mm): 29 | Shank dia. d (mm): 12 | l (mm): 40 | L (mm): 90 | ap (mm): 14 | Insert: TWX22R-KC | Machining range (mm): Dia. 0~27 | Fig.: 2
CE45-2200R-S25 Cutter dia. D (mm): 29 | Shank dia. d (mm): 25 | l (mm): 50 | L (mm): 110 | ap (mm): 14 | Insert: TWX22R-KC | Machining range (mm): Dia. 0~27 | Fig.: 1
CE45-2200R-L25 Cutter dia. D (mm): 29 | Shank dia. d (mm): 25 | l (mm): 60 | L (mm): 200 | ap (mm): 14 | Insert: TWX22R-KC | Machining range (mm): Dia. 0~27 | Fig.: 1
Chamfer ToolsKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Multi Functional Chamfer Tool CE

Brand Korloy·Chamfer Tools

Available part numbers (6)

CE45-1600R-S12, CE45-1600R-S20, CE45-1600R-L20, CE45-2200R-S12, CE45-2200R-S25, CE45-2200R-L25

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CE45-1600R-S12Cutter dia. D (mm): 22 | Shank dia. d (mm): 12 | l (mm): 40 | L (mm): 90 | ap (mm): 10 | Insert: TWX16R-KC | Machining range (mm): Dia. 0~20 | Fig.: 2
CE45-1600R-S20Cutter dia. D (mm): 22 | Shank dia. d (mm): 20 | l (mm): 50 | L (mm): 110 | ap (mm): 10 | Insert: TWX16R-KC | Machining range (mm): Dia. 0~20 | Fig.: 1
CE45-1600R-L20Cutter dia. D (mm): 22 | Shank dia. d (mm): 20 | l (mm): 60 | L (mm): 200 | ap (mm): 10 | Insert: TWX16R-KC | Machining range (mm): Dia. 0~20 | Fig.: 1
CE45-2200R-S12Cutter dia. D (mm): 29 | Shank dia. d (mm): 12 | l (mm): 40 | L (mm): 90 | ap (mm): 14 | Insert: TWX22R-KC | Machining range (mm): Dia. 0~27 | Fig.: 2
CE45-2200R-S25Cutter dia. D (mm): 29 | Shank dia. d (mm): 25 | l (mm): 50 | L (mm): 110 | ap (mm): 14 | Insert: TWX22R-KC | Machining range (mm): Dia. 0~27 | Fig.: 1
CE45-2200R-L25Cutter dia. D (mm): 29 | Shank dia. d (mm): 25 | l (mm): 60 | L (mm): 200 | ap (mm): 14 | Insert: TWX22R-KC | Machining range (mm): Dia. 0~27 | Fig.: 1
