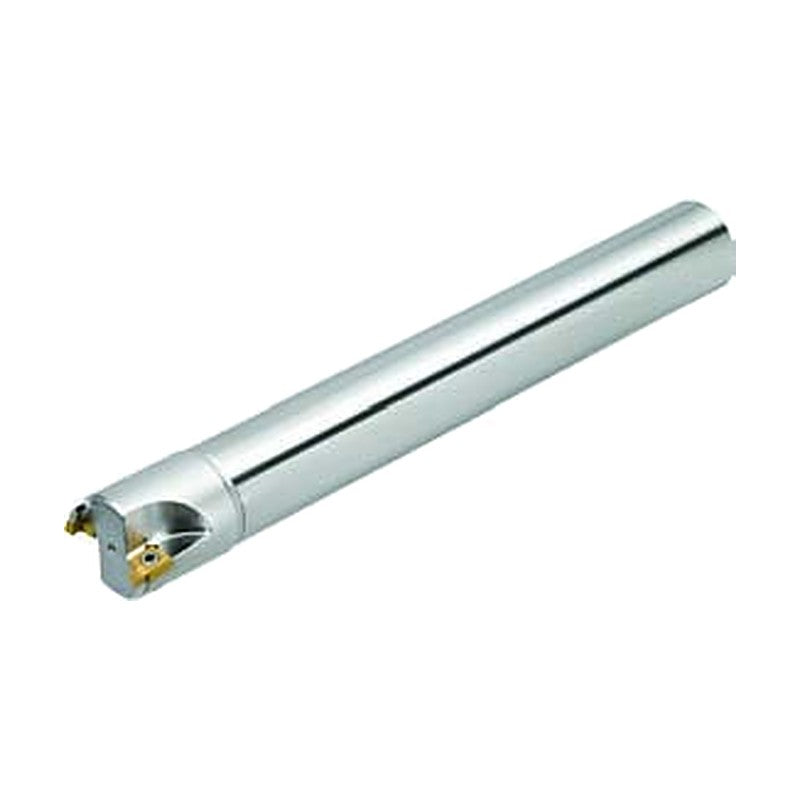

Korloy O-Ring Groove Cutter ORC

Korloy O-Ring Groove Cutter ORC

Indexable cutter for grooving O-ring seats that prevent water leaks in plastic molds.

Key features

  • Superior surface roughness compared to HSS and brazed tools
  • Optimized grade for high speed machining
  • Reduces regrinding and tool alignment time
  • Sizes P08 to P40 and G25 to G40
ORC-P08 O-ring size: P08 | Inserts: 1 | D (mm): 11.0 | D1 (mm): 5.7 | Shank dia. d (mm): 16 | l (mm): 30 | L (mm): 150 | Insert: ORG265 | Screw: FTKA0307 | Wrench: TW09S
ORC-P09 O-ring size: P09 | Inserts: 1 | D (mm): 12.0 | D1 (mm): 6.7 | Shank dia. d (mm): 16 | l (mm): 30 | L (mm): 150 | Insert: ORG265 | Screw: FTKA0307 | Wrench: TW09S
ORC-P10 O-ring size: P10 | Inserts: 1 | D (mm): 13.0 | D1 (mm): 7.7 | Shank dia. d (mm): 16 | l (mm): 30 | L (mm): 150 | Insert: ORG265 | Screw: FTKA0307 | Wrench: TW09S
ORC-P11 O-ring size: P11 | Inserts: 1 | D (mm): 15.0 | D1 (mm): 8.5 | Shank dia. d (mm): 16 | l (mm): 30 | L (mm): 150 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P12 O-ring size: P12 | Inserts: 2 | D (mm): 16.0 | D1 (mm): 9.5 | Shank dia. d (mm): 16 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P14 O-ring size: P14 | Inserts: 2 | D (mm): 18.0 | D1 (mm): 11.5 | Shank dia. d (mm): 20 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P15 O-ring size: P15 | Inserts: 2 | D (mm): 19.0 | D1 (mm): 12.5 | Shank dia. d (mm): 20 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P16 O-ring size: P16 | Inserts: 2 | D (mm): 20.0 | D1 (mm): 13.5 | Shank dia. d (mm): 20 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P18 O-ring size: P18 | Inserts: 2 | D (mm): 22.0 | D1 (mm): 15.5 | Shank dia. d (mm): 20 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P20 O-ring size: P20 | Inserts: 2 | D (mm): 24.0 | D1 (mm): 17.5 | Shank dia. d (mm): 25 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P21 O-ring size: P21 | Inserts: 2 | D (mm): 25.0 | D1 (mm): 18.5 | Shank dia. d (mm): 25 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P22 O-ring size: P22 | Inserts: 2 | D (mm): 26.0 | D1 (mm): 19.5 | Shank dia. d (mm): 25 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P24 O-ring size: P24 | Inserts: 2 | D (mm): 30.0 | D1 (mm): 20.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P25 O-ring size: P25 | Inserts: 2 | D (mm): 31.0 | D1 (mm): 21.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P26 O-ring size: P26 | Inserts: 2 | D (mm): 32.0 | D1 (mm): 22.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P28 O-ring size: P28 | Inserts: 2 | D (mm): 34.0 | D1 (mm): 24.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P29 O-ring size: P29 | Inserts: 2 | D (mm): 35.0 | D1 (mm): 25.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P30 O-ring size: P30 | Inserts: 2 | D (mm): 36.0 | D1 (mm): 26.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P31 O-ring size: P31 | Inserts: 2 | D (mm): 37.0 | D1 (mm): 27.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P32 O-ring size: P32 | Inserts: 2 | D (mm): 38.0 | D1 (mm): 28.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P34 O-ring size: P34 | Inserts: 2 | D (mm): 40.0 | D1 (mm): 30.6 | Shank dia. d (mm): 42 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P35 O-ring size: P35 | Inserts: 2 | D (mm): 41.0 | D1 (mm): 31.6 | Shank dia. d (mm): 42 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P38 O-ring size: P38 | Inserts: 2 | D (mm): 44.0 | D1 (mm): 34.6 | Shank dia. d (mm): 42 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P40 O-ring size: P40 | Inserts: 2 | D (mm): 46.0 | D1 (mm): 36.6 | Shank dia. d (mm): 42 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-G25 O-ring size: G25 | Inserts: 2 | D (mm): 30.0 | D1 (mm): 21.9 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG405 | Screw: FTGA03508 | Wrench: TW15S
ORC-G30 O-ring size: G30 | Inserts: 2 | D (mm): 35.0 | D1 (mm): 26.9 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG405 | Screw: FTGA03508 | Wrench: TW15S
ORC-G35 O-ring size: G35 | Inserts: 2 | D (mm): 40.0 | D1 (mm): 31.9 | Shank dia. d (mm): 42 | l (mm): 40 | L (mm): 250 | Insert: ORG405 | Screw: FTGA03508 | Wrench: TW15S
ORC-G40 O-ring size: G40 | Inserts: 2 | D (mm): 45.0 | D1 (mm): 36.9 | Shank dia. d (mm): 42 | l (mm): 40 | L (mm): 250 | Insert: ORG405 | Screw: FTGA03508 | Wrench: TW15S
Milling CuttersKorloy
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy O-Ring Groove Cutter ORC

Brand Korloy·Milling Cutters

Available part numbers (28)

ORC-P08, ORC-P09, ORC-P10, ORC-P11, ORC-P12, ORC-P14, ORC-P15, ORC-P16, ORC-P18, ORC-P20 + 18 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ORC-P08O-ring size: P08 | Inserts: 1 | D (mm): 11.0 | D1 (mm): 5.7 | Shank dia. d (mm): 16 | l (mm): 30 | L (mm): 150 | Insert: ORG265 | Screw: FTKA0307 | Wrench: TW09S
ORC-P09O-ring size: P09 | Inserts: 1 | D (mm): 12.0 | D1 (mm): 6.7 | Shank dia. d (mm): 16 | l (mm): 30 | L (mm): 150 | Insert: ORG265 | Screw: FTKA0307 | Wrench: TW09S
ORC-P10O-ring size: P10 | Inserts: 1 | D (mm): 13.0 | D1 (mm): 7.7 | Shank dia. d (mm): 16 | l (mm): 30 | L (mm): 150 | Insert: ORG265 | Screw: FTKA0307 | Wrench: TW09S
ORC-P11O-ring size: P11 | Inserts: 1 | D (mm): 15.0 | D1 (mm): 8.5 | Shank dia. d (mm): 16 | l (mm): 30 | L (mm): 150 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P12O-ring size: P12 | Inserts: 2 | D (mm): 16.0 | D1 (mm): 9.5 | Shank dia. d (mm): 16 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P14O-ring size: P14 | Inserts: 2 | D (mm): 18.0 | D1 (mm): 11.5 | Shank dia. d (mm): 20 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P15O-ring size: P15 | Inserts: 2 | D (mm): 19.0 | D1 (mm): 12.5 | Shank dia. d (mm): 20 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P16O-ring size: P16 | Inserts: 2 | D (mm): 20.0 | D1 (mm): 13.5 | Shank dia. d (mm): 20 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P18O-ring size: P18 | Inserts: 2 | D (mm): 22.0 | D1 (mm): 15.5 | Shank dia. d (mm): 20 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P20O-ring size: P20 | Inserts: 2 | D (mm): 24.0 | D1 (mm): 17.5 | Shank dia. d (mm): 25 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P21O-ring size: P21 | Inserts: 2 | D (mm): 25.0 | D1 (mm): 18.5 | Shank dia. d (mm): 25 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P22O-ring size: P22 | Inserts: 2 | D (mm): 26.0 | D1 (mm): 19.5 | Shank dia. d (mm): 25 | l (mm): 30 | L (mm): 200 | Insert: ORG325 | Screw: FTKA0307 | Wrench: TW09S
ORC-P24O-ring size: P24 | Inserts: 2 | D (mm): 30.0 | D1 (mm): 20.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P25O-ring size: P25 | Inserts: 2 | D (mm): 31.0 | D1 (mm): 21.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P26O-ring size: P26 | Inserts: 2 | D (mm): 32.0 | D1 (mm): 22.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P28O-ring size: P28 | Inserts: 2 | D (mm): 34.0 | D1 (mm): 24.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P29O-ring size: P29 | Inserts: 2 | D (mm): 35.0 | D1 (mm): 25.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P30O-ring size: P30 | Inserts: 2 | D (mm): 36.0 | D1 (mm): 26.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P31O-ring size: P31 | Inserts: 2 | D (mm): 37.0 | D1 (mm): 27.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P32O-ring size: P32 | Inserts: 2 | D (mm): 38.0 | D1 (mm): 28.6 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P34O-ring size: P34 | Inserts: 2 | D (mm): 40.0 | D1 (mm): 30.6 | Shank dia. d (mm): 42 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P35O-ring size: P35 | Inserts: 2 | D (mm): 41.0 | D1 (mm): 31.6 | Shank dia. d (mm): 42 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P38O-ring size: P38 | Inserts: 2 | D (mm): 44.0 | D1 (mm): 34.6 | Shank dia. d (mm): 42 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-P40O-ring size: P40 | Inserts: 2 | D (mm): 46.0 | D1 (mm): 36.6 | Shank dia. d (mm): 42 | l (mm): 40 | L (mm): 250 | Insert: ORG470 | Screw: FTGA03508 | Wrench: TW15S
ORC-G25O-ring size: G25 | Inserts: 2 | D (mm): 30.0 | D1 (mm): 21.9 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG405 | Screw: FTGA03508 | Wrench: TW15S
ORC-G30O-ring size: G30 | Inserts: 2 | D (mm): 35.0 | D1 (mm): 26.9 | Shank dia. d (mm): 32 | l (mm): 40 | L (mm): 250 | Insert: ORG405 | Screw: FTGA03508 | Wrench: TW15S
ORC-G35O-ring size: G35 | Inserts: 2 | D (mm): 40.0 | D1 (mm): 31.9 | Shank dia. d (mm): 42 | l (mm): 40 | L (mm): 250 | Insert: ORG405 | Screw: FTGA03508 | Wrench: TW15S
ORC-G40O-ring size: G40 | Inserts: 2 | D (mm): 45.0 | D1 (mm): 36.9 | Shank dia. d (mm): 42 | l (mm): 40 | L (mm): 250 | Insert: ORG405 | Screw: FTGA03508 | Wrench: TW15S
