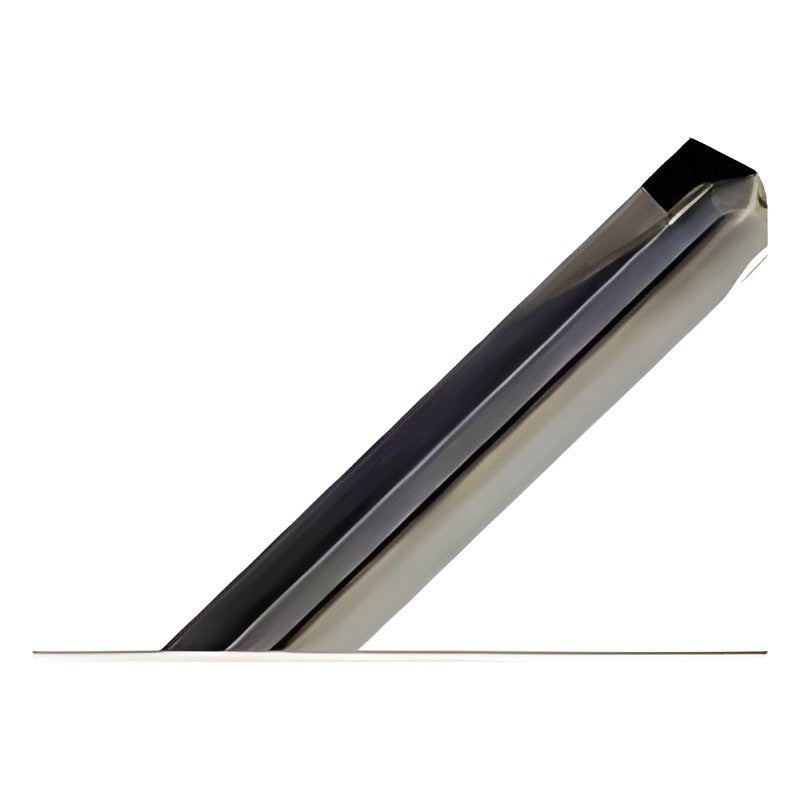

Korloy PCD Drill PDD

Korloy PCD Drill PDD

PCD-tipped drill for high-precision holemaking in aluminum alloys and composites with IT7-8 hole tolerance.

Key features

  • Improved surface roughness and hole tolerance
  • High-precision holemaking for aerospace components and composites
  • Hole tolerance IT7 - IT8
  • Longer tool life and higher productivity
  • Stepped design for sharp cutting and lower cycle time

Specifications

Cutting edge material PCD
Point angle 120°
Recommended vc (Al alloy) 50 - 250 m/min
PDD0500 ØD: 5.0 mm | Ød: 5.0 mm | ℓ: 30 mm | L: 80 mm
PDD0550 ØD: 5.5 mm | Ød: 5.5 mm | ℓ: 30 mm | L: 80 mm
PDD0600 ØD: 6.0 mm | Ød: 6.0 mm | ℓ: 30 mm | L: 80 mm
PDD0650 ØD: 6.5 mm | Ød: 6.5 mm | ℓ: 40 mm | L: 95 mm
PDD0700 ØD: 7.0 mm | Ød: 7.0 mm | ℓ: 40 mm | L: 95 mm
PDD0750 ØD: 7.5 mm | Ød: 7.5 mm | ℓ: 45 mm | L: 100 mm
PDD0800 ØD: 8.0 mm | Ød: 8.0 mm | ℓ: 45 mm | L: 100 mm
PDD0850 ØD: 8.5 mm | Ød: 8.5 mm | ℓ: 50 mm | L: 110 mm
PDD0900 ØD: 9.0 mm | Ød: 9.0 mm | ℓ: 50 mm | L: 110 mm
PDD0950 ØD: 9.5 mm | Ød: 9.5 mm | ℓ: 55 mm | L: 115 mm
PDD1000 ØD: 10.0 mm | Ød: 10.0 mm | ℓ: 55 mm | L: 115 mm
PDD1050 ØD: 10.5 mm | Ød: 10.5 mm | ℓ: 60 mm | L: 120 mm
PDD1100 ØD: 11.0 mm | Ød: 11.0 mm | ℓ: 60 mm | L: 120 mm
PDD1150 ØD: 11.5 mm | Ød: 11.5 mm | ℓ: 65 mm | L: 125 mm
PDD1200 ØD: 12.0 mm | Ød: 12.0 mm | ℓ: 65 mm | L: 125 mm
PCD DrillsKorloy
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Drill PDD

Brand Korloy·PCD Drills

Available part numbers (15)

PDD0500, PDD0550, PDD0600, PDD0650, PDD0700, PDD0750, PDD0800, PDD0850, PDD0900, PDD0950 + 5 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PDD0500ØD: 5.0 mm | Ød: 5.0 mm | ℓ: 30 mm | L: 80 mm
PDD0550ØD: 5.5 mm | Ød: 5.5 mm | ℓ: 30 mm | L: 80 mm
PDD0600ØD: 6.0 mm | Ød: 6.0 mm | ℓ: 30 mm | L: 80 mm
PDD0650ØD: 6.5 mm | Ød: 6.5 mm | ℓ: 40 mm | L: 95 mm
PDD0700ØD: 7.0 mm | Ød: 7.0 mm | ℓ: 40 mm | L: 95 mm
PDD0750ØD: 7.5 mm | Ød: 7.5 mm | ℓ: 45 mm | L: 100 mm
PDD0800ØD: 8.0 mm | Ød: 8.0 mm | ℓ: 45 mm | L: 100 mm
PDD0850ØD: 8.5 mm | Ød: 8.5 mm | ℓ: 50 mm | L: 110 mm
PDD0900ØD: 9.0 mm | Ød: 9.0 mm | ℓ: 50 mm | L: 110 mm
PDD0950ØD: 9.5 mm | Ød: 9.5 mm | ℓ: 55 mm | L: 115 mm
PDD1000ØD: 10.0 mm | Ød: 10.0 mm | ℓ: 55 mm | L: 115 mm
PDD1050ØD: 10.5 mm | Ød: 10.5 mm | ℓ: 60 mm | L: 120 mm
PDD1100ØD: 11.0 mm | Ød: 11.0 mm | ℓ: 60 mm | L: 120 mm
PDD1150ØD: 11.5 mm | Ød: 11.5 mm | ℓ: 65 mm | L: 125 mm
PDD1200ØD: 12.0 mm | Ød: 12.0 mm | ℓ: 65 mm | L: 125 mm
