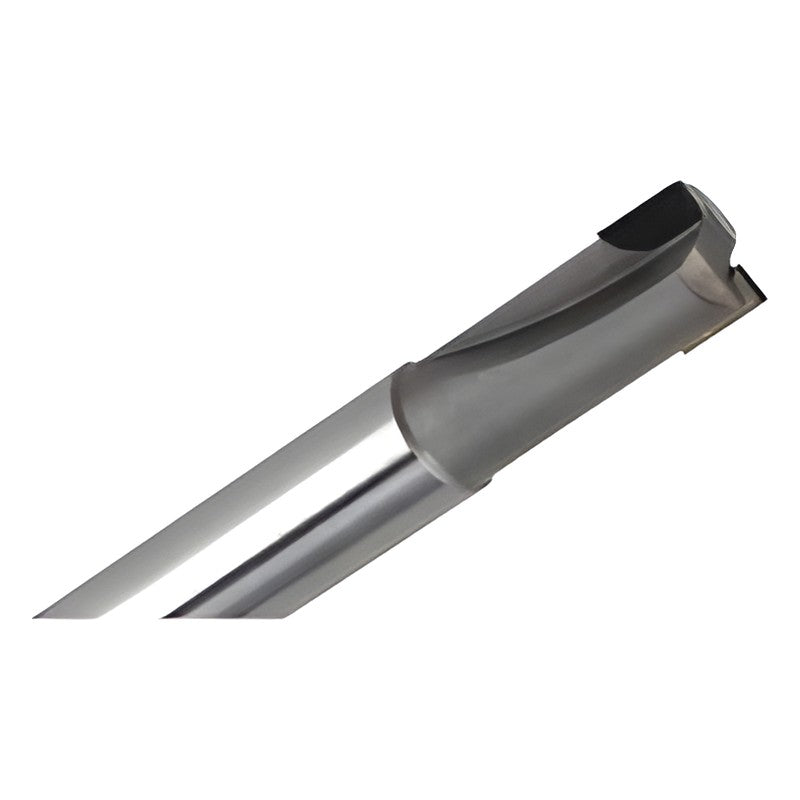

Korloy PCD End Mill PDE1000/2000

Korloy PCD End Mill PDE1000/2000

Brazed PCD-tipped end mill (1 or 2 flutes) for high-speed finishing of non-ferrous metals and reinforced plastics.

Key features

  • High rake angle reduces burr formation
  • High-speed, high-efficiency machining
  • Improved surface finish
  • Suited to non-ferrous metals and reinforced plastics

Specifications

Cutting edge material PCD
Recommended vc (Al alloy, copper) 30 - 300 m/min
Recommended fz (Al alloy, copper) 0.02 - 0.07 mm/t
PDE1040 No. of flutes: 1 | ØD: 4 mm | Ød: 6 mm | ℓ: 15 mm | L: 45 mm
PDE1050 No. of flutes: 1 | ØD: 5 mm | Ød: 6 mm | ℓ: 15 mm | L: 50 mm
PDE1060 No. of flutes: 1 | ØD: 6 mm | Ød: 6 mm | ℓ: 20 mm | L: 60 mm
PDE2060 No. of flutes: 2 | ØD: 6 mm | Ød: 8 mm | ℓ: 20 mm | L: 60 mm
PDE2070 No. of flutes: 2 | ØD: 7 mm | Ød: 8 mm | ℓ: 20 mm | L: 60 mm
PDE2080 No. of flutes: 2 | ØD: 8 mm | Ød: 8 mm | ℓ: 20 mm | L: 60 mm
PDE2090 No. of flutes: 2 | ØD: 9 mm | Ød: 10 mm | ℓ: 25 mm | L: 70 mm
PDE2100 No. of flutes: 2 | ØD: 10 mm | Ød: 10 mm | ℓ: 25 mm | L: 70 mm
PDE2120 No. of flutes: 2 | ØD: 12 mm | Ød: 12 mm | ℓ: 25 mm | L: 75 mm
PCD End MillsKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD End Mill PDE1000/2000

Brand Korloy·PCD End Mills

Available part numbers (9)

PDE1040, PDE1050, PDE1060, PDE2060, PDE2070, PDE2080, PDE2090, PDE2100, PDE2120

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PDE1040No. of flutes: 1 | ØD: 4 mm | Ød: 6 mm | ℓ: 15 mm | L: 45 mm
PDE1050No. of flutes: 1 | ØD: 5 mm | Ød: 6 mm | ℓ: 15 mm | L: 50 mm
PDE1060No. of flutes: 1 | ØD: 6 mm | Ød: 6 mm | ℓ: 20 mm | L: 60 mm
PDE2060No. of flutes: 2 | ØD: 6 mm | Ød: 8 mm | ℓ: 20 mm | L: 60 mm
PDE2070No. of flutes: 2 | ØD: 7 mm | Ød: 8 mm | ℓ: 20 mm | L: 60 mm
PDE2080No. of flutes: 2 | ØD: 8 mm | Ød: 8 mm | ℓ: 20 mm | L: 60 mm
PDE2090No. of flutes: 2 | ØD: 9 mm | Ød: 10 mm | ℓ: 25 mm | L: 70 mm
PDE2100No. of flutes: 2 | ØD: 10 mm | Ød: 10 mm | ℓ: 25 mm | L: 70 mm
PDE2120No. of flutes: 2 | ØD: 12 mm | Ød: 12 mm | ℓ: 25 mm | L: 75 mm
