• Korloy PCD Face Cutter PDF4000/6000 HSK
1 1

Korloy PCD Face Cutter PDF4000/6000 HSK

Korloy PCD Face Cutter PDF4000/6000 HSK

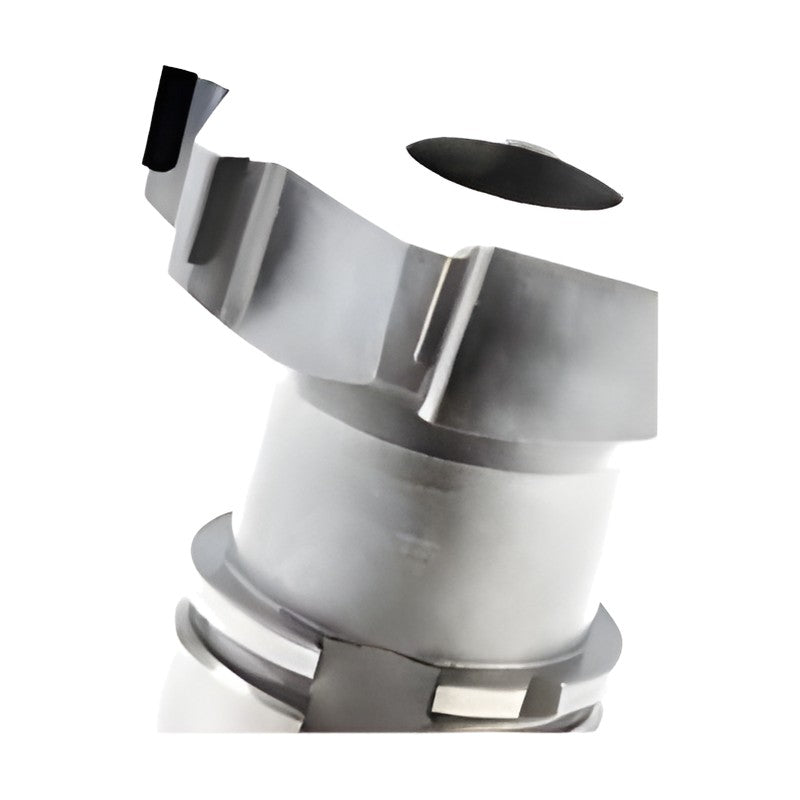

Solid-body PCD face milling mono tool with integrated HSK shank and through coolant for aluminum alloys and copper.

Key features

  • Integrated HSK arbor for high-precision machining
  • Standard through-coolant
  • Good performance in roughing and finishing
  • Balance level G2.5
  • Surface roughness Rz 3 - 25 µm

Specifications

Cutting edge material PCD
Approach angle 90°
Recommended vc 200 - 2,000 m/min
Recommended fz 0.02 - 0.1 mm/t
r 0.5 mm
PDF4032-HSK50A No. of blades: 4 | ØD: 32 mm | r: 0.5 mm | ap: 8 mm | ℓ: 50 mm | L: 120 mm
PDF4040-HSK50A No. of blades: 4 | ØD: 40 mm | r: 0.5 mm | ap: 8 mm | ℓ: 50 mm | L: 120 mm
PDF4032-HSK63A No. of blades: 4 | ØD: 32 mm | r: 0.5 mm | ap: 8 mm | ℓ: 50 mm | L: 120 mm
PDF4040-HSK63A No. of blades: 4 | ØD: 40 mm | r: 0.5 mm | ap: 8 mm | ℓ: 50 mm | L: 120 mm
PDF4050-HSK63A No. of blades: 4 | ØD: 50 mm | r: 0.5 mm | ap: 8 mm | ℓ: 50 mm | L: 120 mm
PDF6063-HSK63A No. of blades: 6 | ØD: 63 mm | r: 0.5 mm | ap: 12 mm | ℓ: - | L: 100 mm
PDF6063-HSK100A No. of blades: 6 | ØD: 63 mm | r: 0.5 mm | ap: 12 mm | ℓ: - | L: 100 mm
Milling CuttersKorloy
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Face Cutter PDF4000/6000 HSK

Brand Korloy·Milling Cutters

Available part numbers (7)

PDF4032-HSK50A, PDF4040-HSK50A, PDF4032-HSK63A, PDF4040-HSK63A, PDF4050-HSK63A, PDF6063-HSK63A, PDF6063-HSK100A

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PDF4032-HSK50ANo. of blades: 4 | ØD: 32 mm | r: 0.5 mm | ap: 8 mm | ℓ: 50 mm | L: 120 mm
PDF4040-HSK50ANo. of blades: 4 | ØD: 40 mm | r: 0.5 mm | ap: 8 mm | ℓ: 50 mm | L: 120 mm
PDF4032-HSK63ANo. of blades: 4 | ØD: 32 mm | r: 0.5 mm | ap: 8 mm | ℓ: 50 mm | L: 120 mm
PDF4040-HSK63ANo. of blades: 4 | ØD: 40 mm | r: 0.5 mm | ap: 8 mm | ℓ: 50 mm | L: 120 mm
PDF4050-HSK63ANo. of blades: 4 | ØD: 50 mm | r: 0.5 mm | ap: 8 mm | ℓ: 50 mm | L: 120 mm
PDF6063-HSK63ANo. of blades: 6 | ØD: 63 mm | r: 0.5 mm | ap: 12 mm | ℓ: - | L: 100 mm
PDF6063-HSK100ANo. of blades: 6 | ØD: 63 mm | r: 0.5 mm | ap: 12 mm | ℓ: - | L: 100 mm
