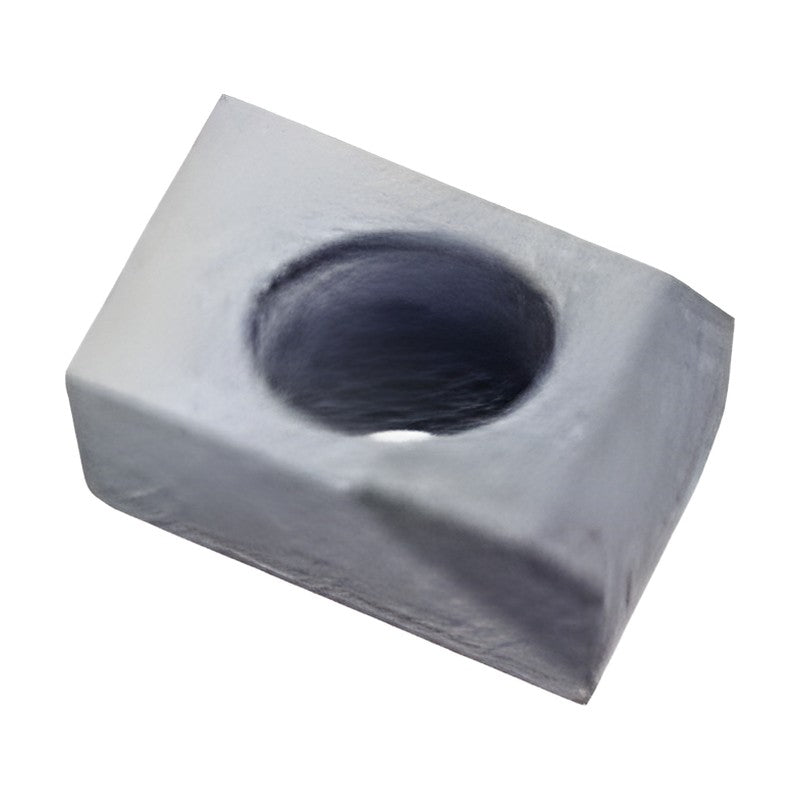

Korloy PCD Milling Insert CDEW

CDEW 1204 PCD milling insert for Korloy Aero Mill APD(M)-A face milling cutters, in facing and wiper versions.

Key features

PCD cutting edge for high-speed face milling of aluminum alloys
Facing (XAF/NAF) and wiper (XAW/NAW) edge versions
NAF/NAW versions with strengthened edge
Fine run-out adjustment in Korloy Aero Mill cutters

Specifications

Applicable holder	APD(M)-A (Aero Mill)
Thickness	-
Cutting edge material	PCD
Grade	DP200
Length	12.7 mm
Width	4.76 mm
Hole size	4.4 mm

CDEW1204R-XAF DP200		Grade: DP200 \| Hand: Right \| Application: Facing \| Edge: Standard edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
CDEW1204L-XAF DP200		Grade: DP200 \| Hand: Left \| Application: Facing \| Edge: Standard edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
CDEW1204R-NAF DP200		Grade: DP200 \| Hand: Right \| Application: Facing \| Edge: Strengthened edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
CDEW1204L-NAF DP200		Grade: DP200 \| Hand: Left \| Application: Facing \| Edge: Strengthened edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
CDEW1204R-XAW DP200		Grade: DP200 \| Hand: Right \| Application: Wiper \| Edge: Standard edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
CDEW1204L-XAW DP200		Grade: DP200 \| Hand: Left \| Application: Wiper \| Edge: Standard edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
CDEW1204R-NAW DP200		Grade: DP200 \| Hand: Right \| Application: Wiper \| Edge: Strengthened edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
CDEW1204L-NAW DP200		Grade: DP200 \| Hand: Left \| Application: Wiper \| Edge: Strengthened edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm

PCD InsertsKorloy

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Milling Insert CDEW

Brand Korloy·PCD Inserts

Available part numbers (8)

CDEW1204R-XAF DP200, CDEW1204L-XAF DP200, CDEW1204R-NAF DP200, CDEW1204L-NAF DP200, CDEW1204R-XAW DP200, CDEW1204L-XAW DP200, CDEW1204R-NAW DP200, CDEW1204L-NAW DP200

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CDEW1204R-XAF DP200	Grade: DP200 \| Hand: Right \| Application: Facing \| Edge: Standard edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
	CDEW1204L-XAF DP200	Grade: DP200 \| Hand: Left \| Application: Facing \| Edge: Standard edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
	CDEW1204R-NAF DP200	Grade: DP200 \| Hand: Right \| Application: Facing \| Edge: Strengthened edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
	CDEW1204L-NAF DP200	Grade: DP200 \| Hand: Left \| Application: Facing \| Edge: Strengthened edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
	CDEW1204R-XAW DP200	Grade: DP200 \| Hand: Right \| Application: Wiper \| Edge: Standard edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
	CDEW1204L-XAW DP200	Grade: DP200 \| Hand: Left \| Application: Wiper \| Edge: Standard edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
	CDEW1204R-NAW DP200	Grade: DP200 \| Hand: Right \| Application: Wiper \| Edge: Strengthened edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
	CDEW1204L-NAW DP200	Grade: DP200 \| Hand: Left \| Application: Wiper \| Edge: Strengthened edge \| Length: 12.7 mm \| Width: 4.76 mm \| Hole size: 4.4 mm
