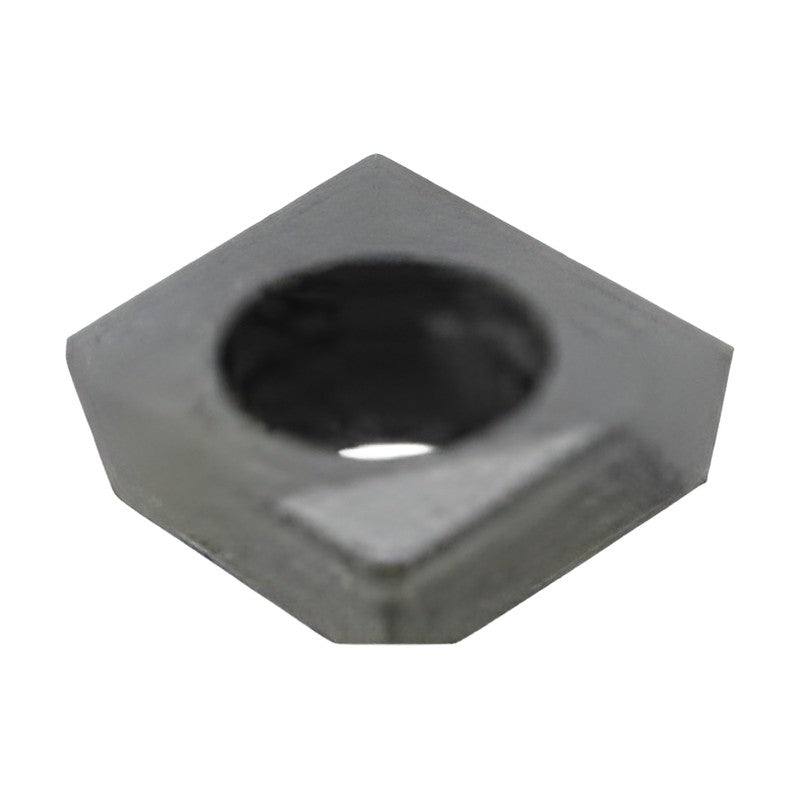

Korloy PCD Milling Insert SNEW

Korloy PCD Milling Insert SNEW

SNEW 09T3 PCD milling insert for Korloy Aero Mill Mini MAPD/MAPDS cutters, in facing and wiper versions.

Key features

  • PCD cutting edge for high-speed face milling of aluminum alloys
  • Facing (XAF/NAF) and wiper (XAW/NAW) edge versions
  • NAF/NAW versions with strengthened edge
  • Fine run-out adjustment in Korloy Aero Mill cutters

Specifications

Applicable holder MAPD(S) (Aero Mill Mini)
Thickness -
Cutting edge material PCD
Grade DP200
Hand Right
Length 9.525 mm
Width 3.97 mm
Hole size 4.4 mm
SNEW09T3ADTR-XAF DP200 Grade: DP200 | Hand: Right | Application: Facing | Edge: Standard edge | Length: 9.525 mm | Width: 3.97 mm | Hole size: 4.4 mm
SNEW09T3ADTR-NAF DP200 Grade: DP200 | Hand: Right | Application: Facing | Edge: Strengthened edge | Length: 9.525 mm | Width: 3.97 mm | Hole size: 4.4 mm
SNEW09T3ADTR-XAW DP200 Grade: DP200 | Hand: Right | Application: Wiper | Edge: Standard edge | Length: 9.525 mm | Width: 3.97 mm | Hole size: 4.4 mm
SNEW09T3ADTR-NAW DP200 Grade: DP200 | Hand: Right | Application: Wiper | Edge: Strengthened edge | Length: 9.525 mm | Width: 3.97 mm | Hole size: 4.4 mm
PCD InsertsKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Milling Insert SNEW

Brand Korloy·PCD Inserts

Available part numbers (4)

SNEW09T3ADTR-XAF DP200, SNEW09T3ADTR-NAF DP200, SNEW09T3ADTR-XAW DP200, SNEW09T3ADTR-NAW DP200

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNEW09T3ADTR-XAF DP200Grade: DP200 | Hand: Right | Application: Facing | Edge: Standard edge | Length: 9.525 mm | Width: 3.97 mm | Hole size: 4.4 mm
SNEW09T3ADTR-NAF DP200Grade: DP200 | Hand: Right | Application: Facing | Edge: Strengthened edge | Length: 9.525 mm | Width: 3.97 mm | Hole size: 4.4 mm
SNEW09T3ADTR-XAW DP200Grade: DP200 | Hand: Right | Application: Wiper | Edge: Standard edge | Length: 9.525 mm | Width: 3.97 mm | Hole size: 4.4 mm
SNEW09T3ADTR-NAW DP200Grade: DP200 | Hand: Right | Application: Wiper | Edge: Strengthened edge | Length: 9.525 mm | Width: 3.97 mm | Hole size: 4.4 mm
