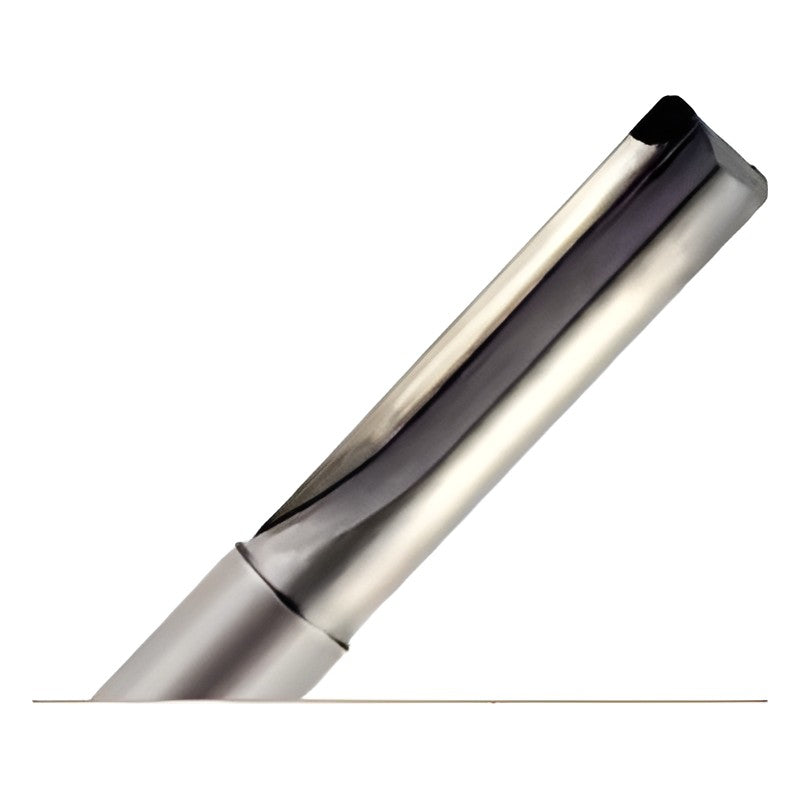

Korloy PCD Reamer PDR

Korloy PCD Reamer PDR

PCD-tipped reamer (2 or 4 flutes) for high-accuracy, fine-finish holes in aluminum alloys.

Key features

  • Tool life up to 10 times that of carbide reamers
  • Excellent surface finish and high accuracy
  • High cutting angle shortens cutting time
  • Clean, burr-free surfaces at cutting speeds over 300 m/min
  • Stable machining with water-soluble emulsion

Specifications

Cutting edge material PCD
Recommended vc (Al alloy) 50 - 250 m/min
Recommended fz (Al alloy) 0.05 - 0.20 mm/t
PDR2050 No. of flutes: 2 | ØD: 5.0 mm | Ød: 6.0 mm | ℓ: 30 mm | L: 65 mm
PDR2060 No. of flutes: 2 | ØD: 6.0 mm | Ød: 6.0 mm | ℓ: 40 mm | L: 75 mm
PDR2070 No. of flutes: 2 | ØD: 7.0 mm | Ød: 8.0 mm | ℓ: 40 mm | L: 75 mm
PDR2080 No. of flutes: 2 | ØD: 8.0 mm | Ød: 8.0 mm | ℓ: 40 mm | L: 75 mm
PDR2090 No. of flutes: 2 | ØD: 9.0 mm | Ød: 10.0 mm | ℓ: 40 mm | L: 85 mm
PDR2100 No. of flutes: 2 | ØD: 10.0 mm | Ød: 10.0 mm | ℓ: 40 mm | L: 85 mm
PDR2120 No. of flutes: 2 | ØD: 12.0 mm | Ød: 12.0 mm | ℓ: 50 mm | L: 95 mm
PDR2140 No. of flutes: 2 | ØD: 14.0 mm | Ød: 16.0 mm | ℓ: 50 mm | L: 95 mm
PDR2150 No. of flutes: 2 | ØD: 15.0 mm | Ød: 16.0 mm | ℓ: 50 mm | L: 100 mm
PDR4160 No. of flutes: 4 | ØD: 16.0 mm | Ød: 16.0 mm | ℓ: 50 mm | L: 100 mm
PDR4180 No. of flutes: 4 | ØD: 18.0 mm | Ød: 20.0 mm | ℓ: 60 mm | L: 110 mm
PDR4200 No. of flutes: 4 | ØD: 20.0 mm | Ød: 20.0 mm | ℓ: 60 mm | L: 110 mm
PCD ReamersKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Reamer PDR

Brand Korloy·PCD Reamers

Available part numbers (12)

PDR2050, PDR2060, PDR2070, PDR2080, PDR2090, PDR2100, PDR2120, PDR2140, PDR2150, PDR4160 + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PDR2050No. of flutes: 2 | ØD: 5.0 mm | Ød: 6.0 mm | ℓ: 30 mm | L: 65 mm
PDR2060No. of flutes: 2 | ØD: 6.0 mm | Ød: 6.0 mm | ℓ: 40 mm | L: 75 mm
PDR2070No. of flutes: 2 | ØD: 7.0 mm | Ød: 8.0 mm | ℓ: 40 mm | L: 75 mm
PDR2080No. of flutes: 2 | ØD: 8.0 mm | Ød: 8.0 mm | ℓ: 40 mm | L: 75 mm
PDR2090No. of flutes: 2 | ØD: 9.0 mm | Ød: 10.0 mm | ℓ: 40 mm | L: 85 mm
PDR2100No. of flutes: 2 | ØD: 10.0 mm | Ød: 10.0 mm | ℓ: 40 mm | L: 85 mm
PDR2120No. of flutes: 2 | ØD: 12.0 mm | Ød: 12.0 mm | ℓ: 50 mm | L: 95 mm
PDR2140No. of flutes: 2 | ØD: 14.0 mm | Ød: 16.0 mm | ℓ: 50 mm | L: 95 mm
PDR2150No. of flutes: 2 | ØD: 15.0 mm | Ød: 16.0 mm | ℓ: 50 mm | L: 100 mm
PDR4160No. of flutes: 4 | ØD: 16.0 mm | Ød: 16.0 mm | ℓ: 50 mm | L: 100 mm
PDR4180No. of flutes: 4 | ØD: 18.0 mm | Ød: 20.0 mm | ℓ: 60 mm | L: 110 mm
PDR4200No. of flutes: 4 | ØD: 20.0 mm | Ød: 20.0 mm | ℓ: 60 mm | L: 110 mm
