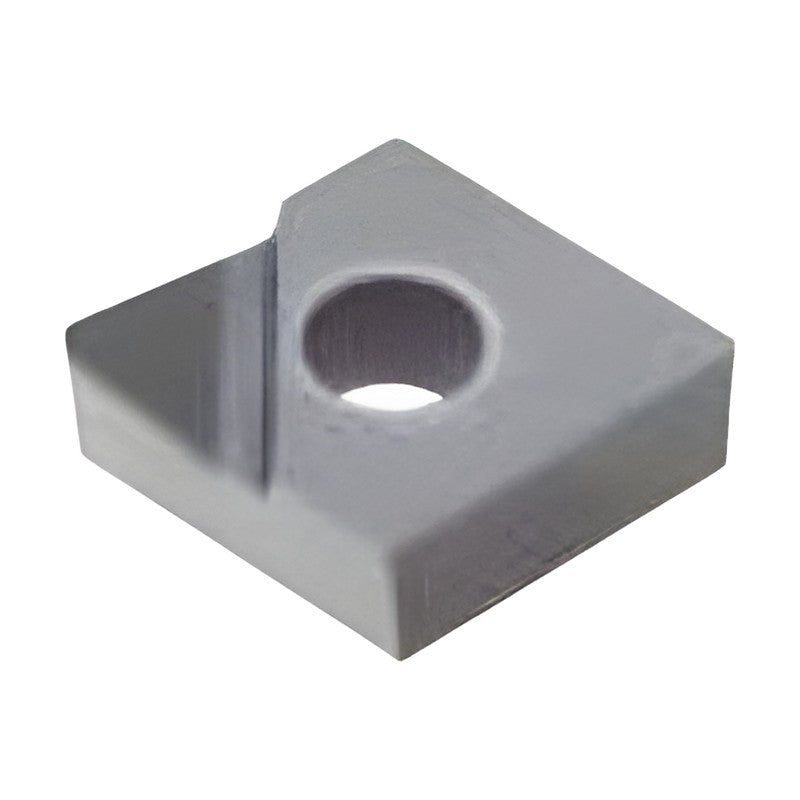

Korloy PCD Turning Insert CNMM

Korloy PCD Turning Insert CNMM

CNMM negative turning insert with brazed PCD tip for high-precision finishing of aluminum alloys and non-ferrous metals.

Key features

  • Polycrystalline diamond (PCD) cutting edge for extreme hardness and wear resistance
  • Designed for aluminum alloys and non-ferrous metals
  • High precision and excellent surface finish
  • Grades DP90 (fine grain), DP150 (medium grain) and DP200 (coarse grain) for high-Si aluminum

Specifications

Insert shape 80° Negative
Cutting edge material PCD (polycrystalline diamond)
Applicable holders DCBNR/L, DCLNR/L, MCKNR/L, MCLNR/L, MCMNN, PCBNR/L, PCLNR/L
Workpiece Aluminum alloys, non-ferrous metals
Inscribed circle 12.7 mm
Thickness 4.76 mm
Hole size 5.16 mm
CNMM120404 DP150 Grade: DP150 | Inscribed circle: 12.7 mm | Thickness: 4.76 mm | Nose radius: 0.4 mm | Hole size: 5.16 mm
CNMM120408 DP150 Grade: DP150 | Inscribed circle: 12.7 mm | Thickness: 4.76 mm | Nose radius: 0.8 mm | Hole size: 5.16 mm
CNMM120412 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 12.7 mm | Thickness: 4.76 mm | Nose radius: 1.2 mm | Hole size: 5.16 mm
PCD InsertsKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Turning Insert CNMM

Brand Korloy·PCD Inserts

Available part numbers (3)

CNMM120404 DP150, CNMM120408 DP150, CNMM120412

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CNMM120404 DP150Grade: DP150 | Inscribed circle: 12.7 mm | Thickness: 4.76 mm | Nose radius: 0.4 mm | Hole size: 5.16 mm
CNMM120408 DP150Grade: DP150 | Inscribed circle: 12.7 mm | Thickness: 4.76 mm | Nose radius: 0.8 mm | Hole size: 5.16 mm
CNMM120412Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 12.7 mm | Thickness: 4.76 mm | Nose radius: 1.2 mm | Hole size: 5.16 mm
