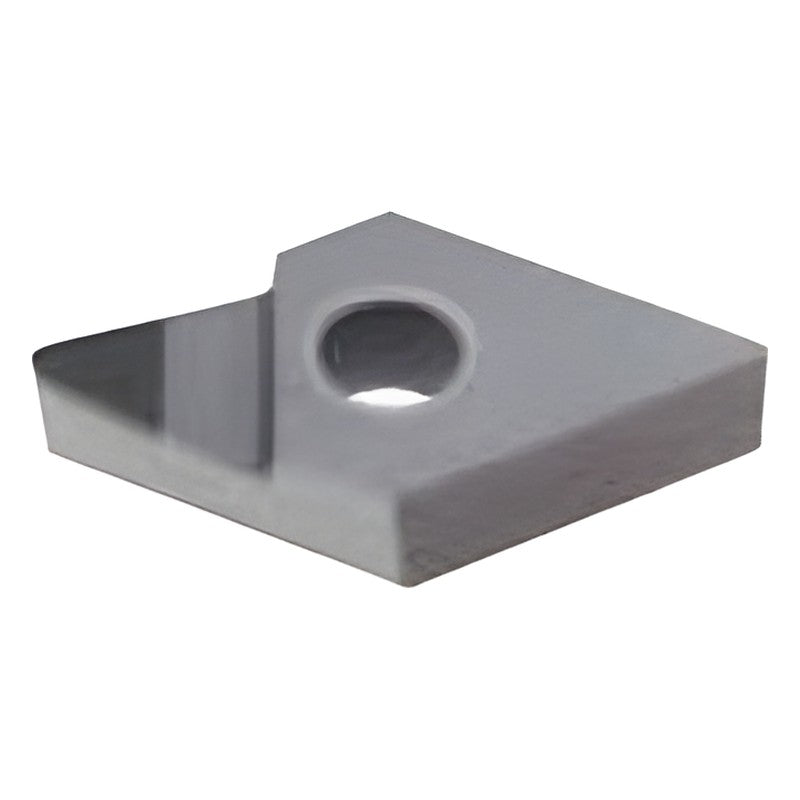

Korloy PCD Turning Insert DNMM

Korloy PCD Turning Insert DNMM

DNMM negative turning insert with brazed PCD tip for high-precision finishing of aluminum alloys and non-ferrous metals.

Key features

  • Polycrystalline diamond (PCD) cutting edge for extreme hardness and wear resistance
  • Designed for aluminum alloys and non-ferrous metals
  • High precision and excellent surface finish
  • Grades DP90 (fine grain), DP150 (medium grain) and DP200 (coarse grain) for high-Si aluminum

Specifications

Insert shape 55° Negative
Cutting edge material PCD (polycrystalline diamond)
Applicable holders DDJNR/L, MDJNR/L, MDNNN, MDQNR/L, MDUNR/L, PDJNR/L, PDNNR/L, PDSNR/L, PDUNR/L
Workpiece Aluminum alloys, non-ferrous metals
Inscribed circle 12.7 mm
Thickness 4.76 mm
Hole size 5.16 mm
DNMM150404 DP150 Grade: DP150 | Inscribed circle: 12.7 mm | Thickness: 4.76 mm | Nose radius: 0.4 mm | Hole size: 5.16 mm
DNMM150408 DP150 Grade: DP150 | Inscribed circle: 12.7 mm | Thickness: 4.76 mm | Nose radius: 0.8 mm | Hole size: 5.16 mm
DNMM150412 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 12.7 mm | Thickness: 4.76 mm | Nose radius: 1.2 mm | Hole size: 5.16 mm
PCD InsertsKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Turning Insert DNMM

Brand Korloy·PCD Inserts

Available part numbers (3)

DNMM150404 DP150, DNMM150408 DP150, DNMM150412

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DNMM150404 DP150Grade: DP150 | Inscribed circle: 12.7 mm | Thickness: 4.76 mm | Nose radius: 0.4 mm | Hole size: 5.16 mm
DNMM150408 DP150Grade: DP150 | Inscribed circle: 12.7 mm | Thickness: 4.76 mm | Nose radius: 0.8 mm | Hole size: 5.16 mm
DNMM150412Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 12.7 mm | Thickness: 4.76 mm | Nose radius: 1.2 mm | Hole size: 5.16 mm
