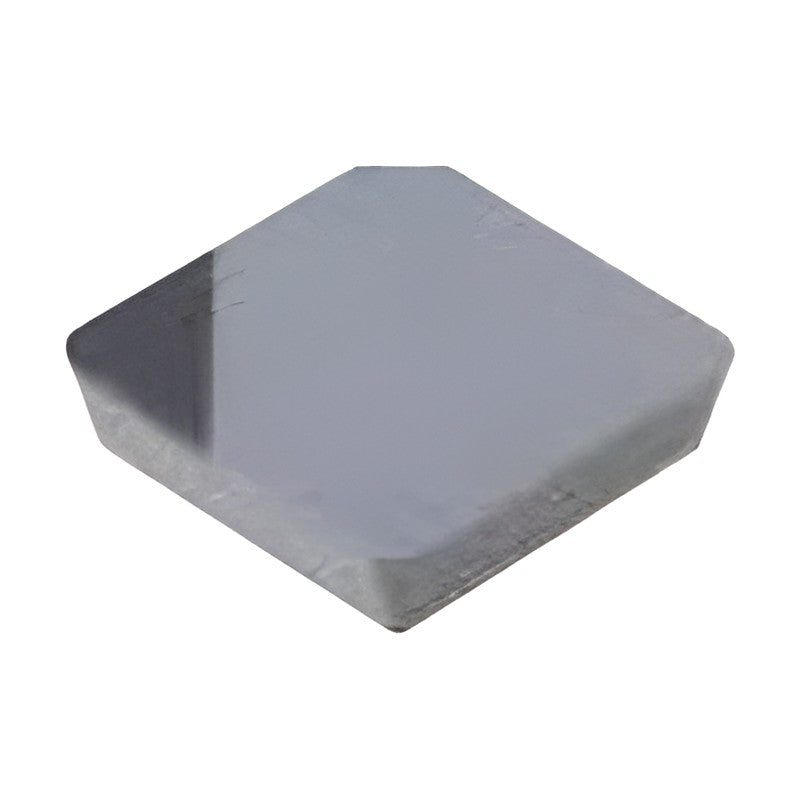

Korloy PCD Turning Insert SPGN

Korloy PCD Turning Insert SPGN

SPGN positive turning insert with brazed PCD tip for high-precision finishing of aluminum alloys and non-ferrous metals.

Key features

  • Polycrystalline diamond (PCD) cutting edge for extreme hardness and wear resistance
  • Designed for aluminum alloys and non-ferrous metals
  • High precision and excellent surface finish
  • Grades DP90 (fine grain), DP150 (medium grain) and DP200 (coarse grain) for high-Si aluminum

Specifications

Insert shape 90° Positive
Cutting edge material PCD (polycrystalline diamond)
Applicable holders CSDPN, CSKPR/L
Workpiece Aluminum alloys, non-ferrous metals
Thickness 3.18 mm
Hole size -
SPGN090304 DP150 Grade: DP150 | Inscribed circle: 9.525 mm | Thickness: 3.18 mm | Nose radius: 0.4 mm | Hole size: -
SPGN090308 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 9.525 mm | Thickness: 3.18 mm | Nose radius: 0.8 mm | Hole size: -
SPGN120304 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 12.7 mm | Thickness: 3.18 mm | Nose radius: 0.4 mm | Hole size: -
SPGN120308 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 12.7 mm | Thickness: 3.18 mm | Nose radius: 0.8 mm | Hole size: -
PCD InsertsKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Turning Insert SPGN

Brand Korloy·PCD Inserts

Available part numbers (4)

SPGN090304 DP150, SPGN090308, SPGN120304, SPGN120308

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPGN090304 DP150Grade: DP150 | Inscribed circle: 9.525 mm | Thickness: 3.18 mm | Nose radius: 0.4 mm | Hole size: -
SPGN090308Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 9.525 mm | Thickness: 3.18 mm | Nose radius: 0.8 mm | Hole size: -
SPGN120304Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 12.7 mm | Thickness: 3.18 mm | Nose radius: 0.4 mm | Hole size: -
SPGN120308Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 12.7 mm | Thickness: 3.18 mm | Nose radius: 0.8 mm | Hole size: -
