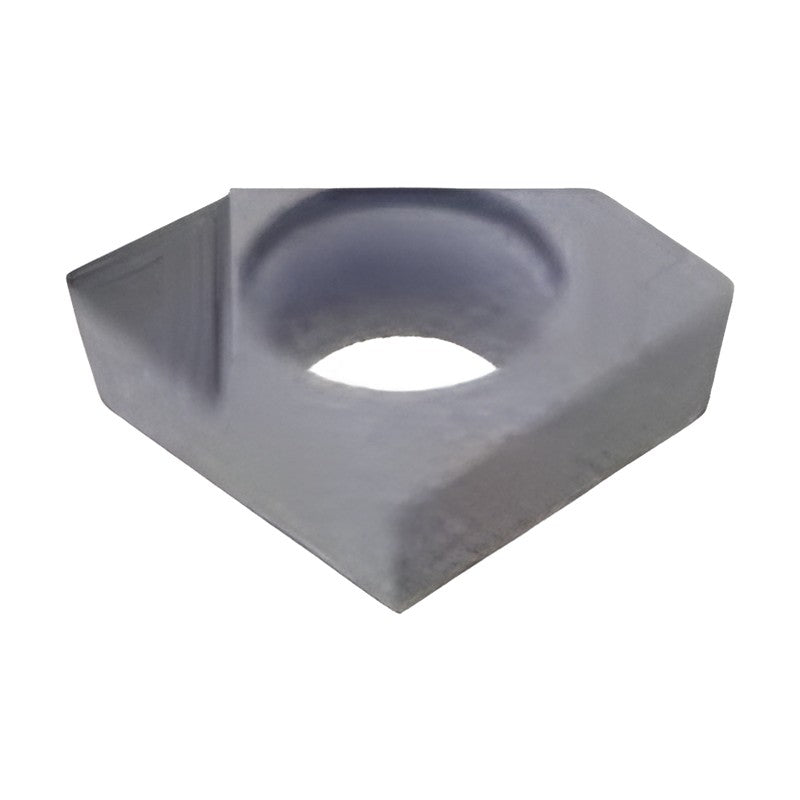

Korloy PCD Turning Insert SPGW

Korloy PCD Turning Insert SPGW

SPGW positive turning insert with brazed PCD tip for high-precision finishing of aluminum alloys and non-ferrous metals.

Key features

  • Polycrystalline diamond (PCD) cutting edge for extreme hardness and wear resistance
  • Designed for aluminum alloys and non-ferrous metals
  • High precision and excellent surface finish
  • Grades DP90 (fine grain), DP150 (medium grain) and DP200 (coarse grain) for high-Si aluminum

Specifications

Insert shape 90° Positive
Cutting edge material PCD (polycrystalline diamond)
Applicable holders SSBCR/L, SSDCN, SSKCR/L, SSSCR/L
Workpiece Aluminum alloys, non-ferrous metals
Grades DP90 / DP150 / DP200 (no stock mark printed)
Inscribed circle 9.525 mm
Thickness 3.18 mm
Hole size 4.4 mm
SPGW090302 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 9.525 mm | Thickness: 3.18 mm | Nose radius: 0.2 mm | Hole size: 4.4 mm
SPGW090304 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 9.525 mm | Thickness: 3.18 mm | Nose radius: 0.4 mm | Hole size: 4.4 mm
SPGW090308 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 9.525 mm | Thickness: 3.18 mm | Nose radius: 0.8 mm | Hole size: 4.4 mm
PCD InsertsKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Turning Insert SPGW

Brand Korloy·PCD Inserts

Available part numbers (3)

SPGW090302, SPGW090304, SPGW090308

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPGW090302Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 9.525 mm | Thickness: 3.18 mm | Nose radius: 0.2 mm | Hole size: 4.4 mm
SPGW090304Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 9.525 mm | Thickness: 3.18 mm | Nose radius: 0.4 mm | Hole size: 4.4 mm
SPGW090308Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 9.525 mm | Thickness: 3.18 mm | Nose radius: 0.8 mm | Hole size: 4.4 mm
