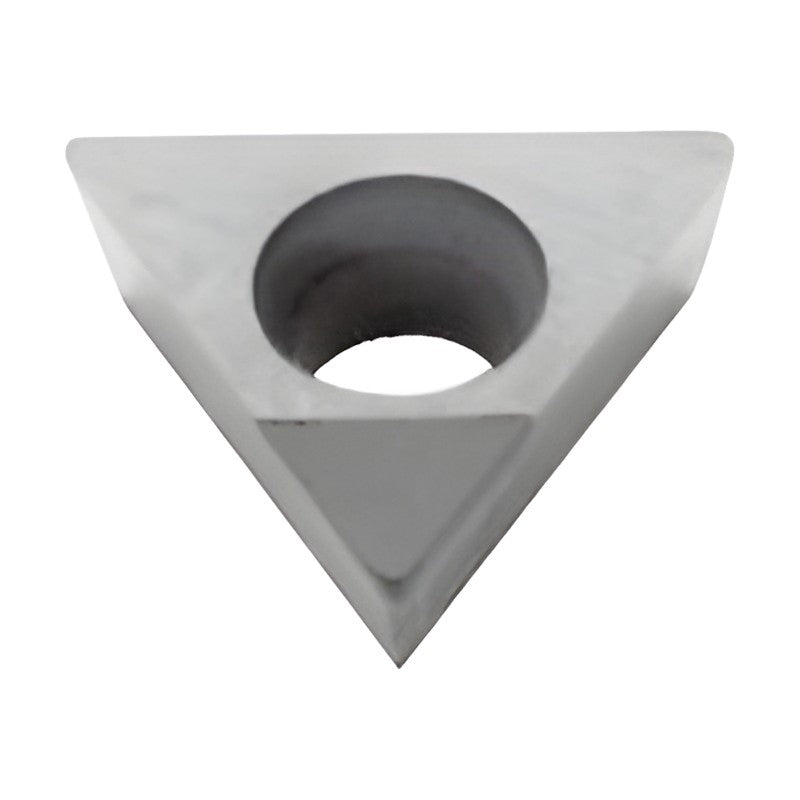

Korloy PCD Turning Insert TCMT

Korloy PCD Turning Insert TCMT

TCMT positive turning insert with brazed PCD tip for high-precision finishing of aluminum alloys and non-ferrous metals.

Key features

  • Polycrystalline diamond (PCD) cutting edge for extreme hardness and wear resistance
  • Designed for aluminum alloys and non-ferrous metals
  • High precision and excellent surface finish
  • Grades DP90 (fine grain), DP150 (medium grain) and DP200 (coarse grain) for high-Si aluminum

Specifications

Insert shape 60° Positive
Cutting edge material PCD (polycrystalline diamond)
Applicable holders STACR/L, STFCR/L, STFPR/L, STGCR/L, STTCR/L
Workpiece Aluminum alloys, non-ferrous metals
Grades DP90 / DP150 / DP200 (no stock mark printed)
Thickness 2.38 mm
TCMT090201 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 5.56 mm | Thickness: 2.38 mm | Nose radius: 0.1 mm | Hole size: 2.5 mm
TCMT090202 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 5.56 mm | Thickness: 2.38 mm | Nose radius: 0.2 mm | Hole size: 2.5 mm
TCMT090204 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 5.56 mm | Thickness: 2.38 mm | Nose radius: 0.4 mm | Hole size: 2.5 mm
TCMT110201 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 6.35 mm | Thickness: 2.38 mm | Nose radius: 0.1 mm | Hole size: 2.8 mm
TCMT110202 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 6.35 mm | Thickness: 2.38 mm | Nose radius: 0.2 mm | Hole size: 2.8 mm
TCMT110204 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 6.35 mm | Thickness: 2.38 mm | Nose radius: 0.4 mm | Hole size: 2.8 mm
PCD InsertsKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Turning Insert TCMT

Brand Korloy·PCD Inserts

Available part numbers (6)

TCMT090201, TCMT090202, TCMT090204, TCMT110201, TCMT110202, TCMT110204

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCMT090201Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 5.56 mm | Thickness: 2.38 mm | Nose radius: 0.1 mm | Hole size: 2.5 mm
TCMT090202Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 5.56 mm | Thickness: 2.38 mm | Nose radius: 0.2 mm | Hole size: 2.5 mm
TCMT090204Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 5.56 mm | Thickness: 2.38 mm | Nose radius: 0.4 mm | Hole size: 2.5 mm
TCMT110201Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 6.35 mm | Thickness: 2.38 mm | Nose radius: 0.1 mm | Hole size: 2.8 mm
TCMT110202Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 6.35 mm | Thickness: 2.38 mm | Nose radius: 0.2 mm | Hole size: 2.8 mm
TCMT110204Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 6.35 mm | Thickness: 2.38 mm | Nose radius: 0.4 mm | Hole size: 2.8 mm
