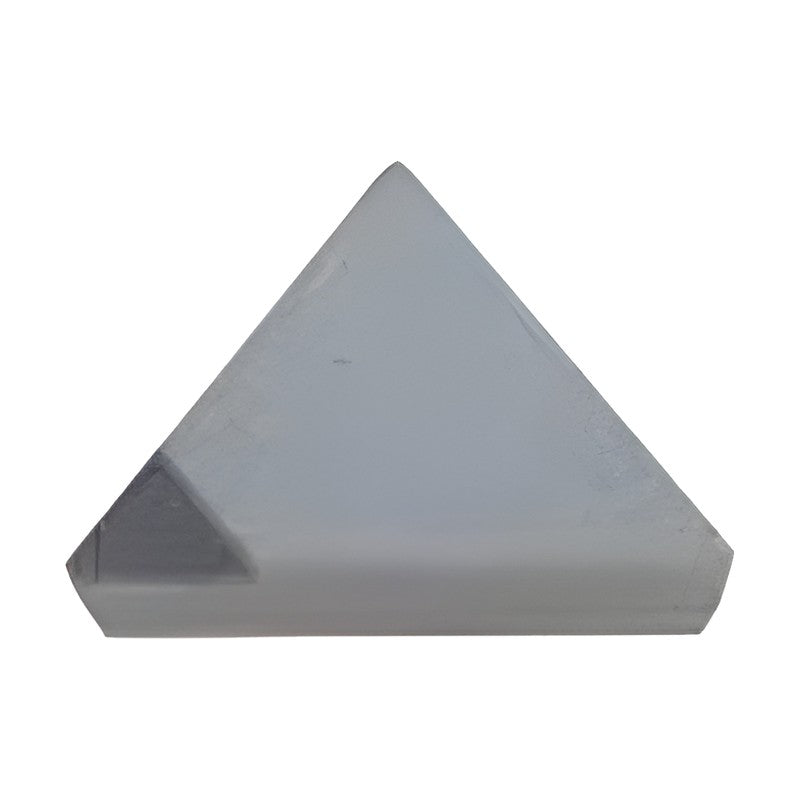

Korloy PCD Turning Insert TPGN

TPGN positive turning insert with brazed PCD tip for high-precision finishing of aluminum alloys and non-ferrous metals.

Key features

Polycrystalline diamond (PCD) cutting edge for extreme hardness and wear resistance
Designed for aluminum alloys and non-ferrous metals
High precision and excellent surface finish
Grades DP90 (fine grain), DP150 (medium grain) and DP200 (coarse grain) for high-Si aluminum

Specifications

Insert shape	60° Positive
Cutting edge material	PCD (polycrystalline diamond)
Applicable holders	CTFPR/L, CTGPR/L
Workpiece	Aluminum alloys, non-ferrous metals
Hole size	-

TPGN090204		Grades: DP90 / DP150 / DP200 (no stock mark printed) \| Inscribed circle: 5.56 mm \| Thickness: 2.38 mm \| Nose radius: 0.4 mm \| Hole size: -
TPGN090208		Grades: DP90 / DP150 / DP200 (no stock mark printed) \| Inscribed circle: 5.56 mm \| Thickness: 2.38 mm \| Nose radius: 0.8 mm \| Hole size: -
TPGN110302		Grades: DP90 / DP150 / DP200 (no stock mark printed) \| Inscribed circle: 6.35 mm \| Thickness: 3.18 mm \| Nose radius: 0.2 mm \| Hole size: -
TPGN110304 DP150		Grade: DP150 \| Inscribed circle: 6.35 mm \| Thickness: 3.18 mm \| Nose radius: 0.4 mm \| Hole size: -
TPGN110308 DP150		Grade: DP150 \| Inscribed circle: 6.35 mm \| Thickness: 3.18 mm \| Nose radius: 0.8 mm \| Hole size: -
TPGN160302		Grades: DP90 / DP150 / DP200 (no stock mark printed) \| Inscribed circle: 9.525 mm \| Thickness: 3.18 mm \| Nose radius: 0.2 mm \| Hole size: -
TPGN160304		Grades: DP90 / DP150 / DP200 (no stock mark printed) \| Inscribed circle: 9.525 mm \| Thickness: 3.18 mm \| Nose radius: 0.4 mm \| Hole size: -
TPGN160308		Grades: DP90 / DP150 / DP200 (no stock mark printed) \| Inscribed circle: 9.525 mm \| Thickness: 3.18 mm \| Nose radius: 0.8 mm \| Hole size: -

PCD InsertsKorloy

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Turning Insert TPGN

Brand Korloy·PCD Inserts

Available part numbers (8)

TPGN090204, TPGN090208, TPGN110302, TPGN110304 DP150, TPGN110308 DP150, TPGN160302, TPGN160304, TPGN160308

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	TPGN090204	Grades: DP90 / DP150 / DP200 (no stock mark printed) \| Inscribed circle: 5.56 mm \| Thickness: 2.38 mm \| Nose radius: 0.4 mm \| Hole size: -
	TPGN090208	Grades: DP90 / DP150 / DP200 (no stock mark printed) \| Inscribed circle: 5.56 mm \| Thickness: 2.38 mm \| Nose radius: 0.8 mm \| Hole size: -
	TPGN110302	Grades: DP90 / DP150 / DP200 (no stock mark printed) \| Inscribed circle: 6.35 mm \| Thickness: 3.18 mm \| Nose radius: 0.2 mm \| Hole size: -
	TPGN110304 DP150	Grade: DP150 \| Inscribed circle: 6.35 mm \| Thickness: 3.18 mm \| Nose radius: 0.4 mm \| Hole size: -
	TPGN110308 DP150	Grade: DP150 \| Inscribed circle: 6.35 mm \| Thickness: 3.18 mm \| Nose radius: 0.8 mm \| Hole size: -
	TPGN160302	Grades: DP90 / DP150 / DP200 (no stock mark printed) \| Inscribed circle: 9.525 mm \| Thickness: 3.18 mm \| Nose radius: 0.2 mm \| Hole size: -
	TPGN160304	Grades: DP90 / DP150 / DP200 (no stock mark printed) \| Inscribed circle: 9.525 mm \| Thickness: 3.18 mm \| Nose radius: 0.4 mm \| Hole size: -
	TPGN160308	Grades: DP90 / DP150 / DP200 (no stock mark printed) \| Inscribed circle: 9.525 mm \| Thickness: 3.18 mm \| Nose radius: 0.8 mm \| Hole size: -
