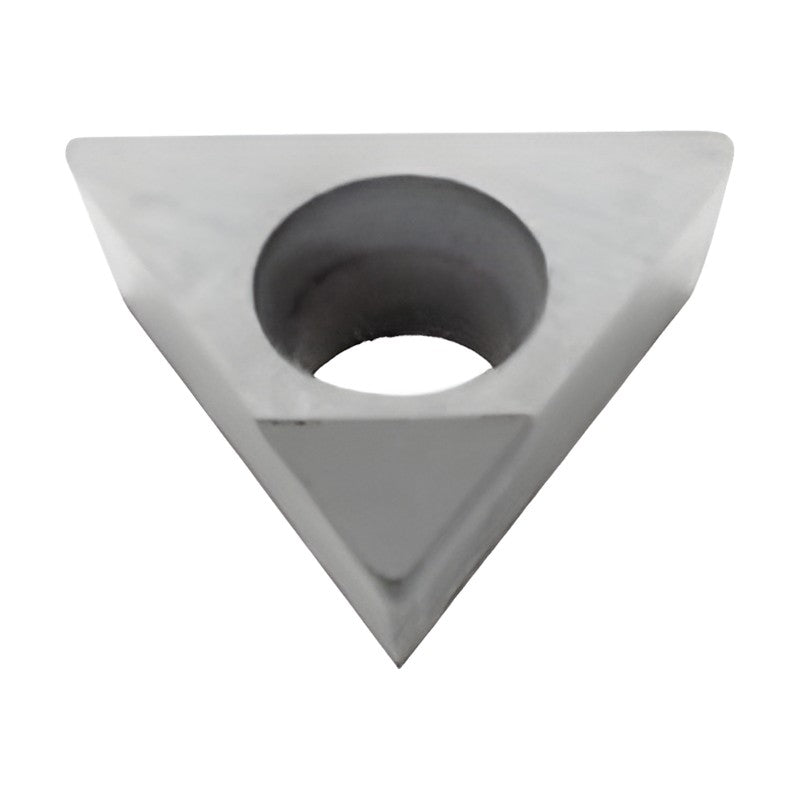

Korloy PCD Turning Insert TPGT

Korloy PCD Turning Insert TPGT

TPGT positive turning insert with brazed PCD tip for high-precision finishing of aluminum alloys and non-ferrous metals.

Key features

  • Polycrystalline diamond (PCD) cutting edge for extreme hardness and wear resistance
  • Designed for aluminum alloys and non-ferrous metals
  • High precision and excellent surface finish
  • Grades DP90 (fine grain), DP150 (medium grain) and DP200 (coarse grain) for high-Si aluminum

Specifications

Insert shape 60° Positive
Cutting edge material PCD (polycrystalline diamond)
Applicable holders STFPR/L, STUPR/L
Workpiece Aluminum alloys, non-ferrous metals
Grades DP90 / DP150 / DP200 (no stock mark printed)
Inscribed circle 6.35 mm
Thickness 3.18 mm
Hole size 3.4 mm
TPGT110302 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 6.35 mm | Thickness: 3.18 mm | Nose radius: 0.2 mm | Hole size: 3.4 mm
TPGT110304 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 6.35 mm | Thickness: 3.18 mm | Nose radius: 0.4 mm | Hole size: 3.4 mm
PCD InsertsKorloy
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Turning Insert TPGT

Brand Korloy·PCD Inserts

Available part numbers (2)

TPGT110302, TPGT110304

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TPGT110302Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 6.35 mm | Thickness: 3.18 mm | Nose radius: 0.2 mm | Hole size: 3.4 mm
TPGT110304Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 6.35 mm | Thickness: 3.18 mm | Nose radius: 0.4 mm | Hole size: 3.4 mm
