Korloy PCD Turning Insert TPGW

Korloy PCD Turning Insert TPGW

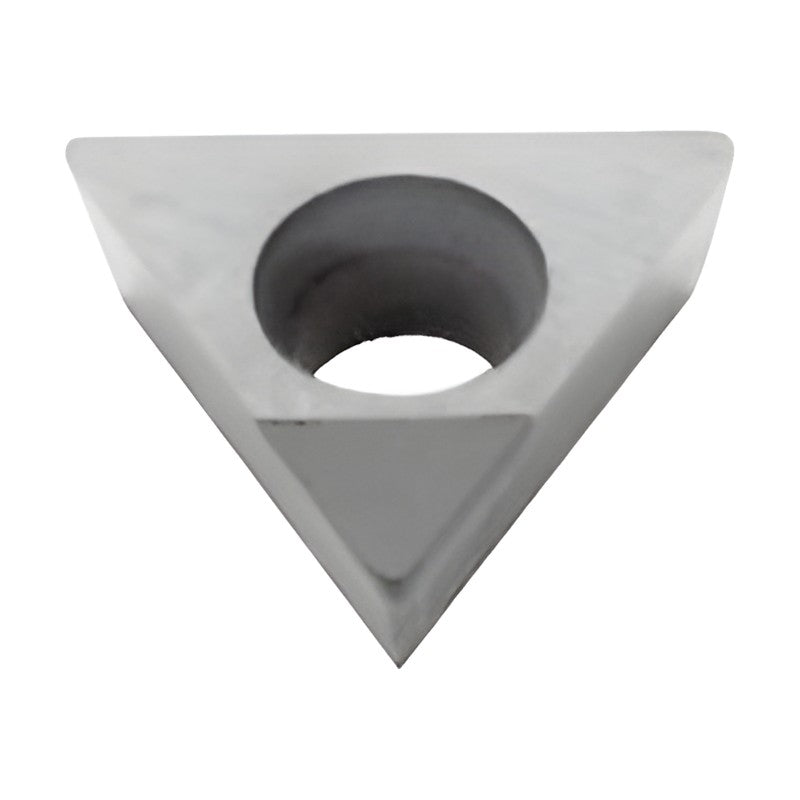

TPGW positive turning insert with brazed PCD tip for high-precision finishing of aluminum alloys and non-ferrous metals.

Key features

  • Polycrystalline diamond (PCD) cutting edge for extreme hardness and wear resistance
  • Designed for aluminum alloys and non-ferrous metals
  • High precision and excellent surface finish
  • Grades DP90 (fine grain), DP150 (medium grain) and DP200 (coarse grain) for high-Si aluminum

Specifications

Insert shape 60° Positive
Cutting edge material PCD (polycrystalline diamond)
Applicable holders STACR/L, STFCR/L, STFPR/L, STGCR/L, STTCR/L
Workpiece Aluminum alloys, non-ferrous metals
TPGW080202 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 4.76 mm | Thickness: 2.38 mm | Nose radius: 0.2 mm | Hole size: 2.4 mm
TPGW080204 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 4.76 mm | Thickness: 2.38 mm | Nose radius: 0.4 mm | Hole size: 2.4 mm
TPGW090204 DP90 Grade: DP90 | Inscribed circle: 6.35 mm | Thickness: 3.18 mm | Nose radius: 0.2 mm | Hole size: 3.4 mm
TPGW090208 DP90 Grade: DP90 | Inscribed circle: 6.35 mm | Thickness: 3.18 mm | Nose radius: 0.4 mm | Hole size: 3.4 mm
TPGW110302 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 6.35 mm | Thickness: 3.18 mm | Nose radius: 0.8 mm | Hole size: 3.4 mm
TPGW110304 DP150 Grade: DP150 | Inscribed circle: 9.525 mm | Thickness: 4.76 mm | Nose radius: 0.4 mm | Hole size: 3.81 mm
TPGW110308 DP150 Grade: DP150 | Inscribed circle: 9.525 mm | Thickness: 4.76 mm | Nose radius: 0.8 mm | Hole size: 3.81 mm
TPGW160404 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: - | Thickness: - | Nose radius: - | Hole size: -
TPGW160408 Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: - | Thickness: - | Nose radius: - | Hole size: -
PCD InsertsKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Turning Insert TPGW

Brand Korloy·PCD Inserts

Available part numbers (9)

TPGW080202, TPGW080204, TPGW090204 DP90, TPGW090208 DP90, TPGW110302, TPGW110304 DP150, TPGW110308 DP150, TPGW160404, TPGW160408

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TPGW080202Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 4.76 mm | Thickness: 2.38 mm | Nose radius: 0.2 mm | Hole size: 2.4 mm
TPGW080204Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 4.76 mm | Thickness: 2.38 mm | Nose radius: 0.4 mm | Hole size: 2.4 mm
TPGW090204 DP90Grade: DP90 | Inscribed circle: 6.35 mm | Thickness: 3.18 mm | Nose radius: 0.2 mm | Hole size: 3.4 mm
TPGW090208 DP90Grade: DP90 | Inscribed circle: 6.35 mm | Thickness: 3.18 mm | Nose radius: 0.4 mm | Hole size: 3.4 mm
TPGW110302Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: 6.35 mm | Thickness: 3.18 mm | Nose radius: 0.8 mm | Hole size: 3.4 mm
TPGW110304 DP150Grade: DP150 | Inscribed circle: 9.525 mm | Thickness: 4.76 mm | Nose radius: 0.4 mm | Hole size: 3.81 mm
TPGW110308 DP150Grade: DP150 | Inscribed circle: 9.525 mm | Thickness: 4.76 mm | Nose radius: 0.8 mm | Hole size: 3.81 mm
TPGW160404Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: - | Thickness: - | Nose radius: - | Hole size: -
TPGW160408Grades: DP90 / DP150 / DP200 (no stock mark printed) | Inscribed circle: - | Thickness: - | Nose radius: - | Hole size: -
