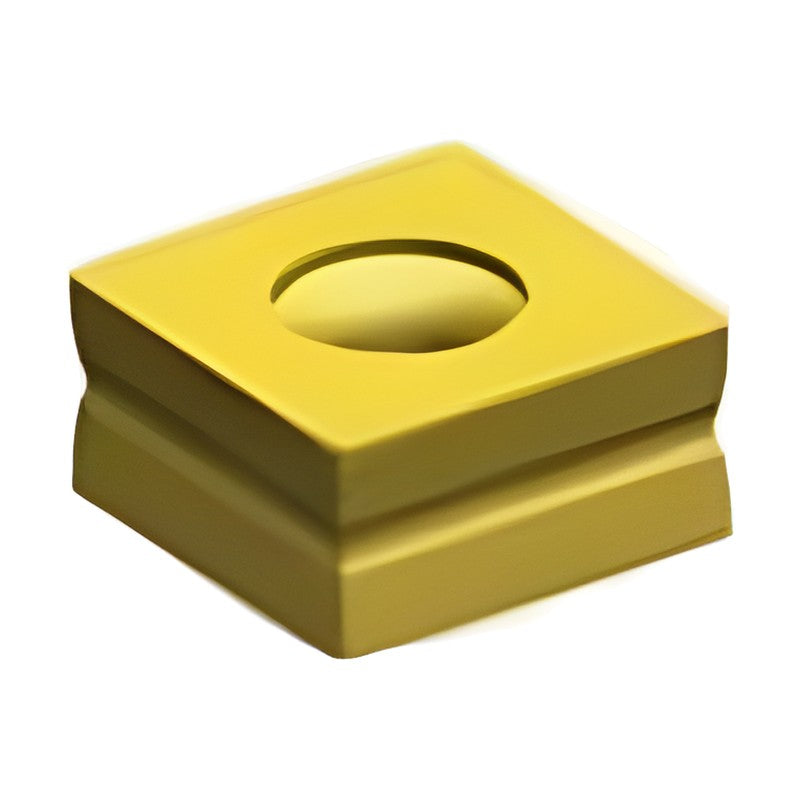

Korloy Pipe Edge Milling Insert KES

Square double-sided KES milling insert for edge milling of steel plate in pipe manufacturing lines.

Key features

Designed for edge milling of plate before pipe forming (JCO, ERW, roll-bending, spiral lines)
Tough grades resist thermal cracking and fracture
Recommended vc 70 - 150 m/min (under API X60)
Recommended fz 0.15 - 0.20 mm/t

Specifications

Application	Pipe plate edge milling
Recommended grades	NC5330 (P25-P30) / NC5340 (P35-P40, main) / NC5350 (P45-P50)

KES1507-MXR

l: 15.875 mm | d: 15.875 mm | t: 7.94 mm | d1: 5.8 mm | r: 0.6 mm

Milling InsertsKorloy

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Pipe Edge Milling Insert KES

Brand Korloy·Milling Inserts

Available part numbers (1)

KES1507-MXR

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
