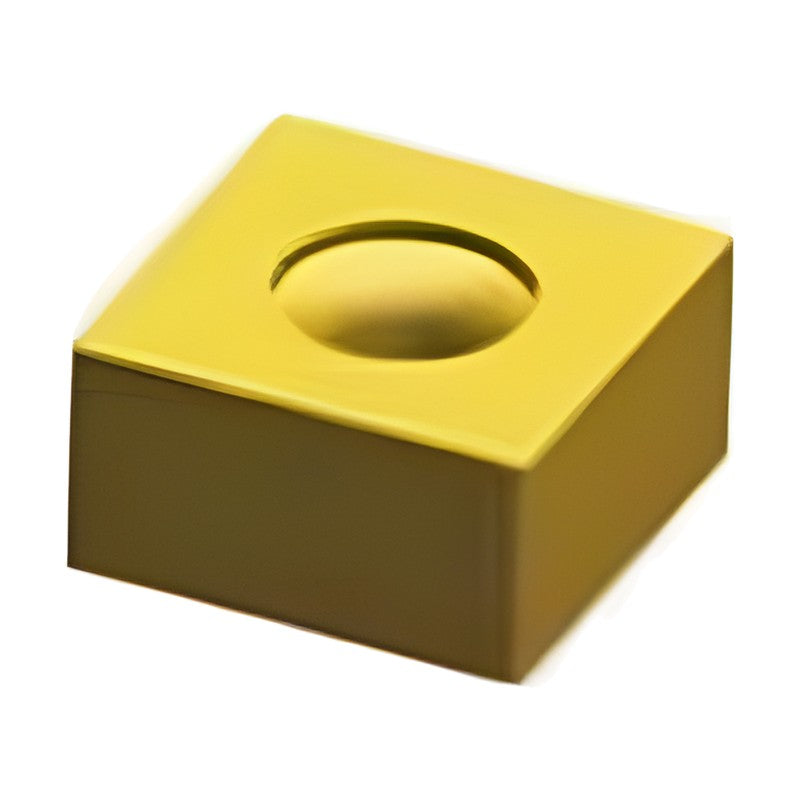

Korloy Pipe Edge Milling Insert SNHQ

Korloy Pipe Edge Milling Insert SNHQ

Square SNHQ milling insert for edge milling of steel plate in pipe manufacturing lines.

Key features

  • Designed for edge milling of plate before pipe forming (JCO, ERW, roll-bending, spiral lines)
  • Tough grades resist thermal cracking and fracture
  • Recommended vc 70 - 150 m/min (under API X60)
  • Recommended fz 0.15 - 0.20 mm/t

Specifications

Application Pipe plate edge milling
Recommended grades NC5330 (P25-P30) / NC5340 (P35-P40, main) / NC5350 (P45-P50)
t 7.94 mm
r 0.4 mm
SNHQ150704S l: 15.875 mm | d: 15.875 mm | t: 7.94 mm | d1: 5.8 mm | r: 0.4 mm
SNHQ190704S l: 19.05 mm | d: 19.05 mm | t: 7.94 mm | d1: 6.4 mm | r: 0.4 mm
Milling InsertsKorloy
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Pipe Edge Milling Insert SNHQ

Brand Korloy·Milling Inserts

Available part numbers (2)

SNHQ150704S, SNHQ190704S

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNHQ150704Sl: 15.875 mm | d: 15.875 mm | t: 7.94 mm | d1: 5.8 mm | r: 0.4 mm
SNHQ190704Sl: 19.05 mm | d: 19.05 mm | t: 7.94 mm | d1: 6.4 mm | r: 0.4 mm
