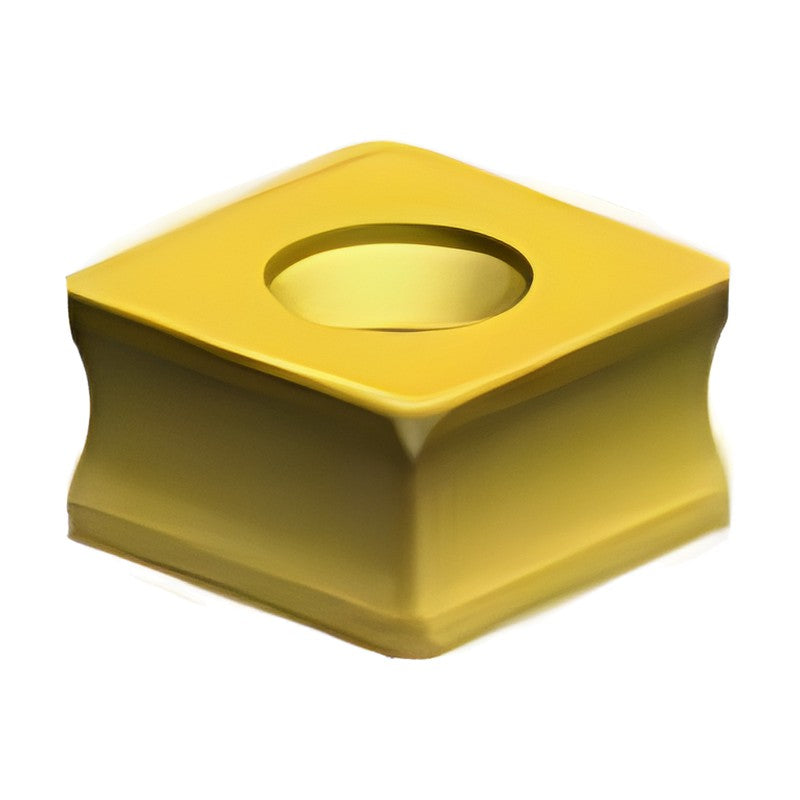

Korloy Pipe Edge Milling Insert SOCX

SOCX milling insert for edge milling of steel plate in pipe manufacturing lines.

Key features

Designed for edge milling of plate before pipe forming (JCO, ERW, roll-bending, spiral lines)
Tough grades resist thermal cracking and fracture
Recommended vc 70 - 150 m/min (under API X60)
Recommended fz 0.15 - 0.20 mm/t

Specifications

Application	Pipe plate edge milling
Recommended grades	NC5330 (P25-P30) / NC5340 (P35-P40, main) / NC5350 (P45-P50)

SOCX1810ZZ

l: 18.3 mm | d: 18.3 mm | t: 10 mm | d1: 6.9 mm | r: -

Milling InsertsKorloy

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Pipe Edge Milling Insert SOCX

Brand Korloy·Milling Inserts

Available part numbers (1)

SOCX1810ZZ

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
