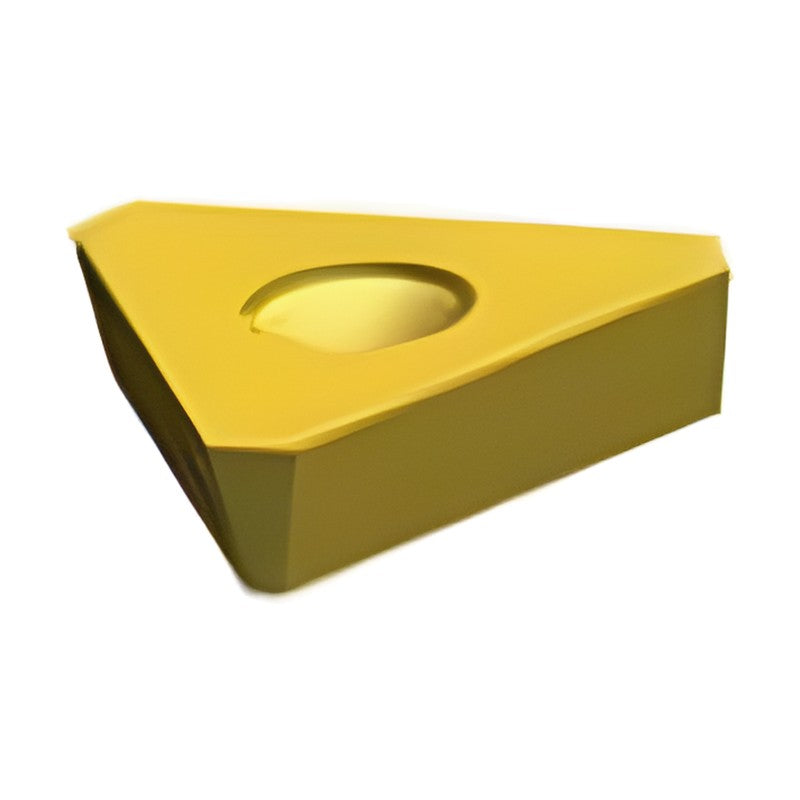

Korloy Pipe Edge Milling Insert TPEW / TPGW

Triangular 11° positive TPEW/TPGW milling insert for edge milling of steel plate in pipe manufacturing lines.

Key features

Designed for edge milling of plate before pipe forming (JCO, ERW, roll-bending, spiral lines)
Tough grades resist thermal cracking and fracture
Recommended vc 70 - 150 m/min (under API X60)
Recommended fz 0.15 - 0.20 mm/t

Specifications

Application	Pipe plate edge milling
Recommended grades	NC5330 (P25-P30) / NC5340 (P35-P40, main) / NC5350 (P45-P50)
r	-

TPEW3106ZS		l: 22.5 mm \| d: 18 mm \| t: 6.35 mm \| d1: 7 mm \| r: -
TPEW33ZZSN-VA		l: 24 mm \| d: 19.05 mm \| t: 7 mm \| d1: 6.7 mm \| r: -
TPGW3306Z-CX		l: 24 mm \| d: 19.05 mm \| t: 7 mm \| d1: 6.7 mm \| r: -

Milling InsertsKorloy

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Pipe Edge Milling Insert TPEW / TPGW

Brand Korloy·Milling Inserts

Available part numbers (3)

TPEW3106ZS, TPEW33ZZSN-VA, TPGW3306Z-CX

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	TPEW3106ZS	l: 22.5 mm \| d: 18 mm \| t: 6.35 mm \| d1: 7 mm \| r: -
	TPEW33ZZSN-VA	l: 24 mm \| d: 19.05 mm \| t: 7 mm \| d1: 6.7 mm \| r: -
	TPGW3306Z-CX	l: 24 mm \| d: 19.05 mm \| t: 7 mm \| d1: 6.7 mm \| r: -

Need a different model, or a part not listed here? Send us your parts list →
