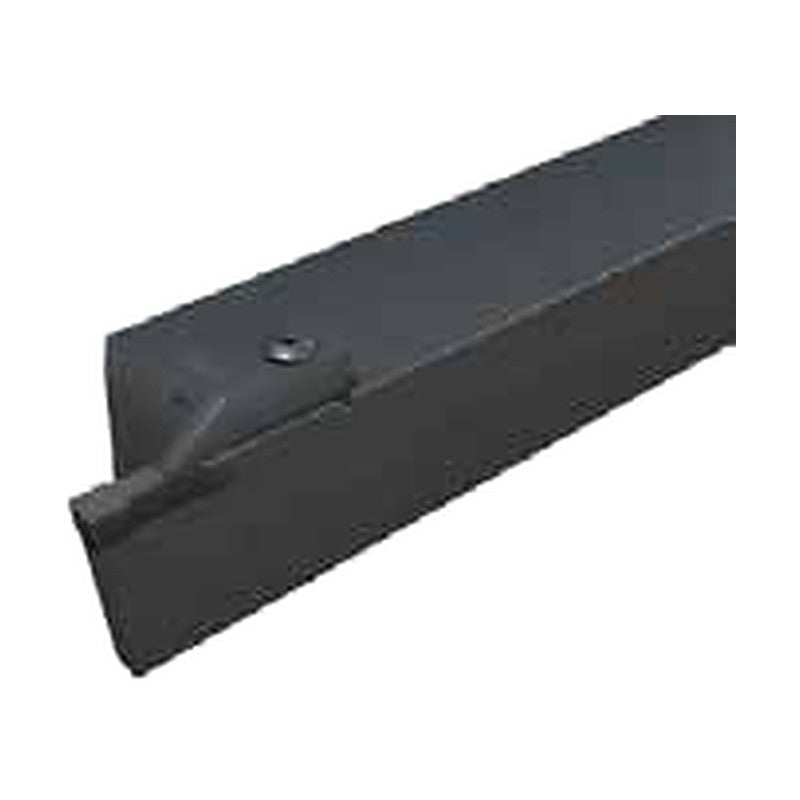

Korloy Roll Turning Holder CSBF

Korloy Roll Turning Holder CSBF

External holder for SYBF ceramic roll-turning inserts.

Key features

  • Shank sizes: 5040
  • Fits inserts: SYBF3228, SYBF4828, SYBF5528, SYBF6428, SYBF7928, SYBF9528

Specifications

Holder type External toolholder
CSBF5040P3228R a (mm): 3.18 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SYBF3228 | Clamp & clamp screw: SGD3 / BM518 | Wrench: LW3
CSBF5040P3228L a (mm): 3.18 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SYBF3228 | Clamp & clamp screw: SGD3 / BM518 | Wrench: LW3
CSBF5040P4828R a (mm): 4.78 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SYBF4828 | Clamp & clamp screw: SGD4 / BM518 | Wrench: LW4
CSBF5040P4828L a (mm): 4.78 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SYBF4828 | Clamp & clamp screw: SGD4 / BM518 | Wrench: LW4
CSBF5040P5528R a (mm): 5.54 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SYBF5528 | Clamp & clamp screw: SGD4 / BM518 | Wrench: LW4
CSBF5040P5528L a (mm): 5.54 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SYBF5528 | Clamp & clamp screw: SGD4 / BM518 | Wrench: LW4
CSBF5040P6428R a (mm): 6.35 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SYBF6428 | Clamp & clamp screw: SGD6 / BM618 | Wrench: LW4
CSBF5040P6428L a (mm): 6.35 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SYBF6428 | Clamp & clamp screw: SGD6 / BM618 | Wrench: LW4
CSBF5040P7928R a (mm): 7.93 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SYBF7928 | Clamp & clamp screw: SGD6 / BM618 | Wrench: LW4
CSBF5040P7928L a (mm): 7.93 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SYBF7928 | Clamp & clamp screw: SGD6 / BM618 | Wrench: LW4
CSBF5040P9528R a (mm): 9.52 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SYBF9528 | Clamp & clamp screw: SGD9 / BM1018 | Wrench: LW5
CSBF5040P9528L a (mm): 9.52 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SYBF9528 | Clamp & clamp screw: SGD9 / BM1018 | Wrench: LW5
Turning HoldersKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Roll Turning Holder CSBF

Brand Korloy·Turning Holders

Available part numbers (12)

CSBF5040P3228R, CSBF5040P3228L, CSBF5040P4828R, CSBF5040P4828L, CSBF5040P5528R, CSBF5040P5528L, CSBF5040P6428R, CSBF5040P6428L, CSBF5040P7928R, CSBF5040P7928L + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CSBF5040P3228Ra (mm): 3.18 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SYBF3228 | Clamp & clamp screw: SGD3 / BM518 | Wrench: LW3
CSBF5040P3228La (mm): 3.18 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SYBF3228 | Clamp & clamp screw: SGD3 / BM518 | Wrench: LW3
CSBF5040P4828Ra (mm): 4.78 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SYBF4828 | Clamp & clamp screw: SGD4 / BM518 | Wrench: LW4
CSBF5040P4828La (mm): 4.78 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SYBF4828 | Clamp & clamp screw: SGD4 / BM518 | Wrench: LW4
CSBF5040P5528Ra (mm): 5.54 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SYBF5528 | Clamp & clamp screw: SGD4 / BM518 | Wrench: LW4
CSBF5040P5528La (mm): 5.54 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SYBF5528 | Clamp & clamp screw: SGD4 / BM518 | Wrench: LW4
CSBF5040P6428Ra (mm): 6.35 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SYBF6428 | Clamp & clamp screw: SGD6 / BM618 | Wrench: LW4
CSBF5040P6428La (mm): 6.35 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SYBF6428 | Clamp & clamp screw: SGD6 / BM618 | Wrench: LW4
CSBF5040P7928Ra (mm): 7.93 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SYBF7928 | Clamp & clamp screw: SGD6 / BM618 | Wrench: LW4
CSBF5040P7928La (mm): 7.93 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SYBF7928 | Clamp & clamp screw: SGD6 / BM618 | Wrench: LW4
CSBF5040P9528Ra (mm): 9.52 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SYBF9528 | Clamp & clamp screw: SGD9 / BM1018 | Wrench: LW5
CSBF5040P9528La (mm): 9.52 | H (mm): 50 | B (mm): 40 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SYBF9528 | Clamp & clamp screw: SGD9 / BM1018 | Wrench: LW5
