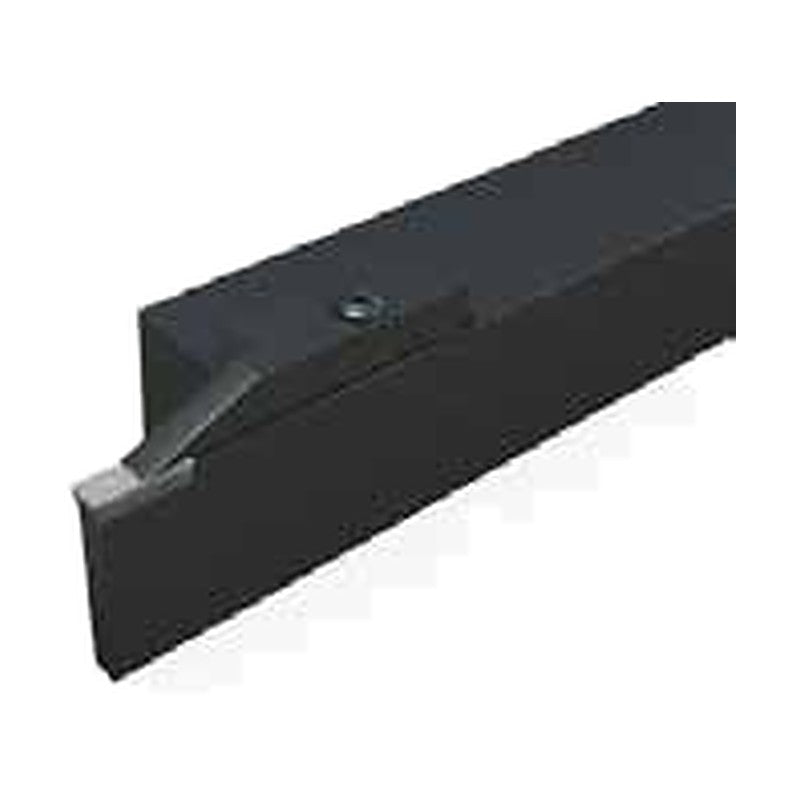

Korloy Roll Turning Holder CSSF

Korloy Roll Turning Holder CSSF

External holder for SSF ceramic roll-turning inserts.

Key features

  • Shank sizes: 3225
  • Fits inserts: SSF1015, SSF4012, SSF5012, SSF6015, SSF7015, SSF8015

Specifications

Holder type External toolholder
CSSF3225P4012R a (mm): 4.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SSF4012 | Clamp & clamp screw: SGL4 / BM518 | Wrench: LW3
CSSF3225P4012L a (mm): 4.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SSF4012 | Clamp & clamp screw: SGL4 / BM518 | Wrench: LW3
CSSF3225P5012R a (mm): 5.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SSF5012 | Clamp & clamp screw: SGL5 / BM518 | Wrench: LW4
CSSF3225P5012L a (mm): 5.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SSF5012 | Clamp & clamp screw: SGL5 / BM518 | Wrench: LW4
CSSF3225P6015R a (mm): 6.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SSF6015 | Clamp & clamp screw: SGL5 / BM518 | Wrench: LW4
CSSF3225P6015L a (mm): 6.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SSF6015 | Clamp & clamp screw: SGL5 / BM518 | Wrench: LW4
CSSF3225P7015R a (mm): 7.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SSF7015 | Clamp & clamp screw: SGL7 / BM618 | Wrench: LW5
CSSF3225P7015L a (mm): 7.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SSF7015 | Clamp & clamp screw: SGL7 / BM618 | Wrench: LW5
CSSF3225P8015R a (mm): 8.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SSF8015 | Clamp & clamp screw: SGL8 / BM618 | Wrench: LW5
CSSF3225P8015L a (mm): 8.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SSF8015 | Clamp & clamp screw: SGL8 / BM618 | Wrench: LW5
CSSF3225P1015R a (mm): 10.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SSF1015 | Clamp & clamp screw: SGL8 / BM618 | Wrench: LW5
CSSF3225P1015L a (mm): 10.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SSF1015 | Clamp & clamp screw: SGL8 / BM618 | Wrench: LW5
Turning HoldersKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Roll Turning Holder CSSF

Brand Korloy·Turning Holders

Available part numbers (12)

CSSF3225P4012R, CSSF3225P4012L, CSSF3225P5012R, CSSF3225P5012L, CSSF3225P6015R, CSSF3225P6015L, CSSF3225P7015R, CSSF3225P7015L, CSSF3225P8015R, CSSF3225P8015L + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CSSF3225P4012Ra (mm): 4.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SSF4012 | Clamp & clamp screw: SGL4 / BM518 | Wrench: LW3
CSSF3225P4012La (mm): 4.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SSF4012 | Clamp & clamp screw: SGL4 / BM518 | Wrench: LW3
CSSF3225P5012Ra (mm): 5.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SSF5012 | Clamp & clamp screw: SGL5 / BM518 | Wrench: LW4
CSSF3225P5012La (mm): 5.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SSF5012 | Clamp & clamp screw: SGL5 / BM518 | Wrench: LW4
CSSF3225P6015Ra (mm): 6.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SSF6015 | Clamp & clamp screw: SGL5 / BM518 | Wrench: LW4
CSSF3225P6015La (mm): 6.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SSF6015 | Clamp & clamp screw: SGL5 / BM518 | Wrench: LW4
CSSF3225P7015Ra (mm): 7.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SSF7015 | Clamp & clamp screw: SGL7 / BM618 | Wrench: LW5
CSSF3225P7015La (mm): 7.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SSF7015 | Clamp & clamp screw: SGL7 / BM618 | Wrench: LW5
CSSF3225P8015Ra (mm): 8.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SSF8015 | Clamp & clamp screw: SGL8 / BM618 | Wrench: LW5
CSSF3225P8015La (mm): 8.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SSF8015 | Clamp & clamp screw: SGL8 / BM618 | Wrench: LW5
CSSF3225P1015Ra (mm): 10.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Right | Insert: SSF1015 | Clamp & clamp screw: SGL8 / BM618 | Wrench: LW5
CSSF3225P1015La (mm): 10.0 | H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 19 | Hand: Left | Insert: SSF1015 | Clamp & clamp screw: SGL8 / BM618 | Wrench: LW5
