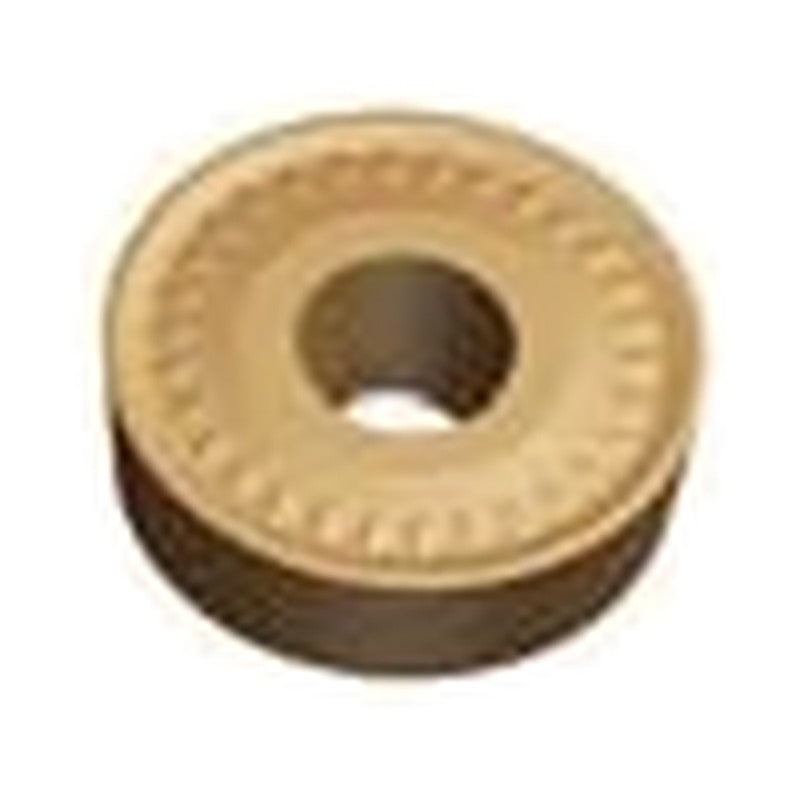

Korloy Round Turning Insert RCMH

Korloy Round Turning Insert RCMH

Round insert for heavy duty external and profile turning of railway wheels.

Key features

  • Heavy duty profile turning of railway wheels
  • HG and HV chip breakers

Specifications

Application Railway components
Coating Coated
RCMH2507M0-HG NC6315 IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.5 | Feed fn (mm/rev): 0.45 ~ 1.1 | Depth of cut ap (mm): 3.5 ~ 11.5 | Grade: NC6315 | Stock: Not marked
RCMH2507M0-HG NC3215P IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.5 | Feed fn (mm/rev): 0.45 ~ 1.1 | Depth of cut ap (mm): 3.5 ~ 11.5 | Grade: NC3215P | Stock: Not marked
RCMH2507M0-HG NC3225P IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.5 | Feed fn (mm/rev): 0.45 ~ 1.1 | Depth of cut ap (mm): 3.5 ~ 11.5 | Grade: NC3225P | Stock: Not marked
RCMH3209M0-HG NC6315 IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 10.3 | Feed fn (mm/rev): 0.55 ~ 1.4 | Depth of cut ap (mm): 4.5 ~ 14.0 | Grade: NC6315 | Stock: Not marked
RCMH3209M0-HG NC3215P IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 10.3 | Feed fn (mm/rev): 0.55 ~ 1.4 | Depth of cut ap (mm): 4.5 ~ 14.0 | Grade: NC3215P | Stock: Not marked
RCMH3209M0-HG NC3225P IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 10.3 | Feed fn (mm/rev): 0.55 ~ 1.4 | Depth of cut ap (mm): 4.5 ~ 14.0 | Grade: NC3225P | Stock: Not marked
RCMH2507M0-HV NC6315 IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.5 | Feed fn (mm/rev): 0.55 ~ 1.2 | Depth of cut ap (mm): 4.5 ~ 12.5 | Grade: NC6315 | Stock: Not marked
RCMH2507M0-HV NC3215P IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.5 | Feed fn (mm/rev): 0.55 ~ 1.2 | Depth of cut ap (mm): 4.5 ~ 12.5 | Grade: NC3215P | Stock: Not marked
RCMH2507M0-HV NC3225P IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.5 | Feed fn (mm/rev): 0.55 ~ 1.2 | Depth of cut ap (mm): 4.5 ~ 12.5 | Grade: NC3225P | Stock: Not marked
RCMH3209M0-HV NC6315 IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 10.3 | Feed fn (mm/rev): 0.65 ~ 1.5 | Depth of cut ap (mm): 5.5 ~ 15.5 | Grade: NC6315 | Stock: Not marked
RCMH3209M0-HV NC3215P IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 10.3 | Feed fn (mm/rev): 0.65 ~ 1.5 | Depth of cut ap (mm): 5.5 ~ 15.5 | Grade: NC3215P | Stock: Not marked
RCMH3209M0-HV NC3225P IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 10.3 | Feed fn (mm/rev): 0.65 ~ 1.5 | Depth of cut ap (mm): 5.5 ~ 15.5 | Grade: NC3225P | Stock: Not marked
Turning InsertsKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Round Turning Insert RCMH

Brand Korloy·Turning Inserts

Available part numbers (12)

RCMH2507M0-HG NC6315, RCMH2507M0-HG NC3215P, RCMH2507M0-HG NC3225P, RCMH3209M0-HG NC6315, RCMH3209M0-HG NC3215P, RCMH3209M0-HG NC3225P, RCMH2507M0-HV NC6315, RCMH2507M0-HV NC3215P, RCMH2507M0-HV NC3225P, RCMH3209M0-HV NC6315 + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RCMH2507M0-HG NC6315IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.5 | Feed fn (mm/rev): 0.45 ~ 1.1 | Depth of cut ap (mm): 3.5 ~ 11.5 | Grade: NC6315 | Stock: Not marked
RCMH2507M0-HG NC3215PIC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.5 | Feed fn (mm/rev): 0.45 ~ 1.1 | Depth of cut ap (mm): 3.5 ~ 11.5 | Grade: NC3215P | Stock: Not marked
RCMH2507M0-HG NC3225PIC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.5 | Feed fn (mm/rev): 0.45 ~ 1.1 | Depth of cut ap (mm): 3.5 ~ 11.5 | Grade: NC3225P | Stock: Not marked
RCMH3209M0-HG NC6315IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 10.3 | Feed fn (mm/rev): 0.55 ~ 1.4 | Depth of cut ap (mm): 4.5 ~ 14.0 | Grade: NC6315 | Stock: Not marked
RCMH3209M0-HG NC3215PIC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 10.3 | Feed fn (mm/rev): 0.55 ~ 1.4 | Depth of cut ap (mm): 4.5 ~ 14.0 | Grade: NC3215P | Stock: Not marked
RCMH3209M0-HG NC3225PIC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 10.3 | Feed fn (mm/rev): 0.55 ~ 1.4 | Depth of cut ap (mm): 4.5 ~ 14.0 | Grade: NC3225P | Stock: Not marked
RCMH2507M0-HV NC6315IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.5 | Feed fn (mm/rev): 0.55 ~ 1.2 | Depth of cut ap (mm): 4.5 ~ 12.5 | Grade: NC6315 | Stock: Not marked
RCMH2507M0-HV NC3215PIC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.5 | Feed fn (mm/rev): 0.55 ~ 1.2 | Depth of cut ap (mm): 4.5 ~ 12.5 | Grade: NC3215P | Stock: Not marked
RCMH2507M0-HV NC3225PIC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.5 | Feed fn (mm/rev): 0.55 ~ 1.2 | Depth of cut ap (mm): 4.5 ~ 12.5 | Grade: NC3225P | Stock: Not marked
RCMH3209M0-HV NC6315IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 10.3 | Feed fn (mm/rev): 0.65 ~ 1.5 | Depth of cut ap (mm): 5.5 ~ 15.5 | Grade: NC6315 | Stock: Not marked
RCMH3209M0-HV NC3215PIC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 10.3 | Feed fn (mm/rev): 0.65 ~ 1.5 | Depth of cut ap (mm): 5.5 ~ 15.5 | Grade: NC3215P | Stock: Not marked
RCMH3209M0-HV NC3225PIC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 10.3 | Feed fn (mm/rev): 0.65 ~ 1.5 | Depth of cut ap (mm): 5.5 ~ 15.5 | Grade: NC3225P | Stock: Not marked
